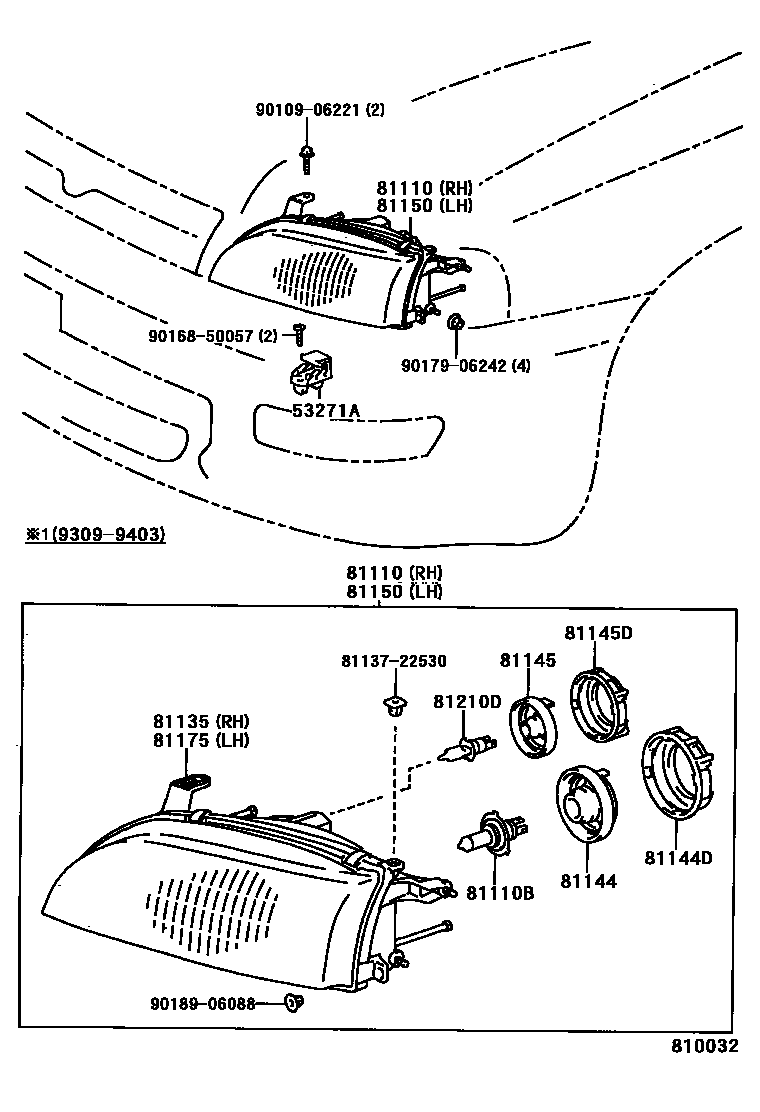

HEADLAMP

53271ABRACKET, HEADLAMP MOUNTING

main53271-12040iST20#199309-199403

sub53271-12060

main53271-12060iST20#199403-199712

81110HEADLAMP ASSY, RH

main81110-2B820iST20#199309-199712

81110BBULB(FOR HEADLAMP, NO.1)

main90981-22004iST20#199309-199712

sub90981-13055

81135UNIT ASSY, HEADLAMP, RH

main81130-2B820iST20#199309-199712

81144COVER, HEADLAMP, NO.1

main90075-99058iST20#199309-199712

81144DCAP, HEADLAMP LOCKING

main90075-99057iST20#199309-199712

81145COVER, HEADLAMP, NO.2

main90075-99072iST20#199309-199712

81145DCAP, HEADLAMP LOCKING NO.2

main90075-99073iST20#199309-199712

81150HEADLAMP ASSY, LH

main81150-2B820iST20#199309-199712

81175UNIT ASSY, HEADLAMP, LH

main81170-2B820iST20#199309-199712

81210DBULB, FOG LAMP

main90981-13027iST20#199309-199505

main90981-13070iST20#199505-199712

sub90981-13039

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9010906221

main90109-06221

9016850057

main90168-50057

9017906242

main90179-06242

9018906088

main90189-06088

16 parts on this diagram · 1 diagram in section
