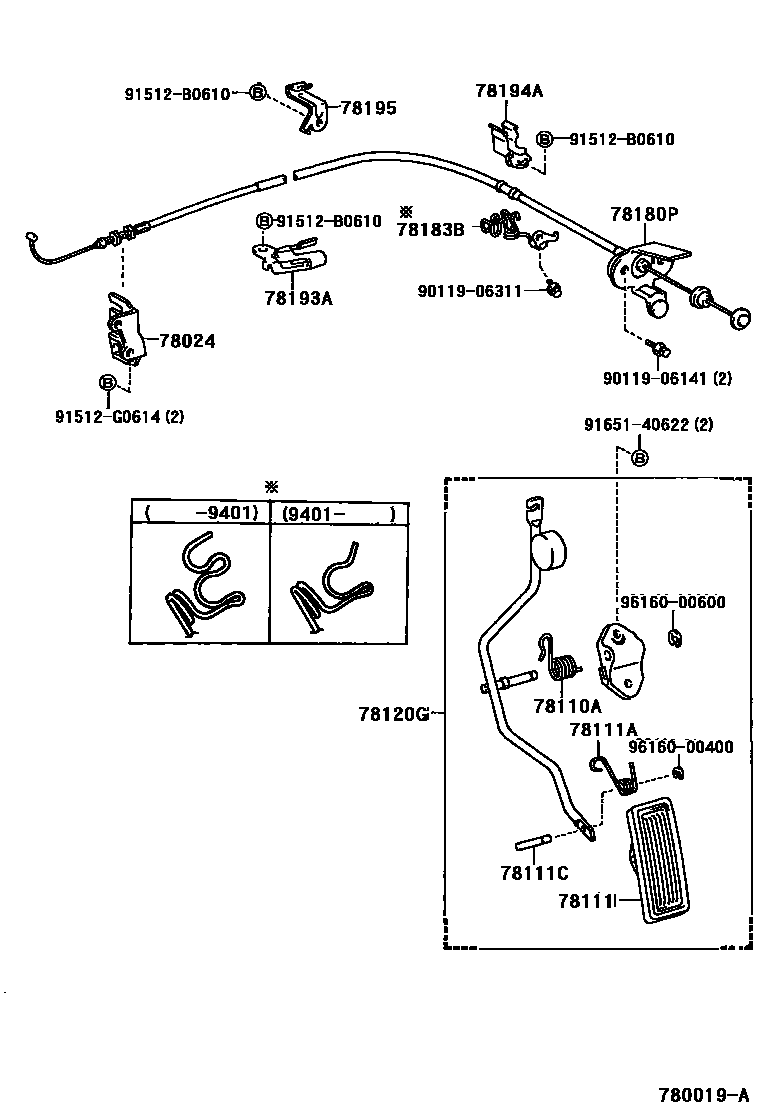

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-20090iST200,201,202,203..180E,180G,200E,200G,TR,TRR,TRX199309-199606

main78024-20140iST202,203..ATM..(200E,200G,TRR,TRX)199309-199606

main78024-44020iST200,202,203..180E,180G,200E,200G199606

main78024-88460iST202,205..200GT,GT4WD,TRG,TRG4199309

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18048iST20#..ATM199309

main90508-26054iST20#..MTM199309

78111PEDAL, ACCELERATOR

main78111-20030iST20#199309-199508

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iST20#199309-199508

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iST20#199309-199508

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20590iST20#..MTM199309-199508

main78120-20600iST20#..ATM199309-199508

main78120-20630iST20#..MTM199508

main78120-20640iST20#..ATM199508

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-2D130iST202,205..200GT,GT4WD199508

main78180-2D250iST202,205..TRG,TRG4199309-199508

main78180-2D270iST202,203..ATM..(TRR,TRX)199309-199402

sub78180-2D320

main78180-2D280iST200,201,202,203..TR,TRR,TRX199309-199508

main78180-2D320iST202,203..ATM..(TRR,TRX)199402-199508

main78180-2D400iST200,202,203..180E,180G,200E,200G199508-199606

main78180-2D420iST202,203..ATM..(200E,200G)199508-199606

main78180-2D640iST200,202,203..180E,180G,200E,200G199606

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20310iST20#199309-199401

main78183-20330iST20#199401

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-88460iST202,205..200GT,GT4WD,TRG,TRG4199309

78194ASUPPORT, ACCELERATOR CONTROL CABLE, NO.4

main78194-88460iST202,205..ATM..(200GT,GT4WD,TRG,TRG4)199309

78195BRACKET, ACCELERATOR LINK

main78195-88460iST202,205..ATM..(200GT,GT4WD,TRG,TRG4)199309

9011906141

main90119-06141

9011906311

main90119-06311

91512B0610

main91512-B0610

91512G0614

main91512-G0614

9165140622

main91651-40622

9616000400

main96160-00400

9616000600

main96160-00600

18 parts on this diagram · 6 diagrams in section
