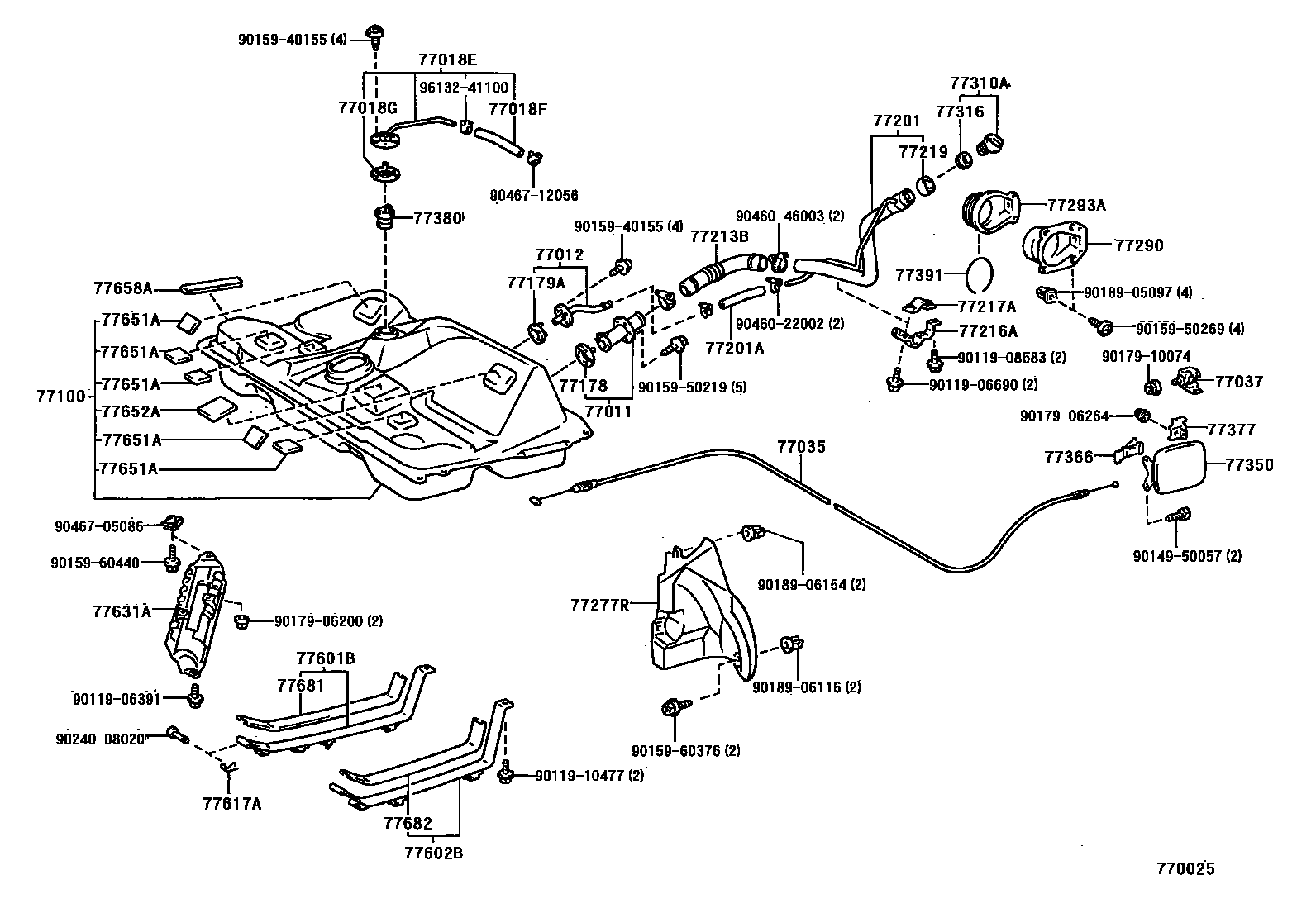

FUEL TANK & TUBE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77012TUBE SUB-ASSY, FUEL TANK BREATHER
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213BHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77219COVER, FUEL TANK FILLER PIPE
77277RPROTECTOR, FUEL TANK FILLER PIPE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77617AUNION, AUXILIARY FUEL BAND
77631APROTECTOR, FUEL TANK, LOWER CENTER
77658APROTECTOR, FUEL TANK EDGE, NO.1
9011906391
main90119-06391
9011906690
main90119-06690
9011908583
main90119-08583
9011910477
main90119-10477
9014950057
main90149-50057
9015940155
main90159-40155
9015950219
main90159-50219
9015950269
main90159-50269
9015960376
main90159-60376
9015960440
main90159-60440
9017906200
main90179-06200
9017906264
main90179-06264
9017910074
main90179-10074
9018905097
main90189-05097
9018906116
main90189-06116
9018906154
main90189-06154
9024008020
main90240-08020
9046022002
main90460-22002
9046046003
main90460-46003
9046705086
main90467-05086
9046712056
main90467-12056
9613241100
main96132-41100
57 parts on this diagram · 4 diagrams in section
