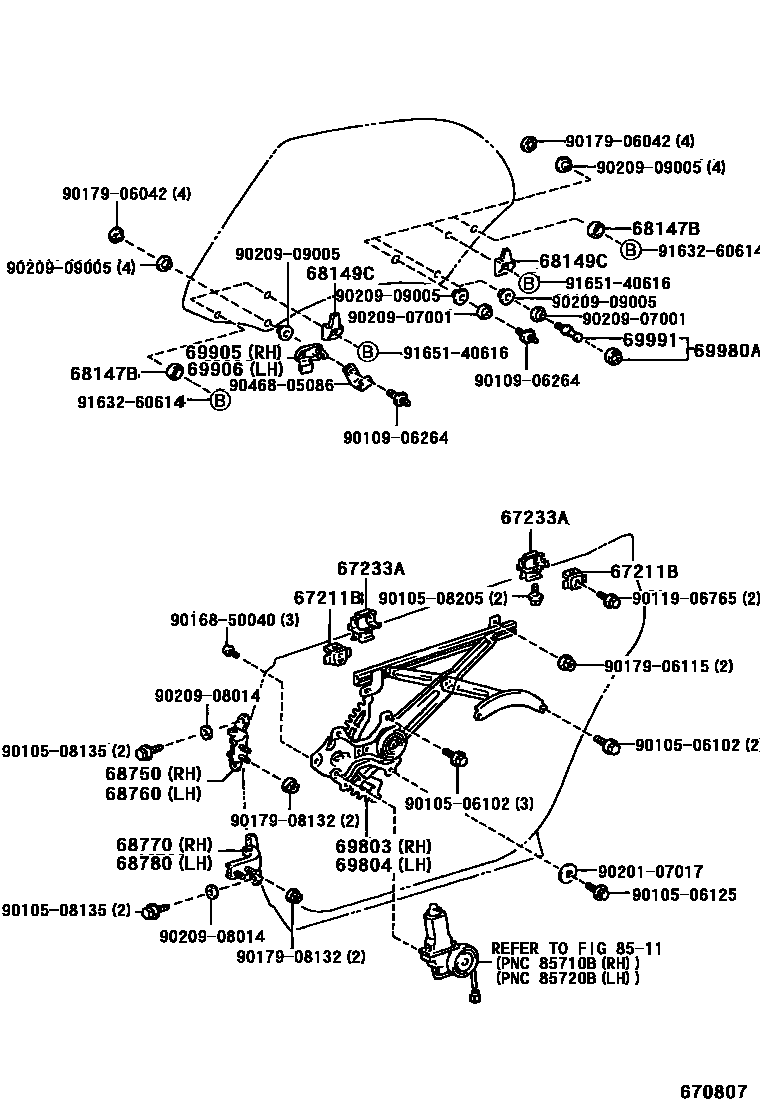

REAR DOOR WINDOW REGULATOR & HINGE
67211BSTOP, REAR DOOR WINDOW, UPPER
67233ASUPPORT, REAR DOOR TRIM
68147BSTOP, REAR DOOR GLASS, UPPER
68149CSTABILIZER, REAR DOOR GLASS MALE
68750HINGE ASSY, REAR DOOR, UPPER RH
68760HINGE ASSY, REAR DOOR, UPPER LH
68770HINGE ASSY, REAR DOOR, LOWER RH
68780HINGE ASSY, REAR DOOR, LOWER LH
69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69905BRACKET SUB-ASSY, REAR DOOR GLASS, RH
69906BRACKET SUB-ASSY, REAR DOOR GLASS, LH
69980AROLLER ASSY, REAR DOOR GLASS GUIDE
69991PIN, REAR DOOR GLASS ROLLER
8511
9010506102
main90105-06102
9010506125
main90105-06125
9010508135
main90105-08135
9010508205
main90105-08205
9010906264
main90109-06264
9011906765
main90119-06765
9016850040
main90168-50040
9017906042
main90179-06042
9017906115
main90179-06115
9017908132
main90179-08132
9020107017
main90201-07017
9020907001
main90209-07001
9020908014
main90209-08014
9020909005
main90209-09005
9046805086
main90468-05086
9163260614
main91632-60614
9165140616
main91651-40616
32 parts on this diagram · 1 diagram in section
