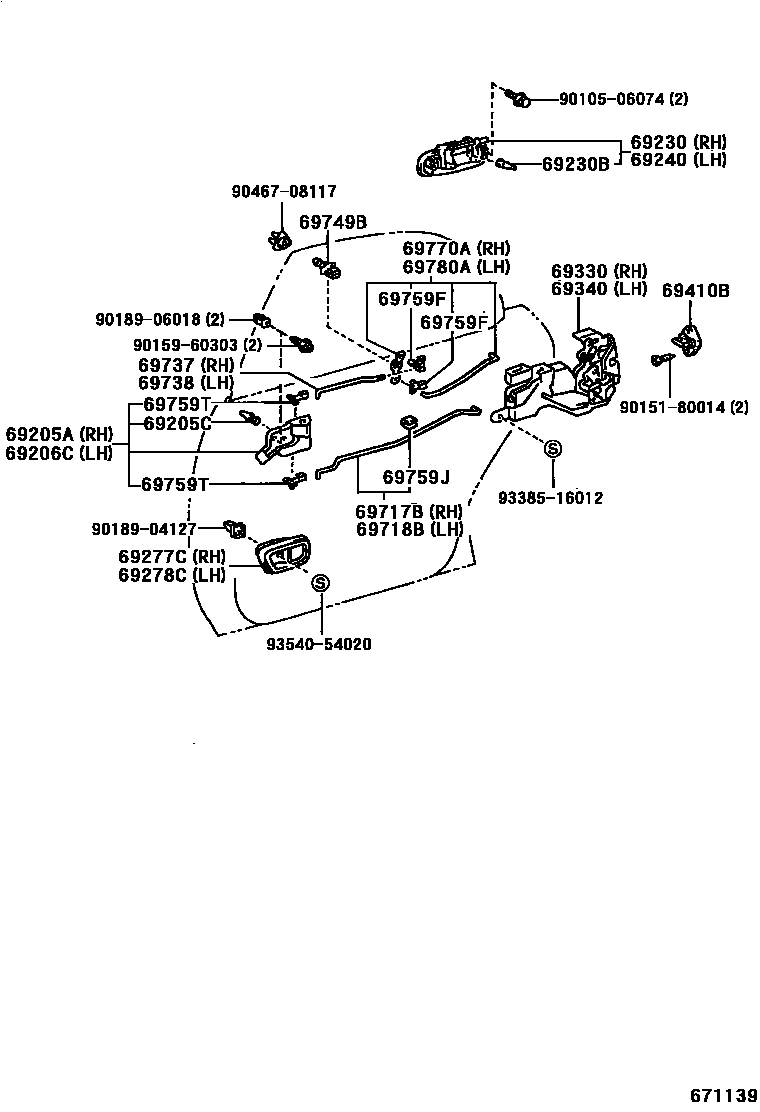

REAR DOOR LOCK & HANDLE
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
sub69230-20240
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
sub69240-20240
69277CBEZEL, REAR DOOR INSIDE HANDLE, RH
69278CBEZEL, REAR DOOR INSIDE HANDLE, LH
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
69737LINK, REAR DOOR INSIDE LOCKING, RH
69738LINK, REAR DOOR INSIDE LOCKING, LH
69749BCLAMP, REAR DOOR LOCK LINK
69759FSNAP, REAR DOOR LOCK CONTROL LINK
69759JSILENCER, DOOR LOCK LINK
69770ALINK ASSY, REAR DOOR INSIDE LOCKING, RH
69780ALINK ASSY, REAR DOOR INSIDE LOCKING, LH
9010506074
main90105-06074
9015180014
main90151-80014
9015960303
main90159-60303
9018904127
main90189-04127
9018906018
main90189-06018
9046708117
main90467-08117
9338516012
main93385-16012
9354054020
main93540-54020
29 parts on this diagram · 1 diagram in section
