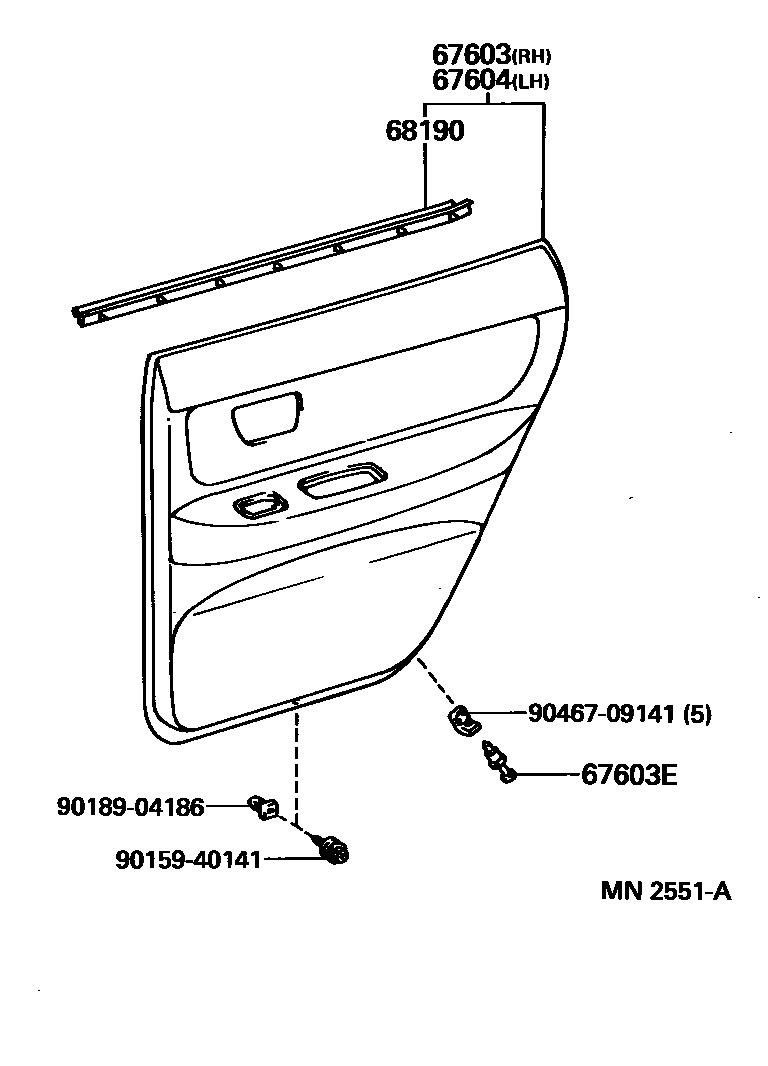

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-2D770-B0iST202..200GT199511-199603

main67630-2D840-B0iST200..TR199407-199508

SHADOW GRAY,TRIM1#

main67630-2D890-B0iST202,203,205..TRG,TRG4,TRR199407-199508

SHADOW GRAY,TRIM1#

main67630-2G020-B0iST200,201,202,203..TRX199407-199508

SHADOW GRAY,TRIM1#

main67630-2G020-K0iST200,201,202,203..TRX199407-199508

TAUPE,TRIM9#

main67630-2G100-B0iST20#..180E,180G,200E,200G,GT4WD199508

SHADOW GRAY,TRIM1#

main67630-2G130-B1iST202..200GT199508

SHADOW GRAY,TRIM1#

main67630-2G140-B0iST200..180E199606-199804

main67630-2G140-B0iST200..TR199504-199508

main67630-2H080-B0iST200,201,202,203..TRX199309-199407

SHADOW GRAY,TRIM1#

sub67630-2G020

main67630-2H080-K0iST200,201,202,203..TRX199309-199407

TAUPE,TRIM9#

sub67630-2G020

main67630-2H090-B0iST200..TR199309-199407

SHADOW GRAY,TRIM1#

sub67630-2D840

main67630-2H100-B0iST202,203,205..TRG,TRG4,TRR199309-199407

SHADOW GRAY,TRIM1#

sub67630-2D890

67603ECLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-22iST20#199408

BLACK,TRIM1#

sub90467-07066

main90467-07066-K0iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

sub90467-07066

main90467-07066-P0iST20#199309-199408

SHADOW GRAY,TRIM1#

sub90467-07066

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-2D760-B0iST202..200GT199511-199603

main67640-2D790-B0iST200..TR199407-199508

SHADOW GRAY,TRIM1#

main67640-2D830-B0iST202,203,205..TRG,TRG4,TRR199407-199508

SHADOW GRAY,TRIM1#

main67640-2G010-B0iST200,201,202,203..TRX199407-199508

SHADOW GRAY,TRIM1#

main67640-2G010-K0iST200,201,202,203..TRX199407-199508

TAUPE,TRIM9#

main67640-2G090-B0iST20#..180E,180G,200E,200G,GT4WD199508

SHADOW GRAY,TRIM1#

main67640-2G110-B1iST202..200GT199508

SHADOW GRAY,TRIM1#

main67640-2G140-B0iST200..180E199606-199804

main67640-2G140-B0iST200..TR199504-199508

main67640-2H040-B0iST200,201,202,203..TRX199309-199407

SHADOW GRAY,TRIM1#

sub67640-2G010

main67640-2H040-K0iST200,201,202,203..TRX199309-199407

TAUPE,TRIM9#

sub67640-2G010

main67640-2H050-B0iST200..TR199309-199407

SHADOW GRAY,TRIM1#

sub67640-2D790

main67640-2H060-B0iST202,203,205..TRG,TRG4,TRR199309-199407

SHADOW GRAY,TRIM1#

sub67640-2D830

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-20280iST20#199309

main68240-20160iST20#199309

9015940141

main90159-40141

9018904186

main90189-04186

9046709141

main90467-09141

7 parts on this diagram · 2 diagrams in section
