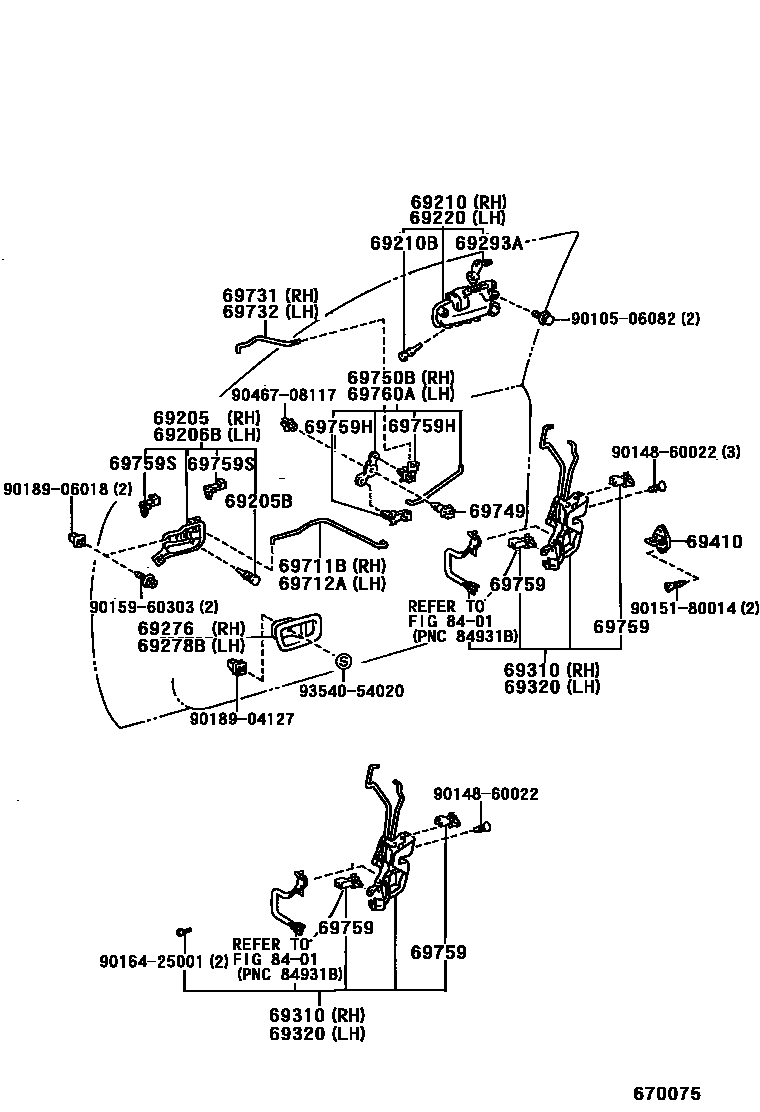

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
sub69210-20320
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
sub69220-20340
69276BEZEL, FRONT DOOR INSIDE HANDLE
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69731LINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
69732LINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
69749CLAMP, FRONT DOOR LOCK LINK
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
8401
9010506082
main90105-06082
9014860022
main90148-60022
9015180014
main90151-80014
9015960303
main90159-60303
9016425001
main90164-25001
9018904127
main90189-04127
9018906018
main90189-06018
9046708117
main90467-08117
9354054020
main93540-54020
32 parts on this diagram · 1 diagram in section
