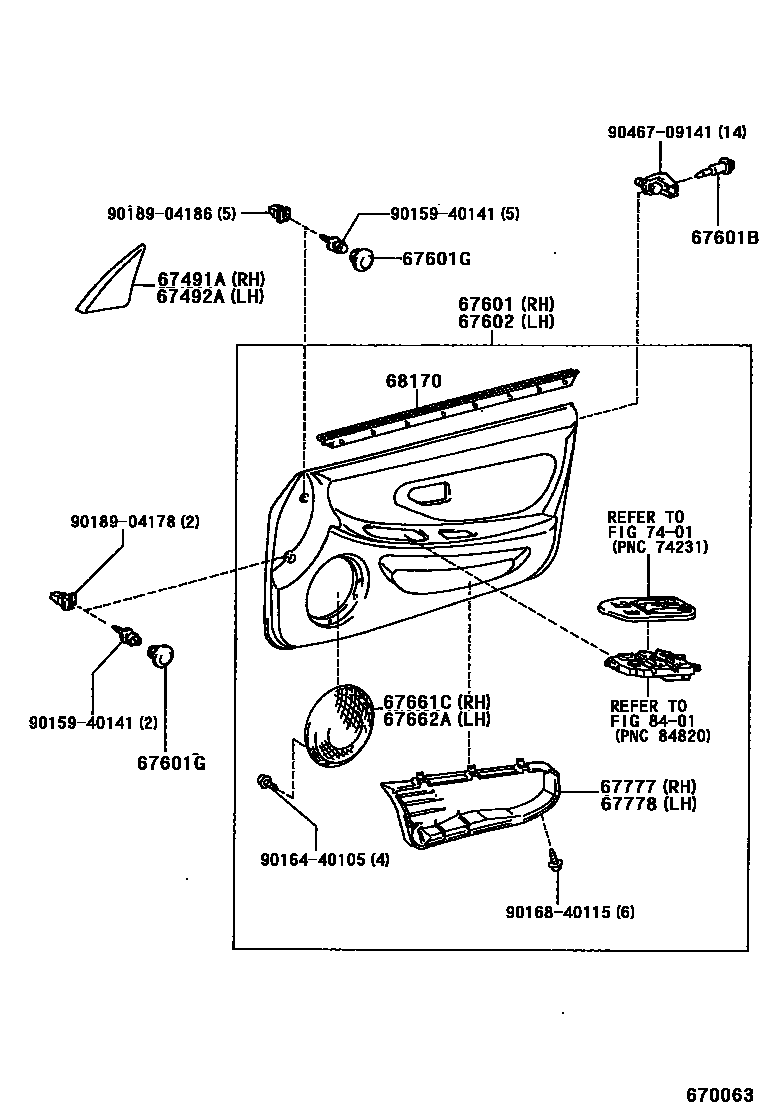

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1��(�-��- ���� ����� ����)

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-20340iST200,201,205;ST202,203..200E,200G,200GT,TRG,TRR199309

main67491-20350iST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX199309

main67491-20350iST200..TR199504-199508

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-20340iST200,201,205;ST202,203..200E,200G,200GT,TRG,TRR199309

main67492-20350iST200..TR199504-199508

main67492-20350iST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX199309

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-2G010-B0iST202,203..200E,200G199508

main67610-2G020-B0iST202..200GT199508

main67610-2G040-B0iST200..TR199504-199508

sub67610-2G041

sub74231-20411

sub84820-20450

sub90164-40103

sub90168-40115

main67610-2G280-B0iST200,201,202,203..TRX199309-199505

SHADOW GRAY,TRIM1#

sub67610-2G281

main67610-2G280-K0iST200,201,202,203..TRX199309-199505

TAUPE,TRIM9#

sub67610-2G281

main67610-2G281-B0iST200,202,203..TRX199505-199508

SHADOW GRAY,TRIM1#

main67610-2G281-K0iST200,202,203..TRX199505-199508

TAUPE,TRIM9#

main67610-2G290-B0iST200,201,202,203..TRX199309-199505

sub67610-2G291

main67610-2G290-K0iST200,201,202,203..TRX199309-199505

sub67610-2G291

main67610-2G291-B0iST200,202,203..TRX199505-199508

main67610-2G291-K0iST200,202,203..TRX199505-199508

main67610-2G300-B0iST200..TR199309-199505

SHADOW GRAY,TRIM1#

sub67610-2G301

main67610-2G301-B0iST200..TR199505-199508

SHADOW GRAY,TRIM1#

sub67610-2G301

main67610-2G310-B0iST202,203,205..TRG,TRG4,TRR199309-199505

SHADOW GRAY,TRIM1#

sub67610-2G311

main67610-2G311-B0iST202,203,205..TRG,TRG4,TRR199505-199508

SHADOW GRAY,TRIM1#

main67610-2G320-B0iST202,205..TRG,TRG4199309-199505

sub67610-2G321

main67610-2G321-B0iST202,205..TRG,TRG4199505-199508

main67610-2G590-B0iST202..200GT199511-199603

main67610-2G670-B0iST200..180E199606-199804

main67650-2D880-B0iST20#..180E,180G,200E,200G,GT4WD199508

SHADOW GRAY,TRIM1#

main67650-2D890-B1iST202..200GT199508

SHADOW GRAY,TRIM1#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07066-22iST20#199408

BLACK,TRIM1#

sub90467-07066

main90467-07066-K0iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

sub90467-07066

main90467-07066-P0iST20#199309-199408

SHADOW GRAY,TRIM1#

sub90467-07066

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-B0iST20#199309

SHADOW GRAY,TRIM1#

sub90950-01800

main90950-01800-K0iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

sub90950-01800

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67050-20080-B0iST202..200GT199511-199603

main67050-20160-B0iST200..180E199606-199804

main67620-2H570-B0iST200..TR199407-199508

SHADOW GRAY,TRIM1#

main67620-2H660-B0iST202,203,205..TRG,TRG4,TRR199407-199508

SHADOW GRAY,TRIM1#

main67620-2H680-B0iST202,205..TRG,TRG4199407-199508

main67620-2H690-B0iST200,201,202,203..TRX199407-199508

SHADOW GRAY,TRIM1#

main67620-2H690-K0iST200,201,202,203..TRX199407-199508

TAUPE,TRIM9#

main67620-2H750-B0iST200,201,202,203..TRX199407-199508

main67620-2H750-K0iST200,201,202,203..TRX199407-199508

main67620-2L240-B0iST200,201,202,203..TRX199309-199407

SHADOW GRAY,TRIM1#

sub67620-2H690

main67620-2L240-K0iST200,201,202,203..TRX199309-199407

TAUPE,TRIM9#

sub67620-2H690

main67620-2L250-B0iST200,201,202,203..TRX199309-199407

sub67620-2H750

main67620-2L250-K0iST200,201,202,203..TRX199309-199407

sub67620-2H750

main67620-2L260-B0iST200..TR199309-199407

SHADOW GRAY,TRIM1#

sub67620-2H570

main67620-2L270-B0iST202,203,205..TRG,TRG4,TRR199309-199407

SHADOW GRAY,TRIM1#

sub67620-2H660

main67620-2L280-B0iST202,205..TRG,TRG4199309-199407

sub67620-2H680

main67620-2L670-B0iST20#..180E,180G,200E,200G,GT4WD199508

SHADOW GRAY,TRIM1#

main67620-2L690-B1iST202..200GT199508

SHADOW GRAY,TRIM1#

main67620-2L710-B0iST202,203..200E,200G199508

main67620-2L730-B0iST202..200GT199508

main67620-2L740-B0iST200..TR199504-199508

67661CBASE, DOOR SPEAKER GRILLE, RH

main67661-20050-B0iST20#199309

SHADOW GRAY,TRIM1#

main67661-20050-K0iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

67662ABASE, DOOR SPEAKER GRILLE, LH

main67661-20050-B0iST20#199309

SHADOW GRAY,TRIM1#

main67661-20050-K0iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

67777POCKET, FRONT DOOR TRIM, RH

main67777-20240-B0iST20#199309

SHADOW GRAY,TRIM1#

main67777-20240-K0iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

67778POCKET, FRONT DOOR TRIM, LH

main67778-20240-B0iST20#199309

SHADOW GRAY,TRIM1#

main67778-20240-K0iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-20410iST20#199309

main68220-20310iST20#199309

7401

8401

9015940141

main90159-40141

9016440105

main90164-40105

9016840115

main90168-40115

9018904178

main90189-04178

9018904186

main90189-04186

9046709141

main90467-09141

19 parts on this diagram · 3 diagrams in section
