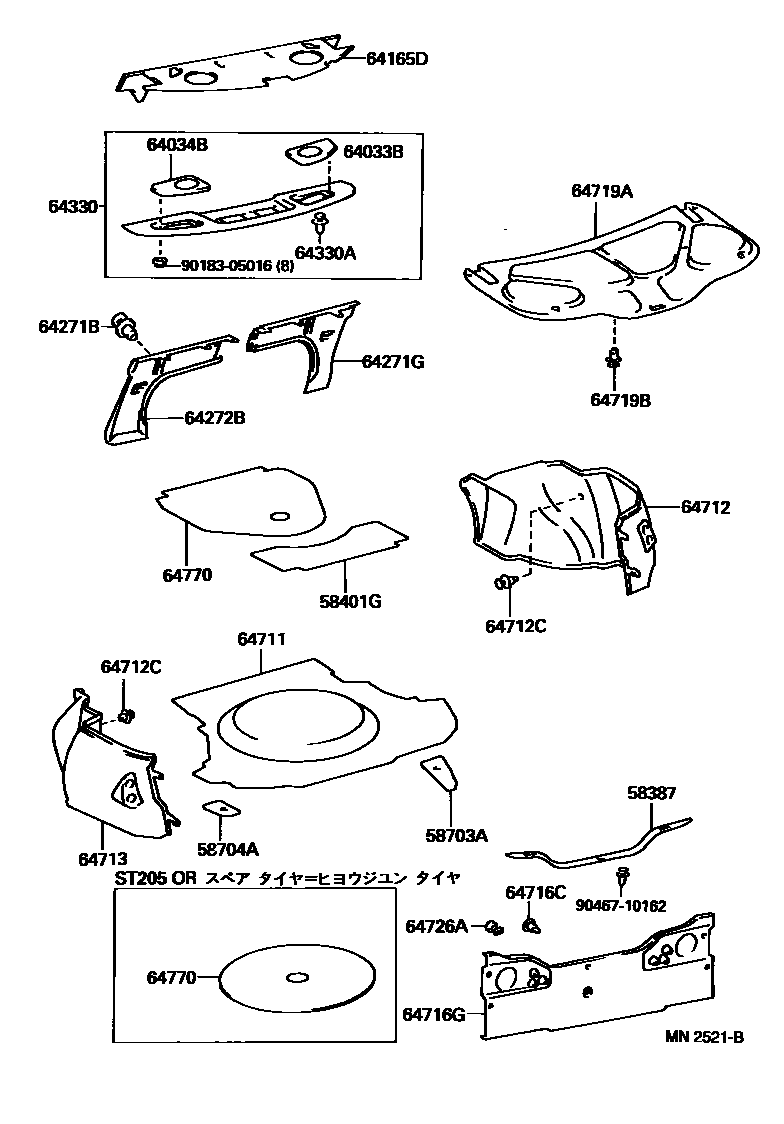

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-20070-C0iST200,201,202,203..TRX199309-199508

BLACK,TRIM1#,9#

58401GBOARD SUB-ASSY, REAR FLOOR, NO.1

main58401-20010iST200,201,202,203199309

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20180iST20#199309

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20150iST20#199309

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64383-20250-B0iST20#199309

SHADOW GRAY,TRIM1#

main64383-20250-K0iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64384-20180-B0iST20#199309

SHADOW GRAY,TRIM1#

main64384-20180-K0iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

64165DCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-20100iST20#199508

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-07121-C0×3iST200,202,203,205..180E,180G,200E,200G,200GT,GT4WD,TR,TRG,TRG4,TRR199309

BLACK,TRIM1#

sub90467-07207

64271GBOARD, ROOM PARTITION, RH

main64271-20280-C0iST200,201,202,203..TRX199309-199508

BLACK,TRIM1#,9#

64272BBOARD, ROOM PARTITION, LH

main64272-20270-C0iST200,201,202,203..TRX199309-199508

BLACK,TRIM1#,9#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-2B890-B0iST20#199309-199508

SHADOW GRAY,TRIM1#

main64330-2B890-K0iST200,201,202,203..TRX199309-199508

TAUPE,TRIM9#

main64330-2B891-B0iST20#199508

SHADOW GRAY,TRIM1#

main64330-2D010-B0iST20#199309-199508

main64330-2D010-K0iST200,201,202,203..TRX199309-199508

main64330-2D011-B0iST20#199508

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06167×3iST20#199309

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-2B040-C0iST200,202,203..TR,TRG,TRR199309-199508

sub64711-2B100

main64711-2B041-C0iST200,202,203199508

main64711-2B050-C0iST200,202,203..180E,180G,200E,200G,200GT,TR,TRG,TRR199309

main64711-2B060-C0iST205199405

main64711-2B070-C0iST205199405

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-20230-C0iST200,201,202,203..TRX199309-199508

BLACK,TRIM1#,9#

main64712-20240-C0iST205199405

BLACK,TRIM1#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-07146×2iST20#199309-199505

main90467-07152-C0×2iST200,202,203..TRX199505-199508

BLACK,TRIM1#,9#

main90467-08188×2iST20#199602

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-20230-C0iST200,201,202,203..TRX199309-199508

BLACK,TRIM1#,9#

main64713-20240-C0iST205199405

BLACK,TRIM1#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-07146iST20#199309-199505

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-20550-C0iST200,201,202,203..TRX199309-199508

BLACK,TRIM1#,9#

main64716-20570-C0iST205199405

BLACK,TRIM1#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-20120-C0iST200,201,202,203..TRX199309-199508

BLACK,TRIM1#,9#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07146×13iST20#199309-199505

main90467-07152-C0×13iST200,202,203..TRX199505-199508

BLACK,TRIM1#,9#

main90467-08188×13iST20#199602

64726ACLIP, LUGGAGE TRIM, REAR

main64726-20020-C0×7iST200,201,202,203..TRX199309-199508

BLACK,TRIM1#,9#

64770COVER ASSY, SPARE WHEEL

main64770-20240iST20#199309

main64770-20270iST200,201,202,203199309

9018305016

main90183-05016

9046710162

main90467-10162

24 parts on this diagram · 1 diagram in section
