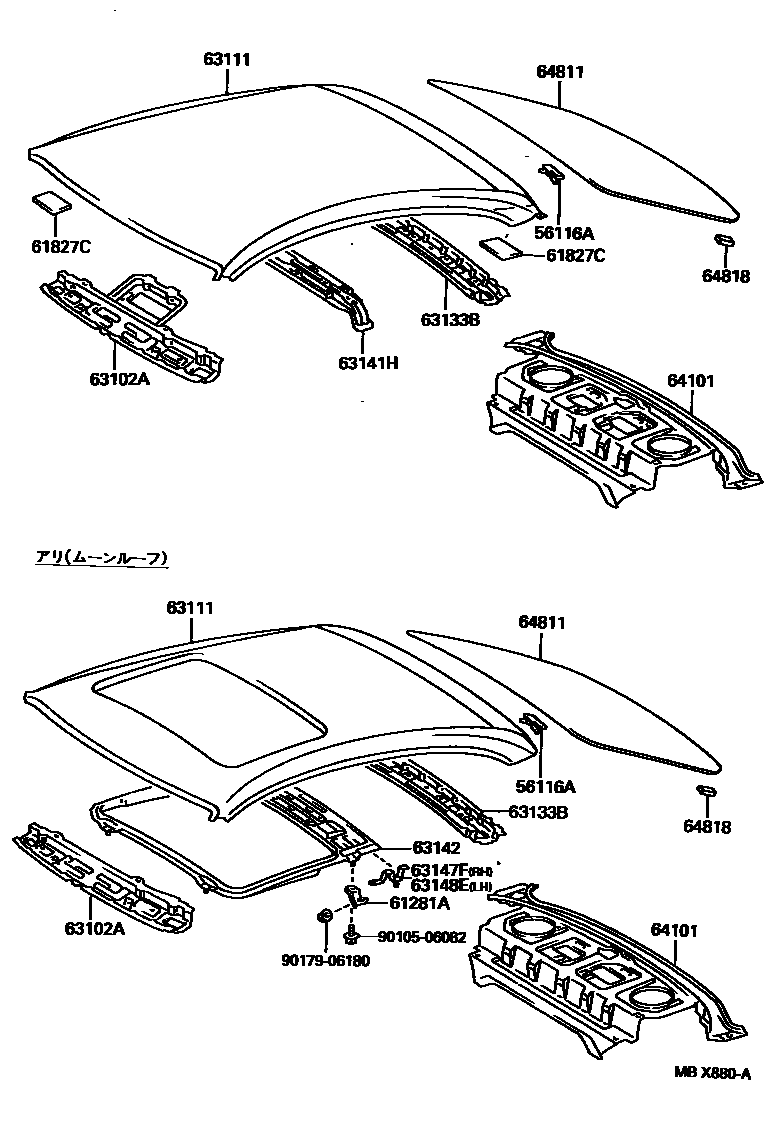

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

56116ASPACER, WINDSHIELD GLASS

main56115-20080iST20#199309

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-20060iST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX199309

main61281-20070iST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX199309

61827CPLATE, NOISE CONTROL, NO.4

main61838-20060iST20#199309

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20300iST20#199309

main63102-20310iST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX199309

63111PANEL, ROOF

main63111-20570iST20#199309

main63111-20580iST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX199309

63133BFRAME, BACK WINDOW

main63133-20240iST20#199309

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-20200iST20#199309-199508

sub63141-20210

main63141-20210iST20#199508

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-20100iST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX199309

63147FBRACKET, ROOF PANEL REINFORCEMENT, RH

main63147-20040iST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX199309

63148EBRACKET, ROOF PANEL REINFORCEMENT, LH

main63148-20020iST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX199309

64101PANEL SUB-ASSY, UPPER BACK

main64101-20830iST20#199309-199508

sub64101-20880

main64101-20880iST20#199508

64811GLASS, BACK WINDOW

main64811-2B890iST20#199309-199508

main64811-2D010iST200..TR199504-199508

main64811-2D010iST20#..TRG,TRG4,TRR,TRX199309-199508

main64811-2D080iST20#199309-199508

sub64811-2D340

main64811-2D090iST20#..TRG,TRG4,TRR,TRX199309-199508

sub64811-2D350

main64811-2D090iST200..TR199504-199508

sub64811-2D350

main64811-2D340iST20#199508

main64811-2D350iST20#199508

main64811-2D902iST20#199309-199508

main64811-2D903iST20#..TRG,TRG4,TRR,TRX199309-199508

main64811-2D904iST20#199309-199508

main64811-2D905iST20#..TRG,TRG4,TRR,TRX199309-199508

main64811-2D910iST20#199508

main64811-2D911iST20#199508

64818SPACER, BACK WINDOW GLASS

main67272-20010iST20#199309

9010506082

main90105-06082

9017906180

main90179-06180

15 parts on this diagram · 2 diagrams in section
