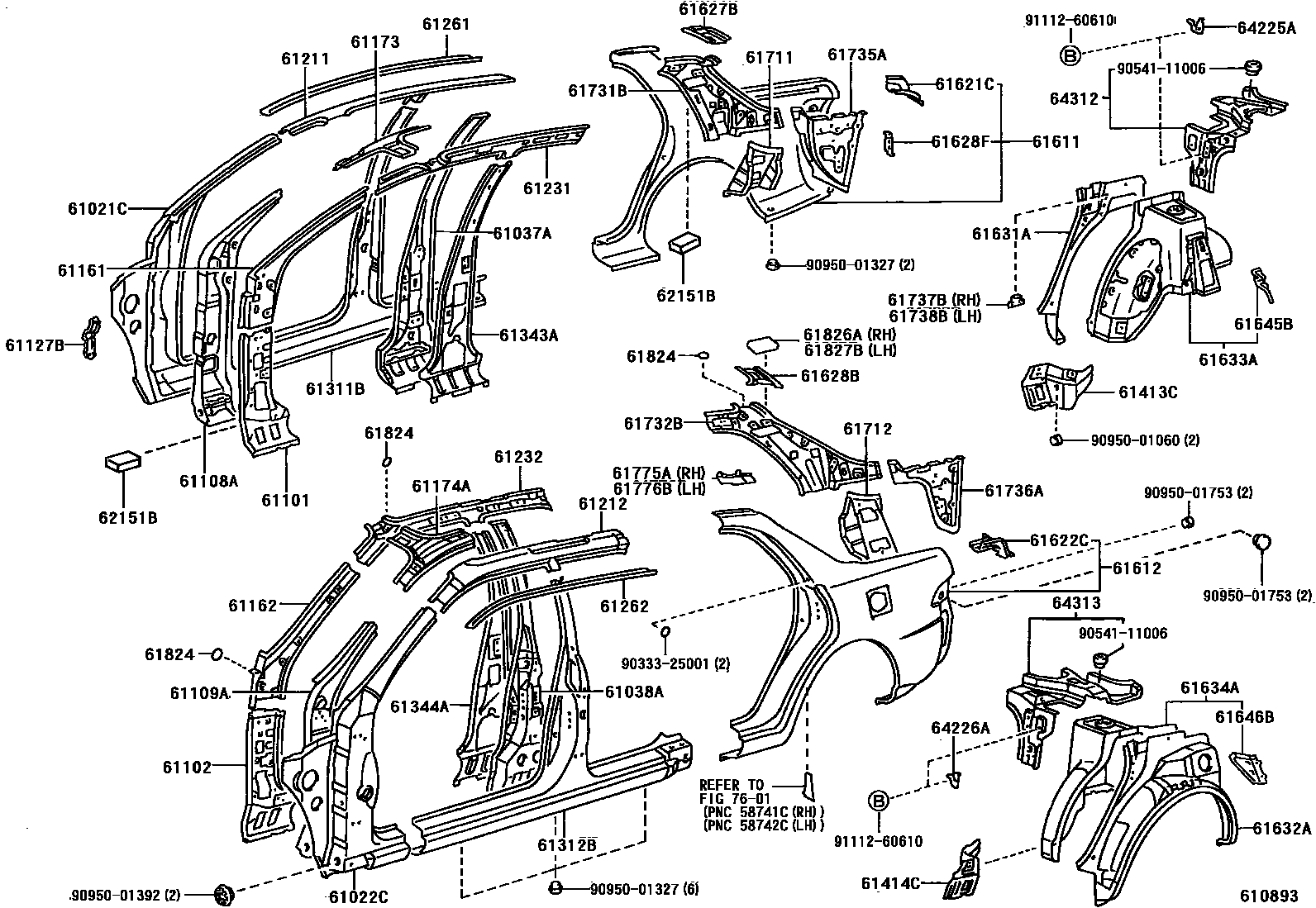

SIDE MEMBER

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61027-20110iST20#199309

main61027-20140iST200..180E199606-199804

main61027-20140iST202,205..200GT,GT4WD199508

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61028-20100iST20#199309

main61028-20120iST202,205..200GT,GT4WD199508

main61028-20120iST200..180E199606-199804

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-20900iST20#199309

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-20900iST20#199309

61101PANEL SUB-ASSY, COWL SIDE, RH

main61101-20270iST20#199309

61102PANEL SUB-ASSY, COWL SIDE, LH

main61102-20230iST20#199309

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-20110iST20#199309

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-20110iST20#199309

61127BREINFORCEMENT, COWL SIDE PANEL, NO.2 RH

main61127-20020iST20#199309

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-20220iST20#199309

61162PILLAR, FRONT BODY, UPPER INNER LH

main61162-20220iST20#199309

61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER

main61173-20100iST20#199309

61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH

main61174-20100iST20#199309

61211RAIL, ROOF SIDE, OUTER RH

main61211-20270iST20#199309

61212RAIL, ROOF SIDE, OUTER LH

main61212-20270iST20#199309

61231RAIL, ROOF SIDE, INNER RH

main61231-20400iST20#199309

61232RAIL, ROOF SIDE, INNER LH

main61232-20390iST20#199309

61261CHANNEL, ROOF DRIP, RH

main61261-20130iST20#199309

61262CHANNEL, ROOF DRIP, LH

main61262-20130iST20#199309

61311BPILLAR, CENTER BODY, OUTER RH

main61311-20270iST20#199309

main61311-20280iST200..180E199606-199804

main61311-20280iST202,205..200GT,GT4WD199508

61312BPILLAR, CENTER BODY, OUTER LH

main61312-20340iST20#199309

main61312-20350iST200..180E199606-199804

main61312-20350iST202,205..200GT,GT4WD199508

61343APILLAR, CENTER BODY, INNER RH

main61343-20140iST20#199309

61344APILLAR, CENTER BODY, INNER LH

main61344-20140iST20#199309

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-20100iST20#199309

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-20110iST20#199309

61611PANEL, QUARTER, RH

main61601-2B909iST20#199309

main61601-2D902iST200..180E199606-199804

main61601-2D902iST202,205..200GT,GT4WD199508

61612PANEL, QUARTER, LH

main61602-2D909iST20#199309

main61602-2D914iST200..180E199606-199804

main61602-2D914iST202,205..200GT,GT4WD199508

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-20230iST20#199309

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-20230iST20#199309

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-20150iST20#199309

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-20170iST20#199309

61628FBRACKET, REAR COMBINATION LAMP HARNESS CLAMP

main90959-01496iST20#199309-199508

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-20290iST20#199309

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-20280iST200,201,202,203199309

main61632-20290iST205199405

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-20922iST200,201,202,203199309

main61607-20923iST205199405

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-20917iST200,201,202,203199309

main61608-20918iST205199405

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-20130iST200,201,202,203199309

main61645-20140iST205199405

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-20130iST200,201,202,203199309

main61646-20140iST205199405

61711PANEL, ROOF SIDE, OUTER RH

main61711-20170iST20#199309

61712PANEL, ROOF SIDE, OUTER LH

main61712-20170iST20#199309

61731BPANEL, ROOF SIDE, INNER RH

main61731-20320iST20#199309

61732BPANEL, ROOF SIDE, INNER LH

main61732-20320iST20#199309

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-20240iST20#199309

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-20220iST20#199309

61737BPANEL, ROOF SIDE, INNER LOWER RH

main61737-20100iST20#199309

61738BPANEL, ROOF SIDE, INNER LOWER LH

main61738-20080iST20#199309

61775AGUIDE, ROOF SIDE DRAIN HOSE, NO.1 RH

main61775-20050iST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX199309

61776BGUIDE, ROOF SIDE DRAIN HOSE, NO.1 LH

main61776-20050iST20#..180E,180G,200E,200G,200GT,GT4WD,TRG,TRG4,TRR,TRX199309

61824PLATE, NOISE CONTROL, NO.1

main61824-12040iST20#199309

main61824-12040iST20#199309

main61824-20120iST20#199309-199501

main61824-20140iST20#199501

61826APLATE, NOISE CONTROL, NO.3

main61825-20160iST20#199501

main61826-20100iST20#199309-199501

sub61825-20160

61827BPLATE, NOISE CONTROL, NO.4

main61825-20160iST20#199501

main61827-20030iST20#199309-199501

sub61825-20160

62151BPAD, COWL SIDE SILENCER

main62151-20160iST20#199505

64225AHANGER, REAR SEAT CUSHION SUPPORT

main64225-20020iST20#199309

64226AHANGER, REAR SEAT CUSHION SUPPORT, NO.2

main64226-20050iST20#199309

64312BRACKET, PACKAGE TRAY, RH

main64301-20020iST20#199309

64313BRACKET, PACKAGE TRAY, LH

main64302-20030iST20#199309

7601

9033325001

main90333-25001

9054111006

main90541-11006

9095001060

main90950-01060

9095001327

main90950-01327

9095001392

main90950-01392

9095001753

main90950-01753

9111260610

main91112-60610

64 parts on this diagram · 1 diagram in section
