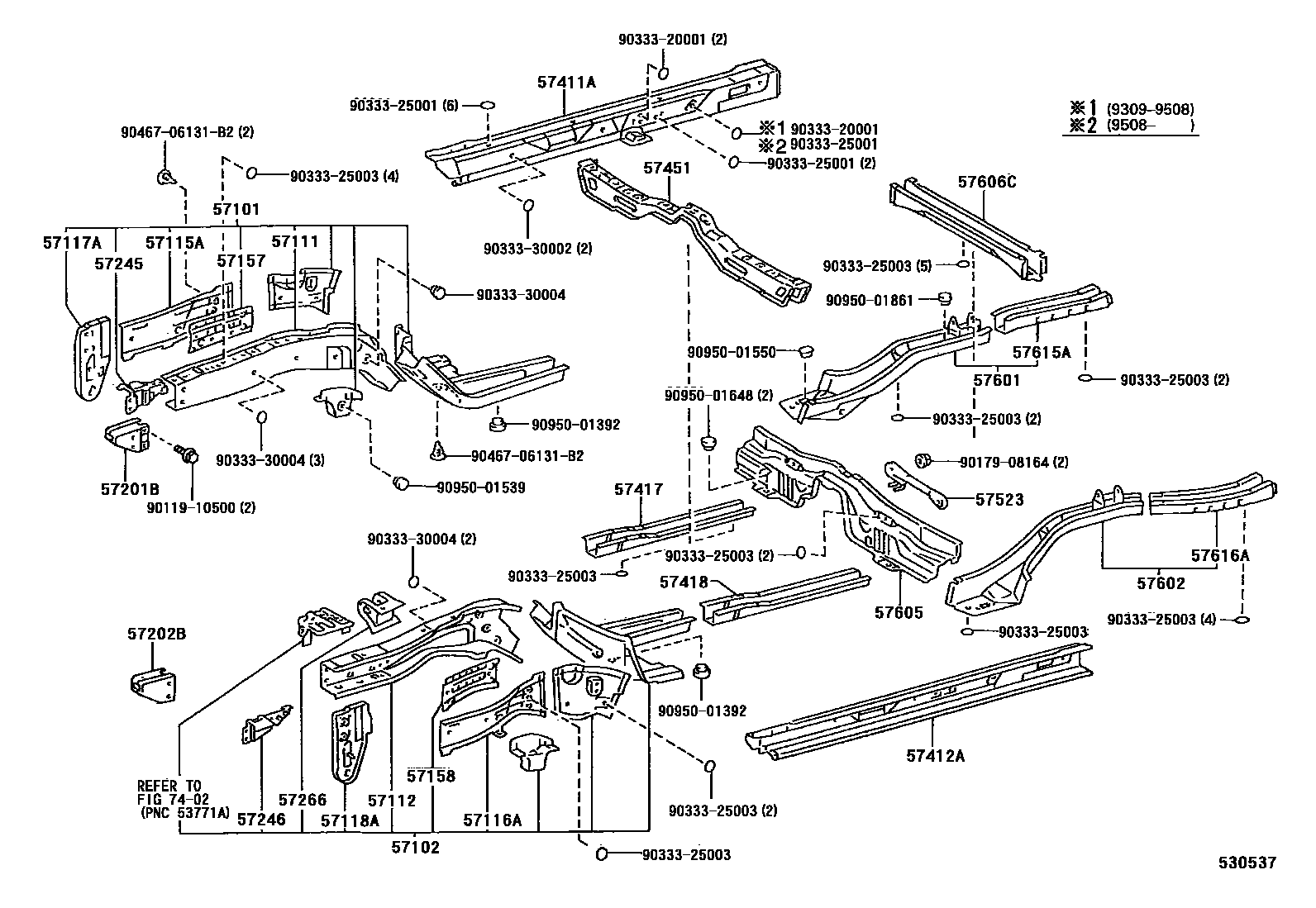

FLOOR SIDE MEMBER
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117AREINFORCEMENT, FRONT BUMPER MOUNTING
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH
57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH
57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
57245REINFORCEMENT, FRONT SIDE MEMBER, NO.9 RH
57246REINFORCEMENT, FRONT SIDE MEMBER, NO.9 LH
57266REINFORCEMENT, TOUSION BAR ANCHOR ARM, LH
57417REINFORCEMENT, FRONT FLOOR UNDER, RH
57418REINFORCEMENT, FRONT FLOOR UNDER, LH
57451MEMBER, FRONT FLOOR CROSS
57523BRACE, CENTER FLOOR CROSSMEMBER
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605CROSSMEMBER SUB-ASSY, REAR
sub57605-20160
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
7402
9011910500
main90119-10500
9017908164
main90179-08164
9033320001
main90333-20001
9033325001
main90333-25001
9033325003
main90333-25003
9033330002
main90333-30002
9033330004
main90333-30004
9046706131B2
main90467-06131B2
9095001392
main90950-01392
9095001539
main90950-01539
9095001550
main90950-01550
9095001648
main90950-01648
9095001861
main90950-01861
41 parts on this diagram · 2 diagrams in section
