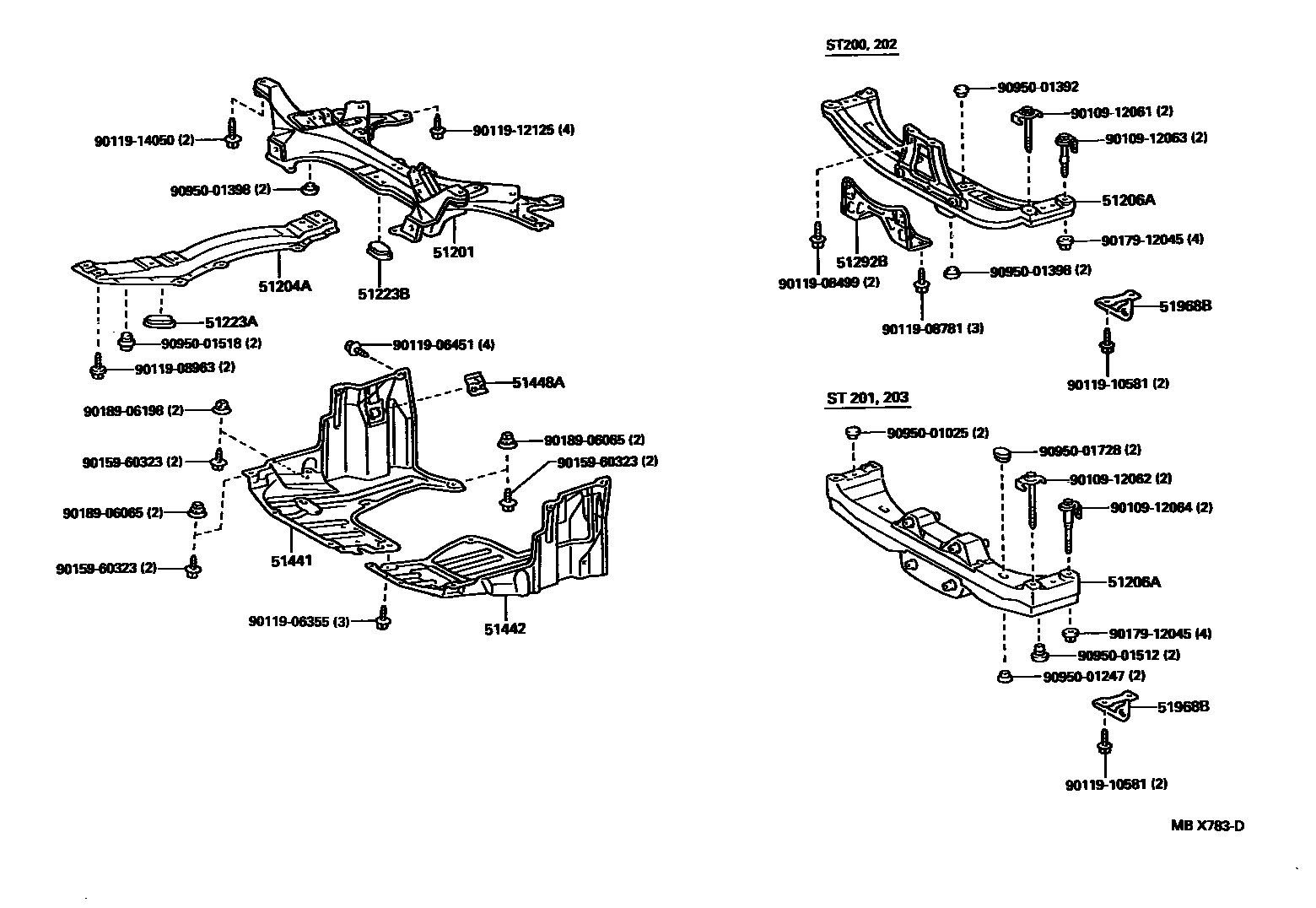

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20300iST200,201,202,203199309

main51201-20310iST202,205..200GT,GT4WD,TRG,TRG4199309

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20130iST20#199309

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20011iST205199405

main51206-20031iST201,203199309-199712

main51206-20070iST200,202199309

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20030iST20#199309

51223BCOVER, ENGINE MOUNTING HOLE

main51223-20050iST20#199309

51292BBRACKET, FRAME CROSSMEMBER, REAR

main51292-20020iST202..200GT,TRG199309-199804

51441COVER, ENGINE UNDER, NO.1

main51441-20360iST20#199309-199605

sub51441-20400

main51441-20400iST20#199605

51442COVER, ENGINE UNDER, NO.2

main51442-20460iST20#..MTM199309

main51442-20470iST20#..ATM199309

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iST20#199309-199605

51968BHOOK, TRANSPORT, REAR LH

main51968-20110iST200,201,202,203199309

main51968-20120iST205199405

9010912061

main90109-12061

9010912062

main90109-12062

9010912063

main90109-12063

9010912064

main90109-12064

9011906355

main90119-06355

9011906451

main90119-06451

9011908499

main90119-08499

9011908781

main90119-08781

9011908963

main90119-08963

9011910581

main90119-10581

9011912125

main90119-12125

9011914050

main90119-14050

9015960323

main90159-60323

9017912045

main90179-12045

9018906065

main90189-06065

9018906198

main90189-06198

9095001025

main90950-01025

9095001247

main90950-01247

9095001392

main90950-01392

9095001398

main90950-01398

9095001512

main90950-01512

9095001518

main90950-01518

9095001728

main90950-01728

33 parts on this diagram · 2 diagrams in section
