FRONT SPRING & SHOCK ABSORBER

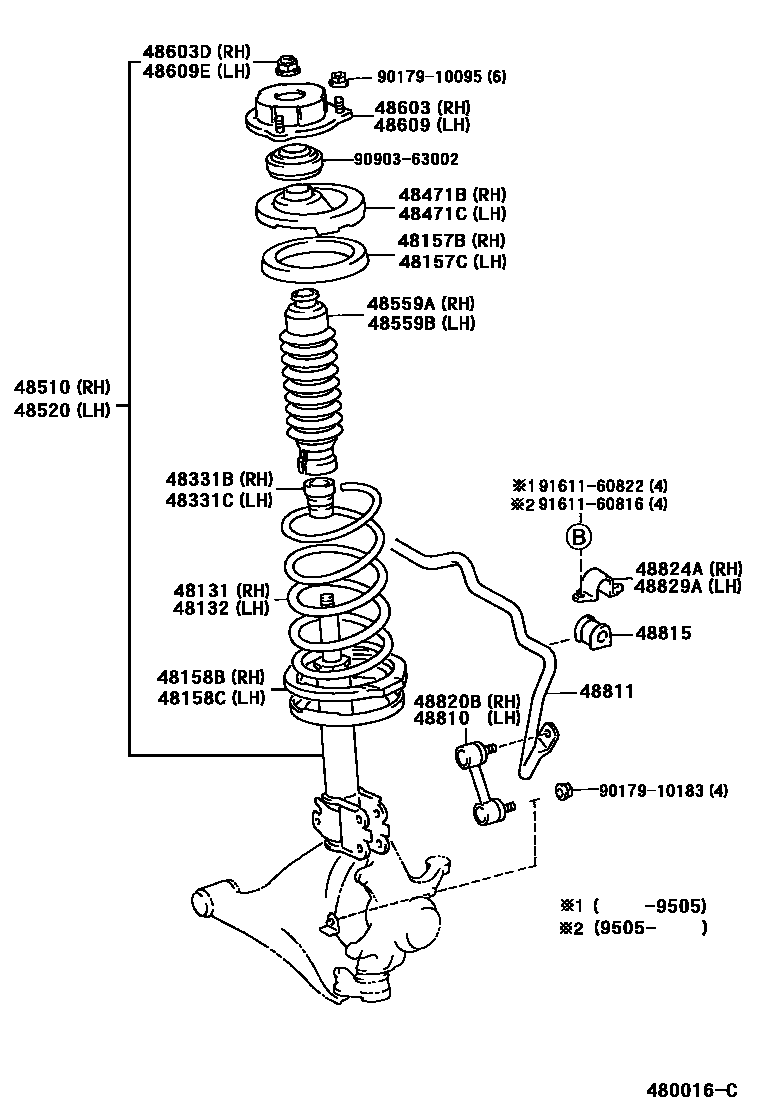

Parts diagram
48131SPRING, FRONT COIL, RH
main48131-2S680i199309
main48131-2S700i199309
sub48131-2S680
main48131-2S740i199309
main48131-2S760i199309
sub48131-2S740
main48131-2T050i199309
main48131-2T060i199309
main48131-2T170i199405
main48131-2T180i199405
48132SPRING, FRONT COIL, LH
main48131-2S660i199309
main48131-2S680i199309
main48131-2S720i199311
main48131-2S740i199309
main48131-2T050i199309
main48131-2T150i199309
main48131-2T160i199405
main48131-2T170i199405
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-20150i199309
main48157-20160i199309
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-20150i199309
main48157-20160i199309
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-20100i199309
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-20100i199309
48331BBUMPER, FRONT SPRING, RH
main48331-20110i199309
48331CBUMPER, FRONT SPRING, LH
main48331-20110i199309
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48044-20050i199309
main48471-20060i199309
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48044-20050i199309
main48471-20060i199309
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-29235i199309-199801
sub48510-29236
main48510-29236i199801-199804
sub48510-80219
main48510-29245i199309-199801
sub48510-29246
main48510-29246i199801-199804
sub48510-80219
main48510-29265i199309-199312
sub48510-29266
main48510-29266i199312-199804
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-29075i199309-199801
sub48520-29076
main48520-29076i199801
sub48520-80045
main48520-29085i199309-199801
sub48520-29086
main48520-29086i199801
sub48520-80045
main48520-29105i199309-199312
sub48520-29106
main48520-29106i199312
48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1
main48559-20080i199309
48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1
main48559-20080i199309
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-20240i199309
main48609-20390i199309-199409
sub48609-20401
main48609-20401i199409
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
main90179-14015i199309
main94182-11400i199309
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-20240i199309
main48609-20390i199309-199409
sub48609-20401
main48609-20401i199409
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
main90179-14015i199309
main94182-11400i199309
48810LINK ASSY, FRONT STABILIZER, LH
main48820-20060i199309
main48820-33010i199309
48811BAR, STABILIZER, FRONT
main48811-20840i199309
main48811-20860i199309
main48811-20880i199405
main48811-2B090i199309
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-20030i199309
main48815-20260i199309
main48815-20270i199405
main48815-30040i199309
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-20060i199309
main48820-33010i199309
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-12040i199309
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-12040i199309
9017910095
main90179-10095
9017910183
main90179-10183
9090363002
main90903-63002
9161160816
main91611-60816
9161160822
main91611-60822

29 parts on this diagram · 2 diagrams in section
