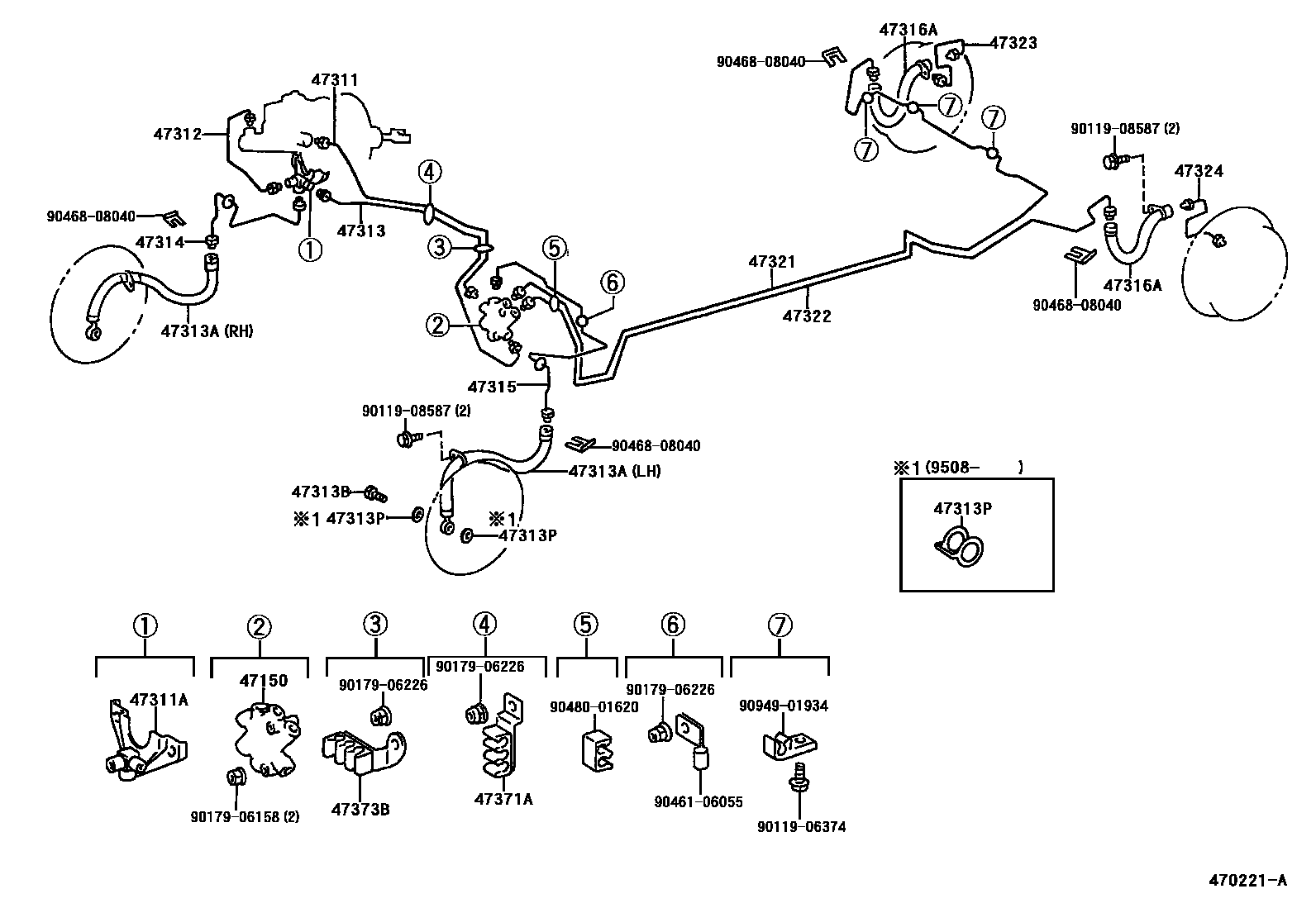

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1��(ABS) 0005 1��(ABS) 0006 1��(ABS) 0007 1��(ABS) 0008 1��(ABS) 0009 1��(ABS) 0010 1��(ABS) 0011 1��(ABS)

47150VALVE ASSY, PROPORTIONING

main47150-12050iST202..200GT,TRG199412-199606

sub47150-12230

main47150-12060iST200;ST202..200GT,TRG199412-199606

sub47150-12270

main47150-12160iST200;ST202..200GT,TRG199412

main47150-16040iST205199412-199606

sub47150-12260

main47150-16050iST202,203..200E,200G,TRR,TRX199412-199606

main47150-20240iST202,203..200E,200G,TRR,TRX199412

main47150-20250iST205199412

main47150-20280iST202..200GT,TRG199412

main47150-20330iST202,203..TRR,TRX199311-199412

sub47150-16050

main47150-20340iST205199405-199412

sub47150-16040

main47150-20350iST200,201;ST202..TRG199309-199412

sub47150-12060

main47150-20360iST202..TRG199309-199412

sub47150-12050

main47150-20370iST202..TRG199309-199412

sub47150-20280

main47150-20380iST202,203..TRR,TRX199309-199412

sub47150-20240

main47150-20390iST205199405-199412

sub47150-20250

main47150-20400iST200,201;ST202..TRG199309-199412

sub47150-12160

47311TUBE, FRONT BRAKE, NO.1

main47311-2B070iST200,201199309-199606

main47311-2B080iST202,203,205199309-199606

main47311-2B100iST20#199309-199606

main47311-2B140iST20#199606-199804

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10171iST20#199309-199606

47312TUBE, FRONT BRAKE, NO.2

main47312-20320iST20#199503-199606

main47312-20340iST20#199309-199503

sub47312-20320

47313TUBE, FRONT BRAKE, NO.3

main47313-20680iST200,201199309-199606

main47313-20690iST202,203,205199309-199606

main47313-20710iST20#199309-199606

main47313-20740iST20#199606

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02761iST200,201,202,203199309-199508

sub90947-02847

main90947-02762iST200,201,202,203199309-199508

sub90947-02848

main90947-02763iST202..TRG199309-199312

sub90947-02789

main90947-02766iST202..TRG199309-199312

sub90947-02790

main90947-02789iST202,205..TRG,TRG4199312-199508

sub90947-02849

main90947-02790iST202,205..TRG,TRG4199312-199508

sub90947-02850

main90947-02847iST200,202,203199508

main90947-02848iST200,202,203199508

main90947-02849iST202,205..200GT,GT4WD199508

main90947-02850iST202,205..200GT,GT4WD199508

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iST20#199309-199503

main90401-10058iST20#199503

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-30010iST20#199309-199508

main47389-50020iST20#199508

47314TUBE, FRONT BRAKE, NO.4

main47314-20570iST200,201199309-199606

main47314-20580iST202,203,205199309-199606

main47314-20600iST20#199309-199606

main47314-20630iST20#199606

47315TUBE, FRONT BRAKE, NO.5

main47315-20630iST20#199309-199606

main47315-20650iST20#199309

47316TUBE, FRONT BRAKE, NO.6

main47316-20550iST20#199309-199606

main47316-20580iST20#199606

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02769iST202,203199309-199508

sub90947-02852

main90947-02770iST200,201199309-199508

sub90947-02851

main90947-02851iST200199508

main90947-02852iST202,203199508

47321TUBE, REAR BRAKE, NO.1

main47321-20380iST200,201,202,203199309

main47321-20390iST205199405

47322TUBE, REAR BRAKE, NO.2

main47322-20490iST200,201,202,203199309

main47322-20500iST205199405

47323TUBE, REAR BRAKE, NO.3

main47323-20150iST200,201199309

47324TUBE, REAR BRAKE, NO.4

main47324-20150iST200,201199309

47371ACLAMP, BRAKE TUBE, NO.1

main47371-20440iST20#199309-199606

main47371-20480iST20#199606

main47371-20490iST20#199309-199606

47373BCLAMP, BRAKE TUBE, NO.3

main47371-20480iST20#199309-199606

main47371-20520iST20#199309-199606

main47371-20570iST20#199606

9011906374

main90119-06374

9011908587

main90119-08587

9017906158

main90179-06158

9017906226

main90179-06226

9046106055

main90461-06055

9046808040

main90468-08040

9048001620

main90480-01620

9094901934

main90949-01934

26 parts on this diagram · 11 diagrams in section
