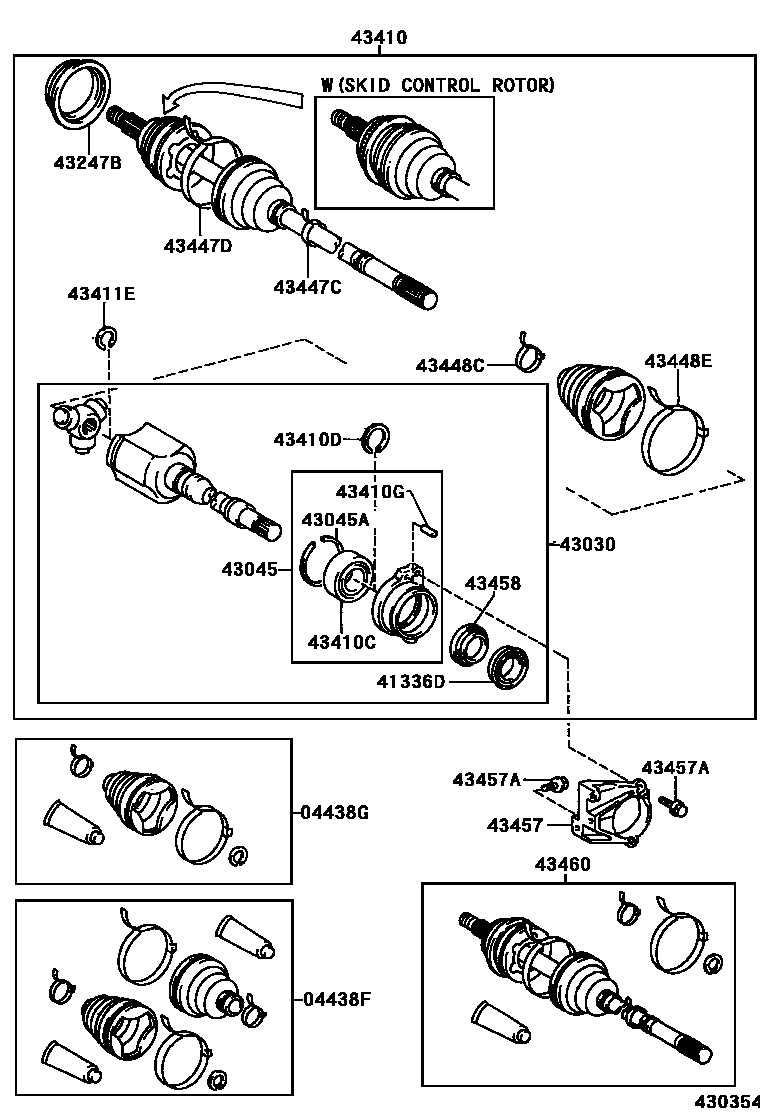

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0004 1RH 0006 1RH,��(�-��-�������������) 0007 1LH 0008 1LH 0010 1LH 0012 1RH 0013 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-20130iST200,201199309-199804

sub04438-20131

main04438-20150iST202,203..200E,200G,TRR,TRX199309-199804

sub04438-20151

main04438-20160iST202..200GT,TRG199309-199804

main04438-20180iST205199405-199804

sub04438-12301

main04438-20190iST202..MTM..TRG199309-199508

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-20081iST202..200GT,TRG199309-199804

main04438-20120iST200,201199309-199804

sub04438-20121

main04438-20140iST202,203..200E,200G,TRR,TRX199309-199804

sub04438-20420

main04438-20170iST205199405-199804

sub04438-32231

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iST202..MTM..TRG199309-199508

main41336-20011iST200,201,202,203199309

sub41336-20050

main41336-20040iST205199405

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-20030iST200,201199309

sub43030-32060

main43030-20040iST202,203..200E,200G,TRR,TRX199309

main43030-20060iST202..MTM..TRG199309-199508

main43030-32010iST202..200GT,TRG199309

main43403-12050iST205199405

43045CASE SUB ASSY, DRIVE SHAFT BEARING

main43045-20010iST200,201,202,203199309

43045ARING, SNAP (FOR CASE SUB ASSY, DRIVE SHAFT BEARING)

main96153-00680iST200,201,202,203199309

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iST20#199309

main43247-33010iST20#199309-199606

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-20550iST205199405-199606

sub43410-20551

sub90178-22001

main43410-20590iST205199405-199709

sub43410-20591

sub90178-22001

main43410-20591iST205199709

sub43410-20592

main43410-20610iST200,201199309-199709

sub43410-20611

sub90178-22001

main43410-20611iST200199709

sub43410-20612

main43410-20670iST202,203..200E,200G,TRR,TRX199309-199606

sub43410-20671

sub90178-22001

main43410-20680iST202,203..200E,200G,TRR,TRX199309-199712

sub43410-20681

sub90178-22001

main43410-20681iST202..200E,200G199712-199805

sub43410-20682

main43410-20690iST202..MTM..TRG199309-199508

sub43410-20691

sub90178-22001

main43410-20700iST202..MTM..TRG199309-199508

sub43410-20701

sub90178-22001

main43410-20720iST200,201199309-199606

sub43410-20721

sub90178-22001

main43410-20730iST202..200GT,TRG199309-199606

sub43410-20731

sub90178-22001

main43410-20730iST202..MTM..200GT199606-199608

sub43410-20731

sub90178-22001

main43410-20740iST202..200GT,TRG199309-199709

sub43410-20741

sub90178-22001

main43410-20741iST202..200GT199709-199712

sub43410-20742

main43410-20742iST202..200GT199712

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36001iST200,201,202,203199309

sub90363-36004

sub90363-36010

main90363-41001iST202..MTM..TRG199309-199508

43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)

main90520-33008iST200,201,202,203199309

main90520-38015iST202..MTM..TRG199309-199508

43410GPIN, STRAIGHT (FOR FRONT DRIVE SHAFT)

main90250-06003iST200,201,202,203199309

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-22005iST200,201,205199309

main90520-25034iST202..200GT,TRG199309

main90520-26048iST202,203..200E,200G,TRR,TRX199309

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16030iST205199709-199804

main42345-16030iST200,201,205199309-199709

main42345-16030iST200,201,205199309-199804

main42345-16040iST200,201,205199309-199804

main42345-16050iST202,203..200E,200G,TRR,TRX199309-199804

main42345-16060iST202,203..200E,200G,TRR,TRX199309-199804

main90949-01108iST202..200GT,TRG199309-199804

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-16040iST200,201,205199309-199804

main42345-16060iST202,203..200E,200G,TRR,TRX199309-199804

main90949-01107iST202..200GT,TRG199309-199804

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16010iST200,201,205199309-199804

main42345-16040iST200,201,205199309-199804

main42345-16050iST202,203..200E,200G,TRR,TRX199309-199804

main42345-16090iST202,203..200E,200G,TRR,TRX199309-199804

main90949-01108iST202..200GT,TRG199309-199804

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-16040iST200,201,205199309-199804

main42345-30010iST202,203..200E,200G,TRR,TRX199309-199804

main42346-22010iST202..200GT,TRG199309-199804

43457BRACKET, DRIVE SHAFT BEARING

main43457-20040iST200,201,202,203199309

main43457-20050iST202..MTM..TRG199309-199508

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10202iST20#199309-199401

sub90105-10361

main90105-10202iST202..MTM..TRG199309-199401

sub90105-10361

main90105-10285iST202..MTM..TRG199401-199508

sub90105-10361

main90105-10285iST200,201,202,203199401

sub90105-10361

main90119-10461iST202..MTM..TRG199309-199508

43458COVER, FRONT DRIVE SHAFT DUST

main43458-12010iST202..MTM..TRG199309-199508

main43458-20011iST200,201,202,203199309

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-29325iST202,203..200E,200G,TRR,TRX199309-199712

sub43470-29326

sub90178-22001

main43470-29326iST202..200E,200G199712-199804

sub43470-29327

main43470-29335iST200,201199309-199709

sub43470-29336

sub90178-22001

main43470-29336iST200199709-199804

sub43470-29337

main43470-29345iST205199405-199606

sub43470-29346

sub90178-22001

main43470-29355iST205199405-199709

sub43470-29356

sub90178-22001

main43470-29356iST205199709-199804

sub43470-29357

main43470-29365iST202,203..200E,200G,TRR,TRX199309-199606

sub43470-29366

sub90178-22001

main43470-29375iST200,201199309-199606

sub43470-29376

sub90178-22001

main43470-29385iST202..200GT,TRG199309-199606

sub43470-29386

sub90178-22001

main43470-29385iST202..MTM..200GT199606-199608

sub43470-29386

sub90178-22001

main43470-29395iST202..200GT,TRG199309-199709

sub43470-29396

sub90178-22001

main43470-29396iST202..200GT199709-199712

sub43470-29397

main43470-29397iST202..200GT199712-199804

main43470-29405iST202..MTM..TRG199309-199508

sub43470-29406

sub90178-22001

main43470-29415iST202..MTM..TRG199309-199508

sub43470-29416

sub90178-22001

20 parts on this diagram · 9 diagrams in section
