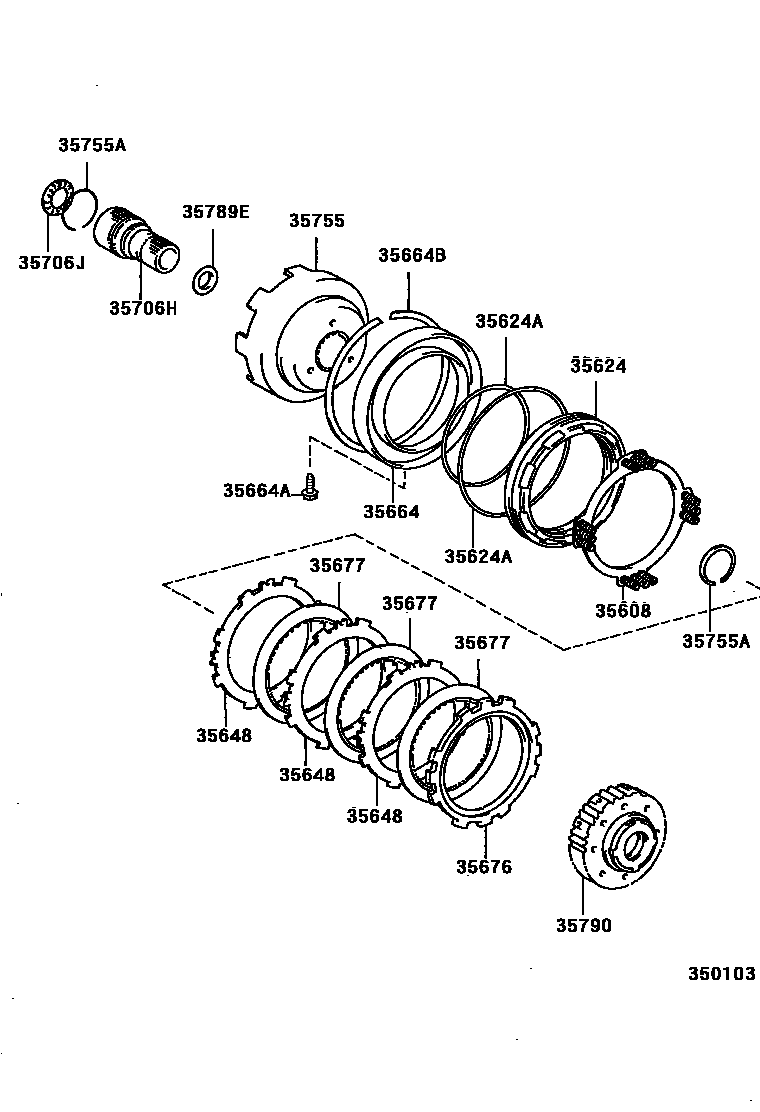

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35624PISTON, 2ND BRAKE
35624ARING, O (FOR 2ND BRAKE PISTON)
35648PLATE, CLUTCH (FOR 2ND BRAKE)
35664CYLINDER, 2ND BRAKE
35664ABOLT (FOR 2ND BRAKE CYLINDER)
35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)
35676FLANGE, BRAKE (FOR 2ND BRAKE)
sub35676-12030
35677DISC, CLUTCH (FOR 2ND BRAKE)
35706HGEAR SUB-ASSY, PLANETARY SUN
35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)
35755DRUM, SUN GEAR INPUT
35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)
35789ERACE, THRUST BEARING (FOR PLANETARY SUN GEAR)
35790CLUTCH ASSY, 1 WAY
15 parts on this diagram · 1 diagram in section
