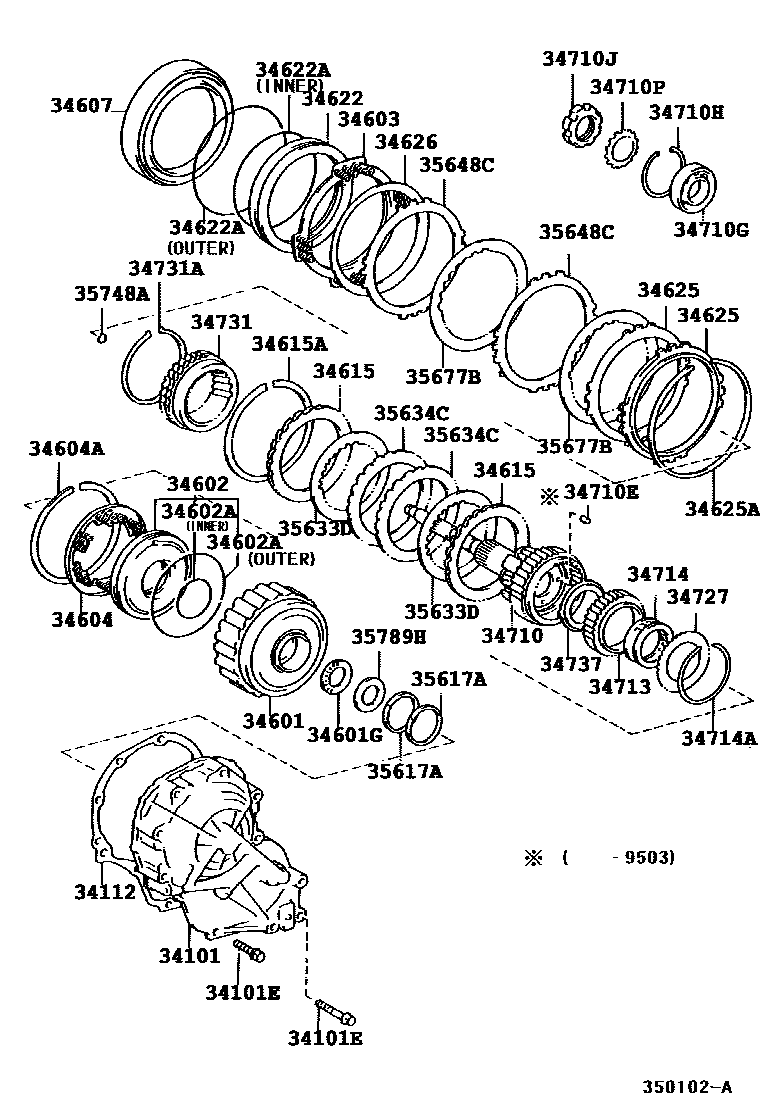

OVERDRIVE GEAR (ATM)

0001 1A140E 0002 1A540H

34101CASE SUB-ASSY, OVERDRIVE

main34101-20021iST200,201,202,203..ATM199309-199804

main34101-32040iST205..ATM199405-199505

sub34101-32041

sub34115-20021

main34101-32041iST205..ATM199505-199511

sub34101-32042

sub90949-03043

main34101-32042iST205..ATM199511-199804

34101EBOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING)

main90105-08056iST205..ATM199405-199804

main90105-08103iST20#..ATM199309-199804

main90105-08167iST200,201,202,203..ATM199309-199804

main90105-08283iST200,201,202,203..ATM199309-199804

34112GASKET, OVERDRIVE CASE

main34112-32030iST200,201,202,203..ATM199309-199804

main34112-32040iST205..ATM199405-199611

sub34112-32041

main34112-32041iST205..ATM199611-199804

34601DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34601-20010iST200,201,202,203..ATM199309-199804

main34601-32021iST205..ATM199405-199804

34601GBEARING,THRUST NEEDLE ROLLER(FOR OVERDRIVE DIRECT CLUTCH)

main90374-28009iST20#..ATM199309-199404

sub90374-28013

main90374-28013iST20#..ATM199404-199804

34602PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH

main34602-20010iST200,201,202,203..ATM199309-199804

main34602-32020iST205..ATM199405-199804

34602ARING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON)

main90301-57188iST20#..ATM199309-199804

main90301-99016iST20#..ATM199309-199804

34603SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN

main34603-20010iST205..ATM199405-199704

main34603-20020iST202,203..ATM199309-199804

main34603-32020iST200,201..ATM199309-199604

main34603-33030iST200,202,203..ATM..(180E,180G,200E,200G)199606-199804

main34603-45010iST205..ATM199704-199804

34604SPRING SUB-ASSY, OVERDRIVE CLUTCH RETURN

main34604-20010iST200,201,202,203..ATM199309-199804

main34604-32010iST205..ATM199405-199804

34604ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH RETURN SPRING)

main90521-99051iST200,201,202,203..ATM199309-199804

main90521-99060iST205..ATM199405-199804

34607DRUM SUB-ASSY, OVERDRIVE BRAKE

main34607-32010iST205..ATM199405-199804

main34607-32020iST200,201,202,203..ATM199309-199804

34615FLANGE, OVERDRIVE CLUTCH

main34615-20010iST200,201,202,203..ATM199309-199804

main34615-32010iST205..ATM199405-199602

sub34615-33020

main34615-33020iST205..ATM199602-199804

34615ARING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE)

main90520-99037iST200,202,203..ATM199704-199804

main90521-99001iST200,201,202,203..ATM199309-199704

main90521-99058iST205..ATM199405-199804

34622PISTON, OVERDRIVE BRAKE

main34622-20010iST205..ATM199405-199704

main34622-20020iST202,203..ATM199309-199804

main34622-32020iST200,201..ATM199309-199604

main34622-33030iST200,202,203..ATM..(180E,180G,200E,200G)199606-199804

main34622-45010iST205..ATM199704-199804

34622ARING, O (FOR OVERDRIVE BRAKE PISTON)

main90301-99043iST20#..ATM199309-199804

main90301-99044iST205..ATM199405-199804

main90301-99057iST200,201,202,203..ATM199309-199804

34625FLANGE, OVERDRIVE BRAKE, NO.1

main34625-20010iST200,201..ATM199309-199604

main34625-32020iST205..ATM199309-199606

main34625-33010iST205..ATM199602-199704

main35648-32040iST202..ATM..(200GT,TRG)199309-199804

34625ARING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE)

main90521-99050iST200,201,202,203..ATM199309

34626PLATE, OVERDRIVE BRAKE CUSHION

main34626-20011iST20#..ATM..(180E,180G,200E,200G,GT4WD,TR,TRG4,TRR,TRX)199309-199804

main34626-20020iST202..ATM..(200GT,TRG)199309-199804

34710GEAR ASSY, OVERDRIVE PLANETARY

main34710-20021iST200,201,202,203..ATM199309-199503

sub34710-20022

main34710-20022iST200,202,203..ATM199503-199804

main34710-32031iST205..ATM199405-199804

34710EPLUG, STRAIGHT(FOR OVERDRIVE PLANETARY GEAR)

main90334-03001iST200,201,202,203..ATM199309-199503

34710GBEARING, RADIAL BALL(FOR OVERDRIVE PLANETARY GEAR)

main90363-40024iST200,201,202,203..ATM199309-199804

main90363-40053iST205..ATM199405-199804

34710HRING, HOLE SNAP(FOR OVERDRIVE PLANETARY GEAR BEARING)

main90521-76003iST200,201,202,203..ATM199309-199804

main90521-78003iST205..ATM199405-199804

34710JNUT(FOR OVERDRIVE PLANETARY GEAR)

main90179-40005iST20#..ATM199309-199804

34710PWASHER(FOR OVERDRIVE PLANETARY GEAR)

main90209-40001iST20#..ATM199309-199804

34713RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE)

main34713-32010iST20#..ATM199309-199804

34714CLUTCH, 1 WAY(FOR OVERDRIVE)

main34714-32010iST200,201,202,203..ATM199309-199804

main34714-32021iST205..ATM199405-199804

34714ARING, HOLE SNAP(FOR 1 WAY CLUTCH)

main90521-93002iST20#..ATM199309-199804

34727PLATE, RETAINING (FOR OVERDRIVE)

main34727-32010iST200,201,202,203..ATM199309-199804

main34727-32020iST205..ATM199405-199804

34731GEAR, OVERDRIVE PLANETARY RING

main34731-32010iST200,201,202,203..ATM199309-199804

main34731-32022iST205..ATM199405-199804

34731ARING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR)

main90521-99008iST200,201,202,203..ATM199309-199804

main90521-99059iST205..ATM199405-199804

34737WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.3

main34737-20011iST200,201,202,203..ATM199309-199804

main34737-33010iST205..ATM199405-199804

35617ARING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE)

main35617-16010iST20#..ATM199309-199804

35633DDISC, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main35633-20010iST200,201,202,203..ATM199309-199804

main35633-33030iST205..ATM199405-199804

35634CPLATE, CLUTCH (FOR OVERDRIVE DIRECT CLUTCH)

main34615-20010iST205..ATM199405-199804

main35634-20010iST200,201,202,203..ATM199309-199804

35648CPLATE, CLUTCH (FOR OVERDRIVE BRAKE)

main35648-20010iST200,201..ATM199309-199804

main35648-32040iST205..ATM199405-199804

35677BDISC, CLUTCH (FOR OVERDRIVE BRAKE)

main35677-20010iST200,201,202,203..ATM..(180E,180G,200E,200G,TR,TRR,TRX)199309-199605

sub35677-33070

main35677-20030iST202..ATM..(200GT,TRG)199309-199804

main35677-33010iST205..ATM199405-199804

main35677-33070iST200,202,203..ATM..(180E,180G,200E,200G)199605-199804

35748ARING, INTERMEDIATE SHAFT OIL SEAL (FOR OVERDRIVE)

main35748-32010iST20#..ATM199309-199804

35789HRACE, THRUST BEARING (FOR OVERDRIVE CASE)

main35789-20020iST20#..ATM199309-199804
