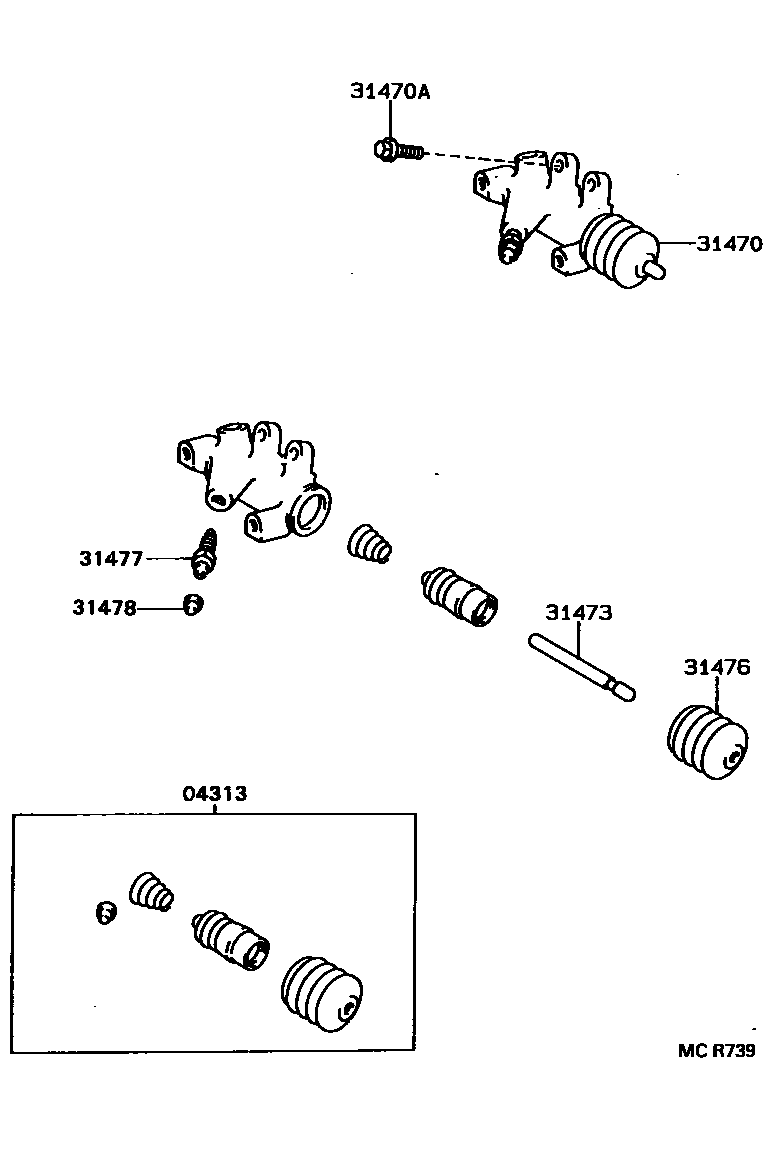

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iST20#..MTM199309-199401

main04313-17010iST20#..MTM199401

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-20200iST202,205..MTM..(200GT,GT4WD,TRG,TRG4)199309

main31470-32032iST200,201,202,203..MTM..(180E,180G,200E,200G,TR,TRR,TRX)199309

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60825iST202,205..MTM..(GT4WD,TRG,TRG4)199309

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iST20#..MTM199401

main31473-32010iST20#..MTM199309-199401

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iST20#..MTM199309

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iST20#..MTM199309

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iST20#..MTM199309

7 parts on this diagram · 2 diagrams in section
