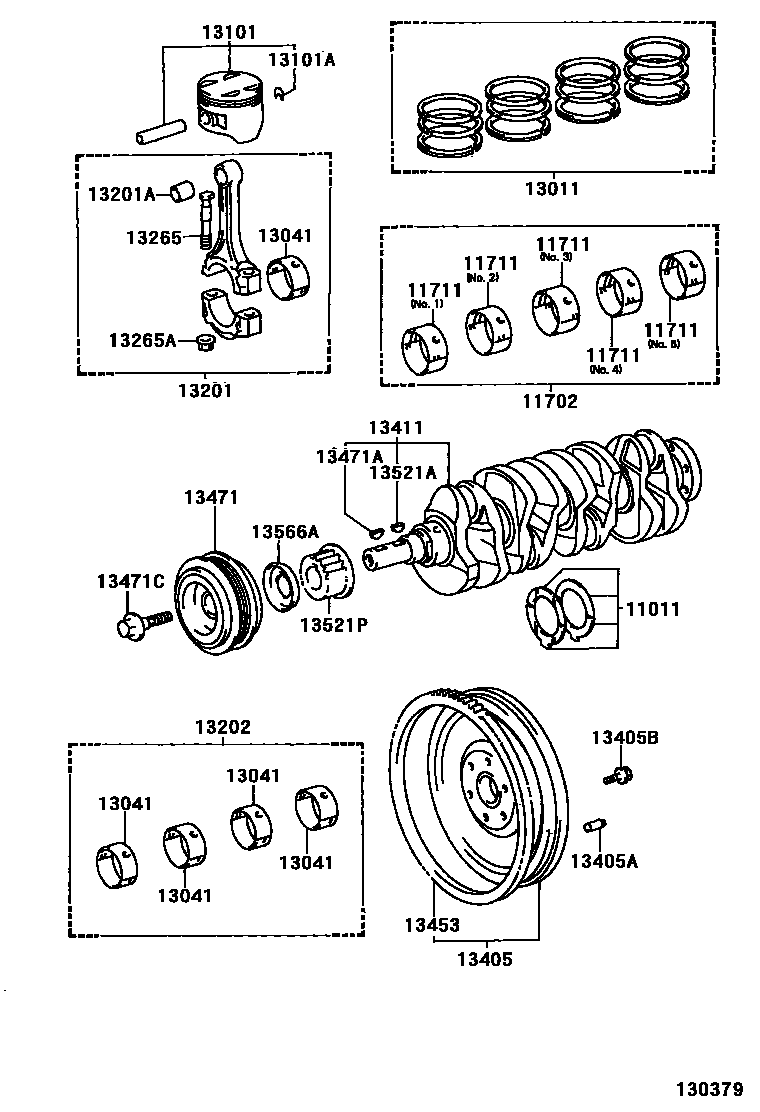

CRANKSHAFT & PISTON

0001 1 0003 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-74020i3S#,4SFE..ST20#199309-199804

sub11011-74030

11702BEARING SET, CRANKSHAFT

main11704-63021i3SFE,4SFE..ST200,201,202,203199309

sub11704-63022

main11704-88361i3SGE..ST202,205199309

sub11704-88570

11711BEARING, CRANKSHAFT

main11071-63020-01i3SFE,4SFE..ST200,201,202,203199309

sub11071-63021

main11071-63020-02i3SFE,4SFE..ST200,201,202,203199309

sub11071-63021

main11071-63020-03i3SFE,4SFE..ST200,201,202,203199309

sub11071-63021

main11071-63020-04i3SFE,4SFE..ST200,201,202,203199309

sub11071-63021

main11071-63020-05i3SFE,4SFE..ST200,201,202,203199309

sub11071-63021

main11071-88360-01i3SGE..ST202,205199309

sub11071-88570

main11071-88360-02i3SGE..ST202,205199309

sub11071-88570

main11071-88360-03i3SGE..ST202,205199309

sub11071-88570

main11071-88360-04i3SGE..ST202,205199309

sub11071-88570

main11071-88360-05i3SGE..ST202,205199309

sub11071-88570

main11701-63021-01i3SFE,4SFE..ST200,201,202,203199309

MARK 1,NO.1,2,4,5

sub11701-63022

main11701-63021-02i3SFE,4SFE..ST200,201,202,203199309

MARK 2,NO.1,2,4,5

sub11701-63022

main11701-63021-03i3SFE,4SFE..ST200,201,202,203199309

MARK 3,NO.1,2,4,5

sub11701-63022

main11701-63021-04i3SFE,4SFE..ST200,201,202,203199309

MARK 4,NO.1,2,4,5

sub11701-63022

main11701-63021-05i3SFE,4SFE..ST200,201,202,203199309

MARK 5,NO.1,2,4,5

sub11701-63022

main11701-88460-01i3SGE..ST202,205199309

MARK 1,NO.1,2,4,5

sub11701-88570

main11701-88460-02i3SGE..ST202,205199309

MARK 2,NO.1,2,4,5

sub11701-88570

main11701-88460-03i3SGE..ST202,205199309

MARK 3,NO.1,2,4,5

sub11701-88570

main11701-88460-04i3SGE..ST202,205199309

MARK 4,NO.1,2,4,5

sub11701-88570

main11701-88460-05i3SGE..ST202,205199309

MARK 5,NO.1,2,4,5

sub11701-88570

13011RING SET, PISTON

main13011-74072i3SFE..ST202,203199309-199606

main13011-74121i4SFE..ST200,201199309

main13011-74360i3SFE..ST202,203199606-199609

sub13011-74361

main13011-74361i3SFE..ST202,203199609

main13011-88480i3SGE..ST202,205199309

main13013-74072i3SFE..ST202,203199309-199606

main13013-74121i4SFE..ST200,201199309

main13013-74360i3SFE..ST202,203199606-199609

sub13013-74361

main13013-74361i3SFE..ST202,203199609

main13013-88480i3SGE..ST202,205199309

main13014-74121i4SFE..ST200,201199309

13041BEARING, CONNECTING ROD

main13041-74030-01i3SFE,4SFE..ST200,201,202,203199309-199608

MARK 1

sub13041-74040

main13041-74030-02i3SFE,4SFE..ST200,201,202,203199309-199608

MARK 2

sub13041-74040

main13041-74030-03i3SFE,4SFE..ST200,201,202,203199309-199608

MARK 3

sub13041-74040

main13041-74040-01i3SFE,4SFE..ST200,202,203199608

MARK 1

sub13041-74041

main13041-74040-02i3SFE,4SFE..ST200,202,203199608

MARK 2

sub13041-74041

main13041-74040-03i3SFE,4SFE..ST200,202,203199608

MARK 3

sub13041-74041

main13041-88360-01i3SGE..ST202,205199309

MARK 1

main13041-88360-02i3SGE..ST202,205199309

MARK 2

main13041-88360-03i3SGE..ST202,205199309

MARK 3

13101PISTON SUB-ASSY, W/PIN

main13101-74100-01i3SFE..ST202,203199309-199606

main13101-74100-02i3SFE..ST202,203199309-199606

main13101-74100-03i3SFE..ST202,203199309-199606

main13101-74160-01i4SFE..ST200,201199309

main13101-74160-02i4SFE..ST200,201199309

main13101-74160-03i4SFE..ST200,201199309

main13101-74191-01i3SFE..ST202,203199606

main13101-74191-02i3SFE..ST202,203199606

main13101-74191-03i3SFE..ST202,203199606

main13101-88460-01i3SGE..ST202,205199309

main13101-88460-02i3SGE..ST202,205199309

main13101-88460-03i3SGE..ST202,205199309

main13103-74100i3SFE..ST202,203199309-199606

main13103-74160i4SFE..ST200,201199309

main13103-74191i3SFE..ST202,203199606

main13103-88460i3SGE..ST202,205199309

main13104-74160i4SFE..ST200,201199309

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90521-25004i3S#,4SFE..ST20#199309-199606

sub90520-22025

13201ROD SUB-ASSY, CONNECTING

main13201-79146i3SFE,4SFE..ST200,201,202,203199309-199608

sub13201-79215

main13201-79195i3SGE..ST202,205199309-199708

sub13201-79425

main13201-79215i4SFE..ST200199608-199804

main13201-79305i3SFE..ST202,203199606-199608

sub13201-79306

main13201-79306i3SFE..ST202,203199608-199705

sub13201-79405

main13201-79405i3SFE..ST202,203199705-199804

sub13201-79555

main13201-79425i3SGE..ST202,205199708-199804

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73112i3SGE,4SFE..ST200,202,205199309-199804

13202BEARING SET, CONNECTING ROD

main13204-74030i3SFE,4SFE..ST200,201,202,203199309-199608

sub13204-74040

main13204-74040i3SFE,4SFE..ST200,202,203199608

sub13204-74041

main13204-88360i3SGE..ST202,205199309

13265BOLT, CONNECTING ROD

main13265-62030i3SFE,4SFE..ST200,201,202,203199309-199804

sub13265-74030

main13265-74010i3SGE..ST202,205199309-199708

main13265-74020i3SGE..ST202,205199708-199804

13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)

main90179-08118i3SFE,4SFE..ST200,201,202,203199309-199804

main90179-10107i3SGE..ST202,205199309-199708

main90179-10123i3SGE..ST202,205199708-199804

13405FLYWHEEL SUB-ASSY

main13405-74070i3SGE..ST202,205..MTM199309-199804

main13405-74120i3SFE,4SFE..ST200,201,202,203..MTM199309-199804

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08054i3S#,4SFE..ST20#..MTM199309

13405BBOLT, FLYWHEEL SETTING

main90105-10071i3SFE,4SFE..ST200,201,202,203..MTM199309

main90105-12187i3SGE..ST202,205..MTM199309

13411CRANKSHAFT

main13411-74903i3SGE..ST202,205199309-199508

sub13411-74909

main13411-74908i3SFE,4SFE..ST200,201,202,203199309-199804

main13411-74909i3SGE..ST202,205199508-199804

13453GEAR, FLYWHEEL RING

main13453-74011i3S#,4SFE..ST20#..MTM199309-199804

13471PULLEY, CRANKSHAFT

main13407-88380i3SGE..ST202,205199309

main13408-74041i3SFE,4SFE..ST200,201,202,203199309

sub13408-74031

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i3S#,4SFE..ST20#199309-199804

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14015i3S#,4SFE..ST20#199309

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-05005i3S#,4SFE..ST20#199309

13521PPULLEY, CRANKSHAFT TIMING

main13521-74020i3SFE,4SFE..ST200,201,202,203199309-199606

sub13521-74040

main13521-74040i3SFE,4SFE..ST200,202,203199606

main13521-88360i3SGE..ST202,205199309

13566AGUIDE, TIMING BELT

main13566-88360i3SGE..ST202,205199309

main13567-74010i3SFE,4SFE..ST200,201,202,203199309
