WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20600iST18#198909-199309

85160LINK ASSY, WINDSHIELD WIPER

main85160-20450iST18#198909-199309

sub85160-20410

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08113iST18#198909-199309

85190ARM ASSY, WINDSHIELD WIPER

main85190-20700iST18#198909-199309

main85210-20240iST18#198909-199309

85192COVER, WINDSHIELD WIPER ARM

main85192-12800iST18#198909-199309

85220BLADE ASSY, WINDSHIELD WIPER

main85220-1A090iST18#198909-199003

sub85291-20030

main85220-1A130iST18#198909-199309

main85220-32550iST18#198909-199003

sub85291-32030

main85220-3A220iST18#198909-199309

main85291-20030iST18#199003-199309

main85291-32030iST18#199003-199309

85221BLADE, WINDSHIELD WIPER

main85213-17040iST18#199005-199309

sub85213-12280

main85221-12200iST18#198909-199005

sub85213-17040

main85221-12240iST18#198909-199005

sub85223-12690

main85223-22700iST18#199005-199309

sub85221-40040

8519730370

main85197-30370

9011906187

main90119-06187

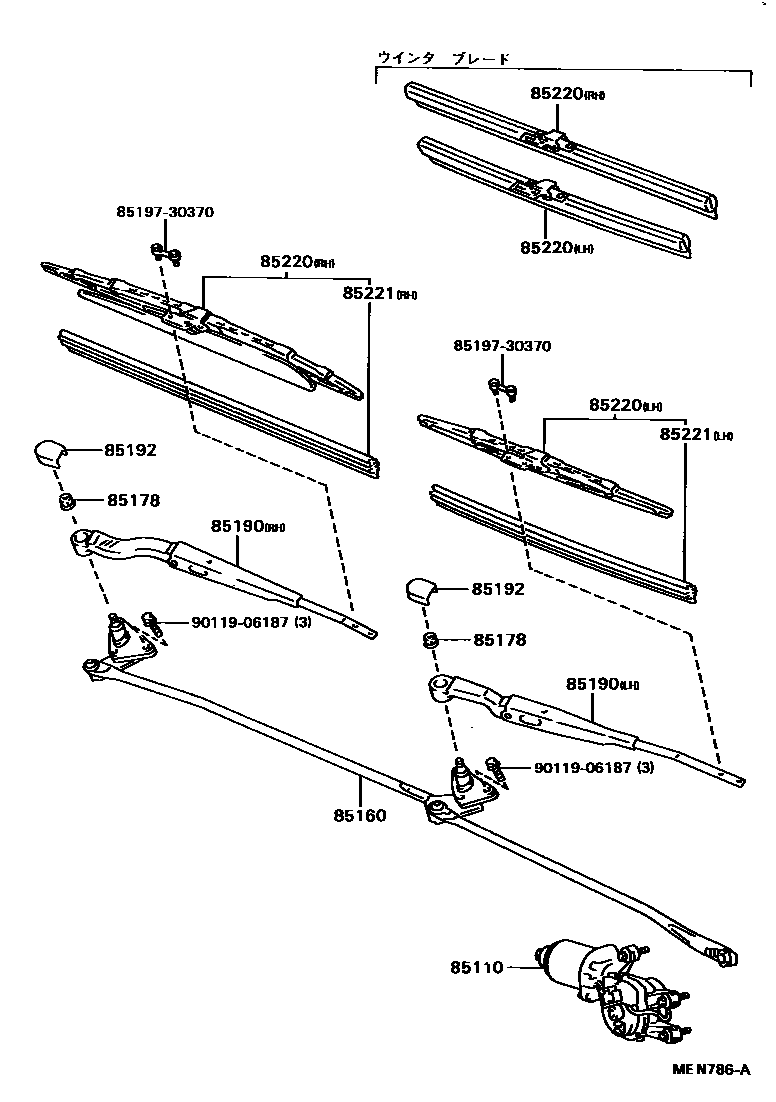

9 parts on this diagram · 1 diagram in section
