ARMREST & VISOR

67625BBRACKET, DOOR TRIM, NO.1 RH

main67625-20070iST18#198909-199309

67626BBRACKET, DOOR TRIM, NO.2 RH

main67626-20060iST18#198909-199309

67635BRACKET, DOOR TRIM, NO.1 LH

main67635-20010iST18#198909-199309

67636BRACKET, DOOR TRIM, NO.2 LH

main67636-20010iST18#198909-199309

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-20180-02iST182,183;ST180,181..FE198909-199309

MAUVE,TRIM3#

main74231-20180-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main74231-20180-06iST18#198909-199309

SABLE,TRIM4#

74310VISOR ASSY, RH

main74310-20650-02iST182,183;ST180,181..FE198909-199309

MAUVE,TRIM3#

main74310-20650-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main74310-20650-06iST18#198909-199309

SABLE,TRIM4#

main74310-2B110-02iST182,183;ST180,181..FE199108-199309

main74310-2B110-03iST182,183..TWC198909-199108

main74310-2B110-06iST18#199108-199309

74320VISOR ASSY, LH

main74320-20560-02iST180,181..FE;ST182,183..EFI198909-199008

MAUVE,TRIM3#

main74320-20560-03iST180,181..FG,TR199008-199309

SHADOW GRAY,TRIM1#

main74320-20560-06iST180,181..FG,TR199008-199309

SABLE,TRIM4#

main74320-2B040-02iST182,183..TWC198909-199008

MAUVE,TRIM3#

main74320-2B040-03iST182,183;ST180,181..FE199008-199309

SHADOW GRAY,TRIM1#

main74320-2B040-06iST182,183..TWC198909-199008

SABLE,TRIM4#

74348HOLDER, VISOR

main74348-20040-03×2iST18#198909-199309

LIGHT GRAY,TRIM1#

main74348-20040-12×2iST182,183;ST180,181..FE198909-199309

MAUVE,TRIM3#

main74348-20040-16×2iST18#198909-199309

LIGHT SABLE,TRIM4#

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-22050-03iST18#198909-199309

LIGHT GRAY,TRIM1#

sub74610-17020

main74610-22050-06iST18#198909-199309

LIGHT SABLE,TRIM4#

sub74610-17020

main74610-22050-12iST182,183;ST180,181..FE198909-199309

MAUVE,TRIM3#

sub74610-17020

74610AGRIP SUB-ASSY, ASSIST

main74610-22050-03×2iST18#198909-199309

LIGHT GRAY,TRIM1#

sub74610-17020

main74610-22050-06×2iST18#198909-199309

LIGHT SABLE,TRIM4#

sub74610-17020

main74610-22050-12×2iST182,183;ST180,181..FE198909-199309

MAUVE,TRIM3#

sub74610-17020

74612COVER, ASSIST GRIP

main74612-20050-02×6iST182,183;ST180,181..FE199107-199108

MAUVE,TRIM3#

main74612-20050-03×6iST18#199109-199309

SHADOW GRAY,TRIM1#

main74612-20050-06×6iST18#199109-199309

SABLE,TRIM4#

main74612-22050-06×6iST18#198909-199107

LIGHT SABLE,TRIM4#

main74612-22050-13×6iST18#199108-199109

LIGHT GRAY,TRIM1#

main74612-22050-22×6iST182,183;ST180,181..FE198909-199107

MAUVE,TRIM3#

74813BHANDLE, FRONT DOOR PULL, RH

main74813-20010-02iST182,183;ST180,181..FE198909-199309

MAUVE,TRIM3#

main74813-20010-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main74813-20010-06iST18#198909-199309

SABLE,TRIM4#

74813CCLIP

main90467-07073-03×4iST18#198909-199009

SHADOW GRAY,TRIM1#

main90467-07073-16×4iST18#198909-199309

SABLE,TRIM4#

main90467-07073-22×4iST182,183;ST180,181..FE198909-199309

MAUVE,TRIM3#

main90467-07073-B4×4iST18#199009-199309

SHADOW GRAY,TRIM1#

74814CHANDLE, FRONT DOOR PULL, LH

main74814-20010-02iST182,183;ST180,181..FE198909-199309

MAUVE,TRIM3#

main74814-20010-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main74814-20010-06iST18#198909-199309

SABLE,TRIM4#

74815BHANDLE, REAR DOOR PULL

main74815-20010-02×2iST182,183;ST180,181..FE198909-199309

MAUVE,TRIM3#

main74815-20010-03×2iST18#198909-199309

SHADOW GRAY,TRIM1#

main74815-20010-06×2iST18#198909-199309

SABLE,TRIM4#

8121

9015960081

main90159-60081

9015960359

main90159-60359

9018905003

main90189-05003

9018906018

main90189-06018

9353045020

main93530-45020

9353055016

main93530-55016

9354014012

main93540-14012

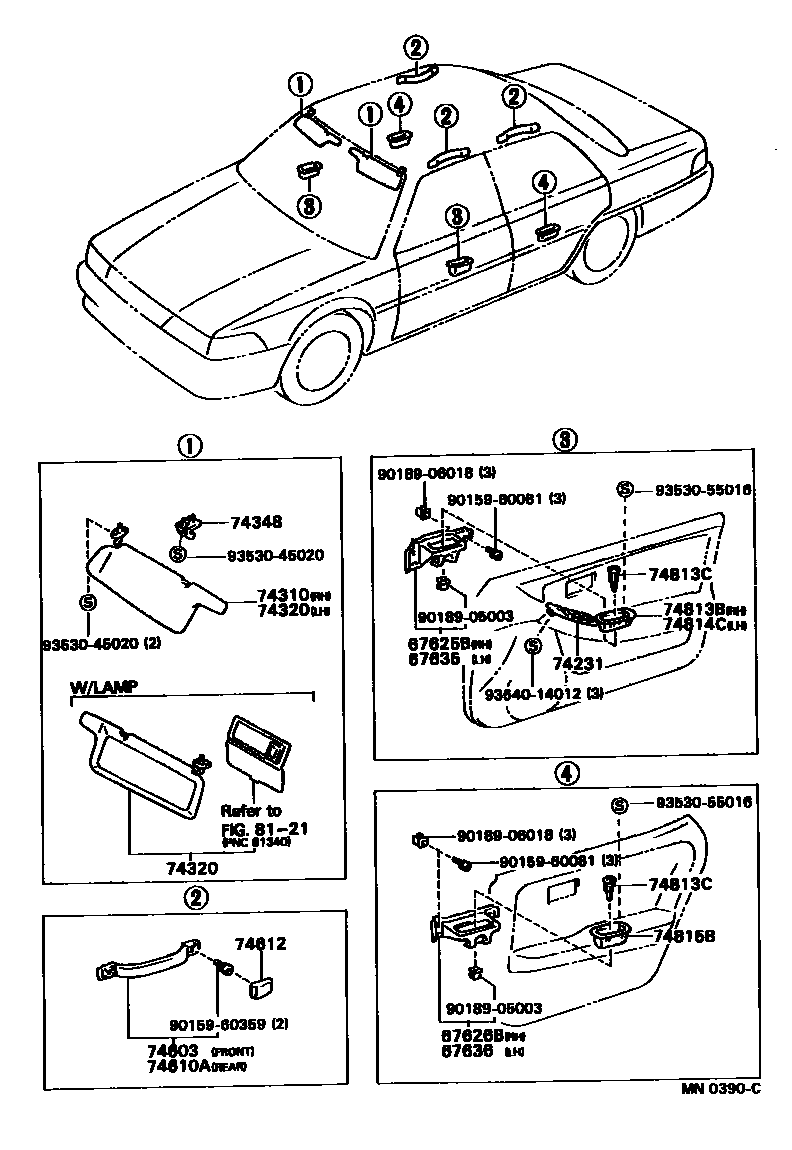

23 parts on this diagram · 1 diagram in section
