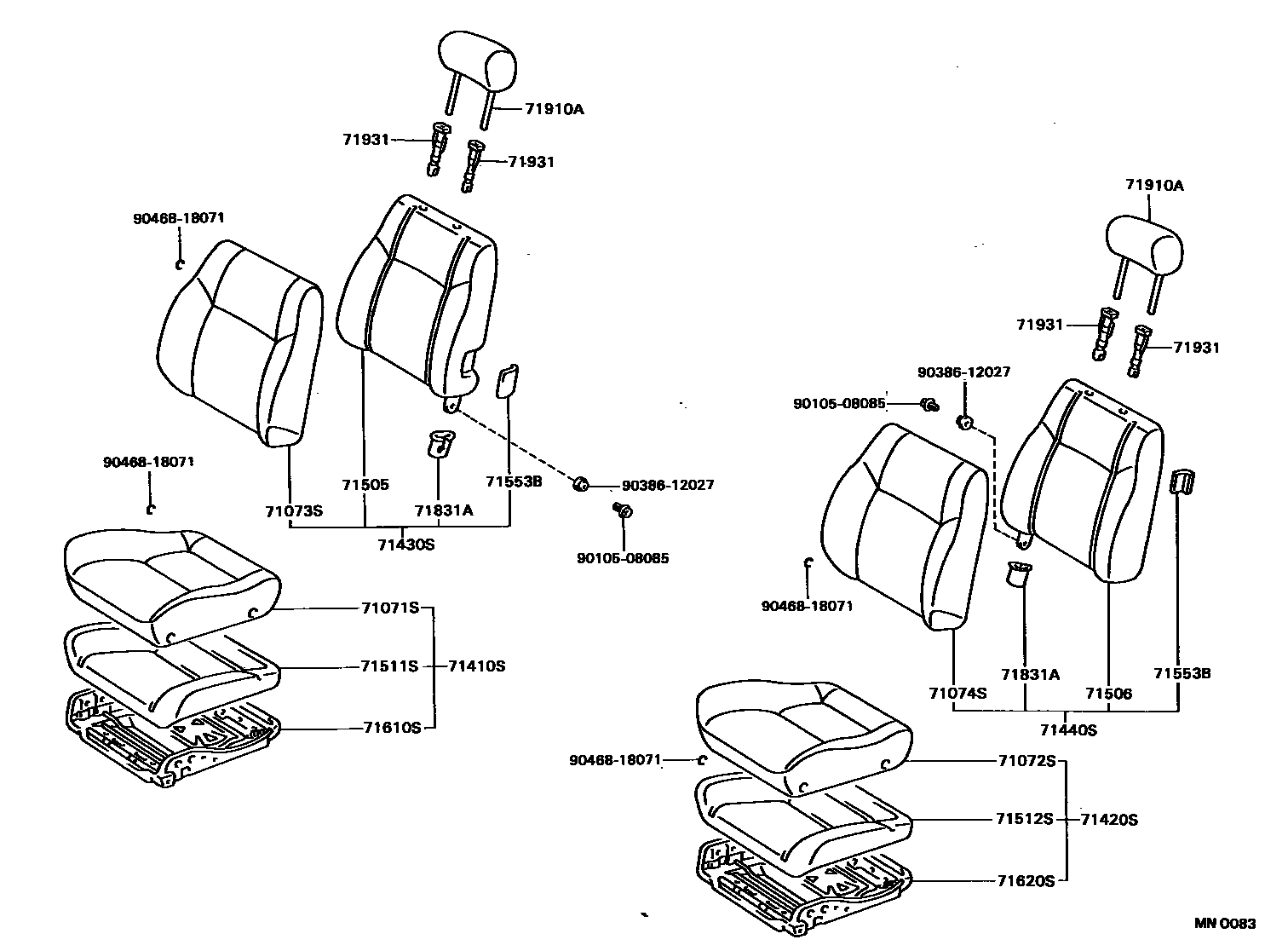

FRONT SEAT & SEAT TRACK

0001 1 0002 1(9011-9012)FE������ 0004 1 0005 1 0006 1(9011-9012)FE������

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-2D500-02iST18#..FE198909-199108

MAUVE,TRIM3#

main71071-2D500-03iST18#..FE198909-199108

SHADOW GRAY,TRIM1#

main71071-2D500-06iST18#..FE198909-199108

SABLE,TRIM4#

main71071-2D510-03iST180..FG198909-199108

SHADOW GRAY,TRIM1#

main71071-2D510-06iST180..FG198909-199108

SABLE,TRIM4#

main71071-2D760-02iST182,183..TR,TRG198909-199108

MAUVE,TRIM3#

main71071-2D760-03iST18#..TR,TRG198909-199108

SHADOW GRAY,TRIM1#

main71071-2D760-06iST18#..TR,TRG198909-199108

SABLE,TRIM4#

main71071-2D761-B0iST18#..TR,TRG199108-199309

SHADOW GRAY,TRIM1#

main71071-2D761-D0iST182,183..TR,TRG199108-199309

MAUVE,TRIM3#

main71071-2D761-E0iST18#..TR,TRG199108-199309

SABLE,TRIM4#

main71071-2G050-03iST182..FE199011-199012

main71071-2G050-03iST182,183..TR,TRG199108-199309

main71071-2G060-B0iST18#..FE199108-199309

SHADOW GRAY,TRIM1#

main71071-2G060-D0iST18#..FE199108-199309

MAUVE,TRIM3#

main71071-2G060-E0iST18#..FE199108-199309

SABLE,TRIM4#

main71071-2G070-B0iST180..FG199108-199309

SHADOW GRAY,TRIM1#

main71071-2G070-E0iST180..FG199108-199309

SABLE,TRIM4#

main71071-2G430-B0iST180,182..FE199208-199309

main71071-2G430-E0iST180,182..FE199208-199309

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-2D060-02iST18#..FE198909-199108

MAUVE,TRIM3#

main71072-2D060-03iST18#..FE198909-199108

SHADOW GRAY,TRIM1#

main71072-2D060-06iST18#..FE198909-199108

SABLE,TRIM4#

main71072-2D070-03iST180..FG198909-199108

SHADOW GRAY,TRIM1#

main71072-2D070-06iST180..FG198909-199108

SABLE,TRIM4#

main71072-2D320-02iST182,183..TR,TRG198909-199108

MAUVE,TRIM3#

main71072-2D320-03iST18#..TR,TRG198909-199108

SHADOW GRAY,TRIM1#

main71072-2D320-06iST18#..TR,TRG198909-199108

SABLE,TRIM4#

main71072-2D321-B0iST18#..TR,TRG199108-199309

SHADOW GRAY,TRIM1#

main71072-2D321-D0iST182,183..TR,TRG199108-199309

MAUVE,TRIM3#

main71072-2D321-E0iST18#..TR,TRG199108-199309

SABLE,TRIM4#

main71072-2D450-03iST182..FE199011-199012

main71072-2D450-03iST182,183..TR,TRG199108-199309

main71072-2D460-B0iST18#..FE199108-199309

SHADOW GRAY,TRIM1#

main71072-2D460-D0iST18#..FE199108-199309

MAUVE,TRIM3#

main71072-2D460-E0iST18#..FE199108-199309

SABLE,TRIM4#

main71072-2D470-B0iST180..FG199108-199309

SHADOW GRAY,TRIM1#

main71072-2D470-E0iST180..FG199108-199309

SABLE,TRIM4#

main71072-2D770-B0iST180,182..FE199208-199309

main71072-2D770-E0iST180,182..FE199208-199309

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-2D400-02iST18#..FE198909-199108

MAUVE,TRIM3#

main71073-2D400-03iST18#..FE198909-199108

SHADOW GRAY,TRIM1#

main71073-2D400-06iST18#..FE198909-199108

SABLE,TRIM4#

main71073-2D410-03iST180..FG198909-199108

SHADOW GRAY,TRIM1#

main71073-2D410-06iST180..FG198909-199108

SABLE,TRIM4#

main71073-2D610-03iST182..FE199011-199012

main71073-2D610-03iST182,183..TR,TRG199108-199309

main71073-2D660-02iST182,183..TR198909-199108

MAUVE,TRIM3#

main71073-2D660-03iST18#..TR198909-199108

SHADOW GRAY,TRIM1#

main71073-2D660-06iST18#..TR198909-199108

SABLE,TRIM4#

main71073-2D661-B0iST18#..TR199108-199309

SHADOW GRAY,TRIM1#

main71073-2D661-D0iST182,183..TR199108-199309

MAUVE,TRIM3#

main71073-2D661-E1iST18#..TR199108-199309

SABLE,TRIM4#

main71073-2D760-B0iST18#..FE199108-199309

SHADOW GRAY,TRIM1#

main71073-2D760-D0iST18#..FE199108-199309

MAUVE,TRIM3#

main71073-2D760-E0iST18#..FE199108-199309

SABLE,TRIM4#

main71073-2D770-B0iST180..FG199108-199309

SHADOW GRAY,TRIM1#

main71073-2D770-E0iST180..FG199108-199309

SABLE,TRIM4#

main71073-2D780-02iST182,183..TWC198909-199108

MAUVE,TRIM3#

main71073-2D780-03iST182,183..TWC198909-199108

SHADOW GRAY,TRIM1#

main71073-2D780-06iST182,183..TWC198909-199108

SABLE,TRIM4#

main71073-2D781-B0iST182,183..TWC199108-199309

SHADOW GRAY,TRIM1#

main71073-2D781-D0iST182,183..TWC199108-199309

MAUVE,TRIM3#

main71073-2D781-E0iST182,183..TWC199108-199309

SABLE,TRIM4#

main71073-2G280-B0iST180,182..FE199208-199309

main71073-2G280-E0iST180,182..FE199208-199309

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-2D100-02iST18#..FE198909-199108

MAUVE,TRIM3#

main71074-2D100-03iST18#..FE198909-199108

SHADOW GRAY,TRIM1#

main71074-2D100-06iST18#..FE198909-199108

SABLE,TRIM4#

main71074-2D110-03iST180..FG198909-199108

SHADOW GRAY,TRIM1#

main71074-2D110-06iST180..FG198909-199108

SABLE,TRIM4#

main71074-2D290-03iST182..FE199011-199012

main71074-2D290-03iST182,183..TR,TRG199108-199309

main71074-2D310-B0iST18#..FE199108-199309

SHADOW GRAY,TRIM1#

main71074-2D310-D0iST18#..FE199108-199309

MAUVE,TRIM3#

main71074-2D310-E0iST18#..FE199108-199309

SABLE,TRIM4#

main71074-2D320-B0iST180..FG199108-199309

SHADOW GRAY,TRIM1#

main71074-2D320-E0iST180..FG199108-199309

SABLE,TRIM4#

main71074-2D360-02iST182,183..TR,TRG198909-199108

MAUVE,TRIM3#

main71074-2D360-03iST18#..TR,TRG198909-199108

SHADOW GRAY,TRIM1#

main71074-2D360-06iST18#..TR,TRG198909-199108

SABLE,TRIM4#

main71074-2D361-B0iST18#..TR,TRG199108-199309

SHADOW GRAY,TRIM1#

main71074-2D361-D0iST182,183..TR,TRG199108-199309

MAUVE,TRIM3#

main71074-2D361-E0iST18#..TR,TRG199108-199309

SABLE,TRIM4#

main71074-2D750-B0iST180,182..FE199208-199309

main71074-2D750-E0iST180,182..FE199208-199309

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-2D680-02iST18#..FE198909-199108

***,MAUVE,TRIM3#

main71410-2D680-03iST18#..FE198909-199108

***,SHADOW GRAY,TRIM1#

main71410-2D680-06iST18#..FE198909-199108

***,SABLE,TRIM4#

main71410-2D690-03iST180..FG198909-199108

***,SHADOW GRAY,TRIM1#

main71410-2D690-06iST180..FG198909-199108

***,SABLE,TRIM4#

main71410-2G120-02iST182,183..TR,TRG198909-199108

***,MAUVE,TRIM3#

main71410-2G120-03iST18#..TR,TRG198909-199108

***,SHADOW GRAY,TRIM1#

main71410-2G120-06iST18#..TR,TRG198909-199108

***,SABLE,TRIM4#

main71410-2G121-B0iST18#..TR,TRG199108-199309

***,SHADOW GRAY,TRIM1#

main71410-2G121-D0iST182,183..TR,TRG199108-199309

***,MAUVE,TRIM3#

main71410-2G121-E0iST18#..TR,TRG199108-199309

***,SABLE,TRIM4#

main71410-2G520-B0iST18#..FE199108-199309

***,SHADOW GRAY,TRIM1#

main71410-2G520-D0iST18#..FE199108-199309

***,MAUVE,TRIM3#

main71410-2G520-E0iST18#..FE199108-199309

***,SABLE,TRIM4#

main71410-2G560-B0iST182,183..TR,TRG199108-199309

main71410-2G590-B0iST180..FG199108-199309

***,SHADOW GRAY,TRIM1#

main71410-2G590-E0iST180..FG199108-199309

***,SABLE,TRIM4#

main71410-2H110-B0iST180,182..FE199208-199309

main71410-2H110-E0iST180,182..FE199208-199309

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-2D260-02iST18#..FE198909-199108

***,MAUVE,TRIM3#

main71420-2D260-03iST18#..FE198909-199108

***,SHADOW GRAY,TRIM1#

main71420-2D260-06iST18#..FE198909-199108

***,SABLE,TRIM4#

main71420-2D270-03iST180..FG198909-199108

***,SHADOW GRAY,TRIM1#

main71420-2D270-06iST180..FG198909-199108

***,SABLE,TRIM4#

main71420-2D540-02iST182,183..TR,TRG198909-199108

***,MAUVE,TRIM3#

main71420-2D540-03iST18#..TR,TRG198909-199108

***,SHADOW GRAY,TRIM1#

main71420-2D540-06iST18#..TR,TRG198909-199108

***,SABLE,TRIM4#

main71420-2D541-B0iST18#..TR,TRG199108-199309

***,SHADOW GRAY,TRIM1#

main71420-2D541-D0iST182,183..TR,TRG199108-199309

***,MAUVE,TRIM3#

main71420-2D541-E0iST18#..TR,TRG199108-199309

***,SABLE,TRIM4#

main71420-2G090-B0iST18#..FE199108-199309

***,SHADOW GRAY,TRIM1#

sub71420-2G090

main71420-2G090-D0iST18#..FE199108-199309

***,MAUVE,TRIM3#

sub71420-2G090

main71420-2G090-E0iST18#..FE199108-199309

***,SABLE,TRIM4#

sub71420-2G090

main71420-2G190-B0iST182,183..TR,TRG199108-199309

main71420-2G220-B0iST180..FG199108-199309

***,SHADOW GRAY,TRIM1#

main71420-2G220-E0iST180..FG199108-199309

***,SABLE,TRIM4#

main71420-2G630-B0iST180,182..FE199208-199309

main71420-2G630-E0iST180,182..FE199208-199309

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-2D630-02iST18#..FE198909-199108

***,MAUVE,TRIM3#

main71430-2D630-03iST18#..FE198909-199108

***,SHADOW GRAY,TRIM1#

main71430-2D630-06iST18#..FE198909-199108

***,SABLE,TRIM4#

main71430-2D640-03iST180..FG198909-199108

***,SHADOW GRAY,TRIM1#

main71430-2D640-06iST180..FG198909-199108

***,SABLE,TRIM4#

main71430-2G010-02iST182,183..TR198909-199108

***,MAUVE,TRIM3#

main71430-2G010-03iST18#..TR198909-199108

***,SHADOW GRAY,TRIM1#

main71430-2G010-06iST18#..TR198909-199108

***,SABLE,TRIM4#

main71430-2G011-B0iST18#..TR199108-199208

***,SHADOW GRAY,TRIM1#

main71430-2G011-D0iST182,183..TR199108-199208

***,MAUVE,TRIM3#

main71430-2G011-E0iST18#..TR199108-199208

***,SABLE,TRIM4#

main71430-2G070-02iST182,183..TWC198909-199108

***,MAUVE,TRIM3#

main71430-2G070-03iST182,183..TWC198909-199108

***,SHADOW GRAY,TRIM1#

main71430-2G070-06iST182,183..TWC198909-199108

***,SABLE,TRIM4#

main71430-2G071-B0iST182,183..TWC199108-199208

***,SHADOW GRAY,TRIM1#

main71430-2G071-D0iST182,183..TWC199108-199208

***,MAUVE,TRIM3#

main71430-2G071-E0iST182,183..TWC199108-199208

***,SABLE,TRIM4#

main71430-2G280-B0iST182,183..TR,TRG199108-199208

main71430-2G420-B0iST18#..FE199108-199208

***,SHADOW GRAY,TRIM1#

main71430-2G420-D0iST18#..FE199108-199208

***,MAUVE,TRIM3#

main71430-2G420-E0iST18#..FE199108-199208

***,SABLE,TRIM4#

main71430-2G430-B0iST180..FG199108-199208

***,SHADOW GRAY,TRIM1#

main71430-2G430-E0iST180..FG199108-199208

***,SABLE,TRIM4#

main71430-2G830-B0iST18#..FE199208-199309

***,SHADOW GRAY,TRIM1#

main71430-2G830-D0iST18#..FE199208-199309

***,MAUVE,TRIM3#

main71430-2G830-E0iST18#..FE199208-199309

***,SABLE,TRIM4#

main71430-2G840-B0iST180..FG199208-199309

***,SHADOW GRAY,TRIM1#

main71430-2G840-E0iST180..FG199208-199309

***,SABLE,TRIM4#

main71430-2G850-B0iST18#..TR199208-199309

***,SHADOW GRAY,TRIM1#

main71430-2G850-D0iST182,183..TR199208-199309

***,MAUVE,TRIM3#

main71430-2G850-E0iST18#..TR199208-199309

***,SABLE,TRIM4#

main71430-2G860-B0iST182,183..TWC199208-199309

***,SHADOW GRAY,TRIM1#

main71430-2G860-D0iST182,183..TWC199208-199309

***,MAUVE,TRIM3#

main71430-2G860-E0iST182,183..TWC199208-199309

***,SABLE,TRIM4#

main71430-2G870-B0iST182,183..TR,TRG199208-199309

main71430-2G880-B0iST180,182..FE199208-199309

main71430-2G880-E0iST180,182..FE199208-199309

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-2B870-02iST18#..FE198909-199108

***,MAUVE,TRIM3#

main71440-2B870-03iST18#..FE198909-199108

***,SHADOW GRAY,TRIM1#

main71440-2B870-06iST18#..FE198909-199108

***,SABLE,TRIM4#

main71440-2D060-03iST180..FG198909-199108

***,SHADOW GRAY,TRIM1#

main71440-2D060-06iST180..FG198909-199108

***,SABLE,TRIM4#

main71440-2D610-02iST182,183..TR,TRG198909-199108

***,MAUVE,TRIM3#

main71440-2D610-03iST18#..TR,TRG198909-199108

***,SHADOW GRAY,TRIM1#

main71440-2D610-06iST18#..TR,TRG198909-199108

***,SABLE,TRIM4#

main71440-2D611-B0iST18#..TR,TRG199108-199208

***,SHADOW GRAY,TRIM1#

main71440-2D611-D0iST182,183..TR,TRG199108-199208

***,MAUVE,TRIM3#

main71440-2D611-E0iST18#..TR,TRG199108-199208

***,SABLE,TRIM4#

main71440-2G060-B0iST182,183..TR,TRG199108-199208

main71440-2G090-B0iST18#..FE199108-199208

***,SHADOW GRAY,TRIM1#

main71440-2G090-D0iST18#..FE199108-199208

***,MAUVE,TRIM3#

main71440-2G090-E0iST18#..FE199108-199208

***,SABLE,TRIM4#

main71440-2G100-B0iST180..FG199108-199208

***,SHADOW GRAY,TRIM1#

main71440-2G100-E0iST180..FG199108-199208

***,SABLE,TRIM4#

main71440-2G420-B0iST18#..FE199208-199309

***,SHADOW GRAY,TRIM1#

main71440-2G420-D0iST18#..FE199208-199309

***,MAUVE,TRIM3#

main71440-2G420-E0iST18#..FE199208-199309

***,SABLE,TRIM4#

main71440-2G430-B0iST180..FG199208-199309

***,SHADOW GRAY,TRIM1#

main71440-2G430-E0iST180..FG199208-199309

***,SABLE,TRIM4#

main71440-2G440-B0iST18#..TR,TRG199208-199309

***,SHADOW GRAY,TRIM1#

main71440-2G440-D0iST182,183..TR,TRG199208-199309

***,MAUVE,TRIM3#

main71440-2G440-E0iST18#..TR,TRG199208-199309

***,SABLE,TRIM4#

main71440-2G450-B0iST182,183..TR,TRG199208-199309

main71440-2G470-B0iST180,182..FE199208-199309

main71440-2G470-E0iST180,182..FE199208-199309

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-20120iST180..FG198909-199309

main71505-20160iST18#..FE198909-199309

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71506-20110iST180..FG198909-199309

main71506-20130iST18#..FE198909-199309

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-20590iST18#..TR,TRG198909-199108

main71511-20590iST182..FE199011-199309

main71511-20591iST18#..TR,TRG199108-199309

main71511-20600iST18#..FE,FG198909-199309

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-20590iST18#..TR,TRG198909-199108

main71511-20590iST182..FE199011-199309

main71511-20591iST18#..TR,TRG199108-199309

main71511-20600iST18#..FE,FG198909-199309

71553BPAD, FRONT SEATBACK, B

main71553-20180iST18#..FE,FG198909-199309

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-20460iST18#198909-199309

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-20470iST18#198909-199309

71831ACOVER, FRONT SEAT HINGE

main71831-20020iST18#..FE,FG198909-199309

71910AHEADREST ASSY, FRONT SEAT

main71910-2B290-02iST18#..FE198909-199108

MAUVE,TRIM3#

main71910-2B290-03iST18#..FE198909-199108

SHADOW GRAY,TRIM1#

main71910-2B290-06iST18#..FE198909-199108

SABLE,TRIM4#

main71910-2B300-03iST180..FG198909-199108

SHADOW GRAY,TRIM1#

main71910-2B300-06iST180..FG198909-199108

SABLE,TRIM4#

main71910-2B390-03iST182..FE199011-199012

main71910-2B390-03iST182,183..TR,TRG199108-199309

main71910-2B420-B0iST18#..FE199108-199309

SHADOW GRAY,TRIM1#

main71910-2B420-D0iST18#..FE199108-199309

MAUVE,TRIM3#

main71910-2B420-E0iST18#..FE199108-199309

SABLE,TRIM4#

main71910-2B430-02iST182,183..TR,TRG198909-199108

MAUVE,TRIM3#

main71910-2B430-03iST18#..TR,TRG198909-199108

SHADOW GRAY,TRIM1#

main71910-2B430-06iST18#..TR,TRG198909-199108

SABLE,TRIM4#

main71910-2B431-33iST182,183..TR,TRG199108-199309

MAUVE,TRIM3#

main71910-2B431-43iST18#..TR,TRG199108-199309

SABLE,TRIM4#

main71910-2B431-B1iST18#..TR,TRG199108-199309

SHADOW GRAY,TRIM1#

main71910-2B530-B0iST180..FG199108-199309

SHADOW GRAY,TRIM1#

main71910-2B530-E0iST180..FG199108-199309

SABLE,TRIM4#

main71910-2B740-B0iST180,182..FE199208-199309

main71910-2B740-E0iST180,182..FE199208-199309

71931SUPPORT, FRONT SEAT HEADREST

main71930-20110-03iST18#..TR,TRG198909-199009

sub71930-20111

main71930-20110-12iST182,183..TR,TRG198909-199009

sub71930-20111

main71930-20110-16iST18#..TR,TRG198909-199009

sub71930-20111

main71930-20111-02iST182,183..TR,TRG199009-199309

main71930-20111-03iST18#..TR,TRG199009-199309

main71930-20111-03iST182..FE199011-199012

main71930-20111-16iST18#..TR,TRG199009-199309

main71930-22040-06iST18#..FE,FG198909-199309

sub71930-22040

sub71930-10070

main71930-22040-12iST18#..FE198909-199309

sub71930-22040

sub71930-10070

main71930-22040-13iST18#..FE,FG198909-199309

sub71930-22040

sub71930-10070

main71931-20060-03iST182..FE199011-199012

main71931-20060-03iST18#..TR,TRG198909-199309

main71931-20060-12iST182,183..TR,TRG198909-199309

main71931-20060-16iST18#..TR,TRG198909-199309

main71931-22010-06iST18#..FE,FG198909-199309

sub71931-22010

sub71931-28030

main71931-22010-13iST18#..FE,FG198909-199309

sub71931-22010

sub71931-28030

main71931-22010-22iST18#..FE198909-199309

sub71931-22010

sub71931-28030

9010508085

main90105-08085

9038612027

main90386-12027

9046818071

main90468-18071

21 parts on this diagram · 5 diagrams in section
