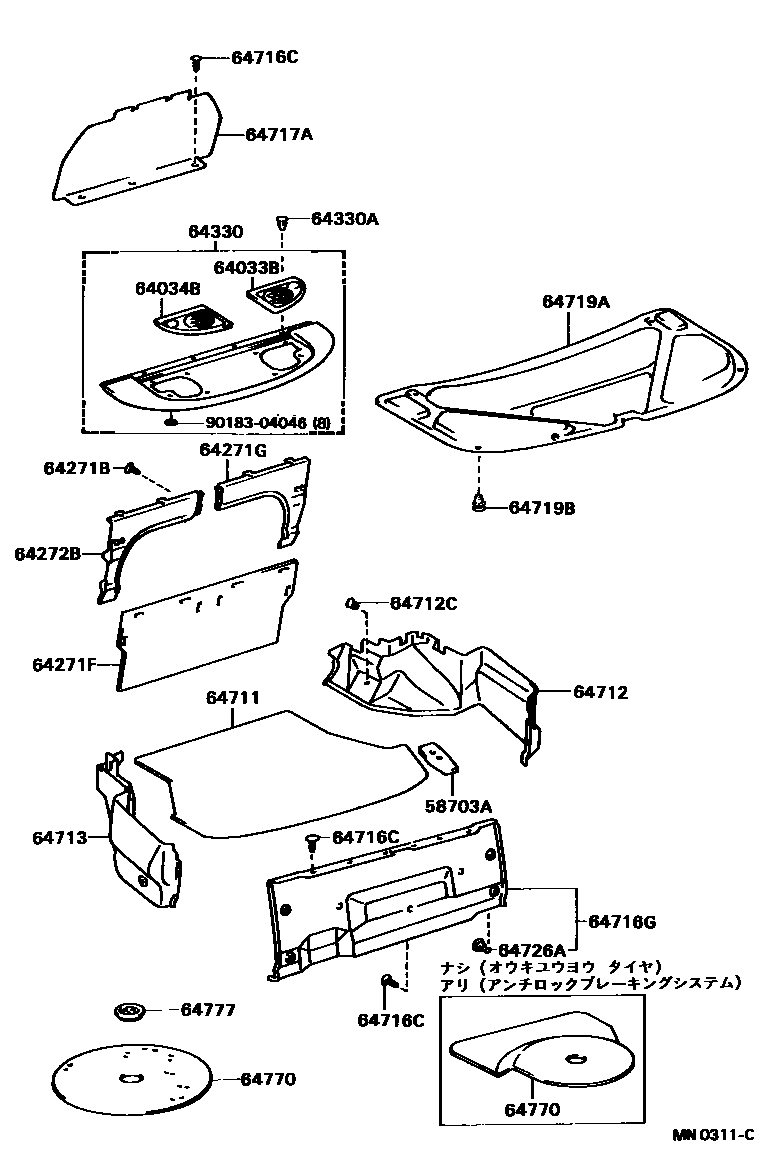

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20150iST18#198909-199309

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-20160-02iST182,183;ST180,181..FE198909-199309

MAUVE,TRIM3#

main64033-20160-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main64033-20160-06iST18#198909-199309

SABLE,TRIM4#

main64033-20200-02iST182,183;ST180,181..FE198909-199309

main64033-20200-03iST182,183;ST180,181..FE199108-199309

main64033-20200-06iST182,183;ST180,181..FE199108-199309

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-20130-02iST182,183;ST180,181..FE198909-199309

MAUVE,TRIM3#

main64034-20130-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main64034-20130-06iST18#198909-199309

SABLE,TRIM4#

main64034-20170-02iST182,183;ST180,181..FE198909-199309

main64034-20170-03iST18#198909-199108

main64034-20170-06iST182,183;ST180,181..FE199108-199309

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-05005-01iST180,181..TR198909-199309

BLACK,TRIM1#,4#

64271FTRIM, ROOM PARTITION

main64271-20220iST180..FG198909-199309

64271GBOARD, ROOM PARTITION, RH

main64271-20210-03iST180,181..TR198909-199108

GRAY,TRIM1#,4#

main64271-20210-C0iST180,181..TR199108-199309

BLACK,TRIM1#,4#

64272BBOARD, ROOM PARTITION, LH

main64272-20030-03iST180,181..TR198909-199108

GRAY,TRIM1#,3#,4#

main64272-20030-C0iST180,181..TR199108-199309

BLACK,TRIM1#,4#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-2B050-02iST182,183;ST180,181..FE199108-199309

main64330-2B050-03iST182,183..TWC198909-199108

main64330-2B050-06iST182,183..TWC198909-199108

main64330-2B060-02iST182,183..TWC198909-199108

main64330-2B060-03iST182,183..TWC198909-199108

main64330-2B060-06iST182,183..TWC198909-199108

main64330-2B080-02iST180,181..FE;ST182,183..EFI198909-199108

MAUVE,TRIM3#

main64330-2B080-03iST18#..CI,EFI198909-199108

SHADOW GRAY,TRIM1#

main64330-2B080-06iST18#..CI,EFI198909-199108

SABLE,TRIM4#

main64330-2B110-02iST180,181..FE;ST182,183..EFI198909-199108

main64330-2B110-03iST180,181..FE;ST182,183..EFI198909-199108

main64330-2B110-06iST180,181..FE;ST182,183..EFI198909-199108

main64330-2B120-02iST182,183;ST180,181..FE199108-199309

MAUVE,TRIM3#

main64330-2B120-03iST18#199108-199309

SHADOW GRAY,TRIM1#

main64330-2B120-06iST18#199108-199309

SABLE,TRIM4#

main64330-2B140-02iST182,183;ST180,181..FE199108-199309

main64330-2B140-03iST182,183..TWC198909-199108

main64330-2B140-06iST182,183;ST180,181..FE199108-199309

main64330-2B150-02iST180,181..FE;ST182,183..EFI198909-199108

main64330-2B150-03iST18#..CI,EFI198909-199108

main64330-2B150-06iST18#..CI,EFI198909-199108

main64330-2B160-02iST180,181..FE;ST182,183..EFI198909-199108

main64330-2B160-03iST180,181..FE;ST182,183..EFI198909-199108

main64330-2B160-06iST180,181..FE;ST182,183..EFI198909-199108

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08037-13×4iST18#198909-199309

SHADOW GRAY,TRIM1#

main90467-08037-32×4iST182,183;ST180,181..FE198909-199309

MAUVE,TRIM3#

main90467-08037-46×4iST18#198909-199309

SABLE,TRIM4#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-20610-03iST180..FG198909-199108

GRAY,TRIM1#,4#

main64711-20620-03iST180,181..TR198909-199108

GRAY,TRIM1#,4#

main64711-20620-C0iST180,181..FG,TR199108-199309

BLACK,TRIM1#,4#

main64711-20810-C0iST181..TR199108-199309

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-20160-03iST180,181..FG,TR198909-199108

GRAY,TRIM1#,4#

main64712-20160-C0iST180,181..FG,TR199108-199309

BLACK,TRIM1#,4#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-08056-23×7iST180,181..FG,TR198909-199108

GRAY,TRIM1#,3#,4#

main90467-08056-C0×7iST180,181..FG,TR199108-199309

BLACK,TRIM1#,4#

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-20160-03iST180,181..FG,TR198909-199108

GRAY,TRIM1#,3#,4#

main64713-20160-C0iST180,181..FG,TR199108-199309

BLACK,TRIM1#,4#

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05004-11×7iST180,181..FG,TR199108-199309

BLACK,TRIM1#,4#

main90467-05004-33×7iST180,181..FG,TR198909-199108

GRAY,TRIM1#,3#,4#

64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR

main64716-20310-03iST180,181..FG,TR198909-199108

GRAY,TRIM1#,3#,4#

main64716-20310-C0iST180,181..FG,TR199108-199309

BLACK,TRIM1#,4#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-20260-03iST180..FG198909-199108

GRAY,TRIM1#,4#

main64717-20260-C0iST180..FG199108-199309

BLACK,TRIM1#,4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-20030-03iST180,181..FG,TR198909-199108

main64719-20030-C0iST180,181..FG,TR199108-199309

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-07059-03×15iST180,181..FG,TR198909-199108

main90467-07059-22×15iST180,181..FG,TR199108-199309

64726ACLIP, LUGGAGE TRIM, REAR

main64726-20020-01×6iST180,181..FG,TR199108-199309

BLACK,TRIM1#,4#

main64726-20020-03×6iST180,181..FG,TR198909-199108

GRAY,TRIM1#,3#,4#

64770COVER ASSY, SPARE WHEEL

main64770-20090iST180,182..EFI199108-199309

main64770-20130iST181,183..EFI199108-199309

main64770-20140iST180,182198909-199309

main64770-20150iST181,183198909-199309

64777CLAMP, SPARE WHEEL COVER

main64777-32030iST18#198909-199309

9018304046

main90183-04046

22 parts on this diagram · 1 diagram in section
