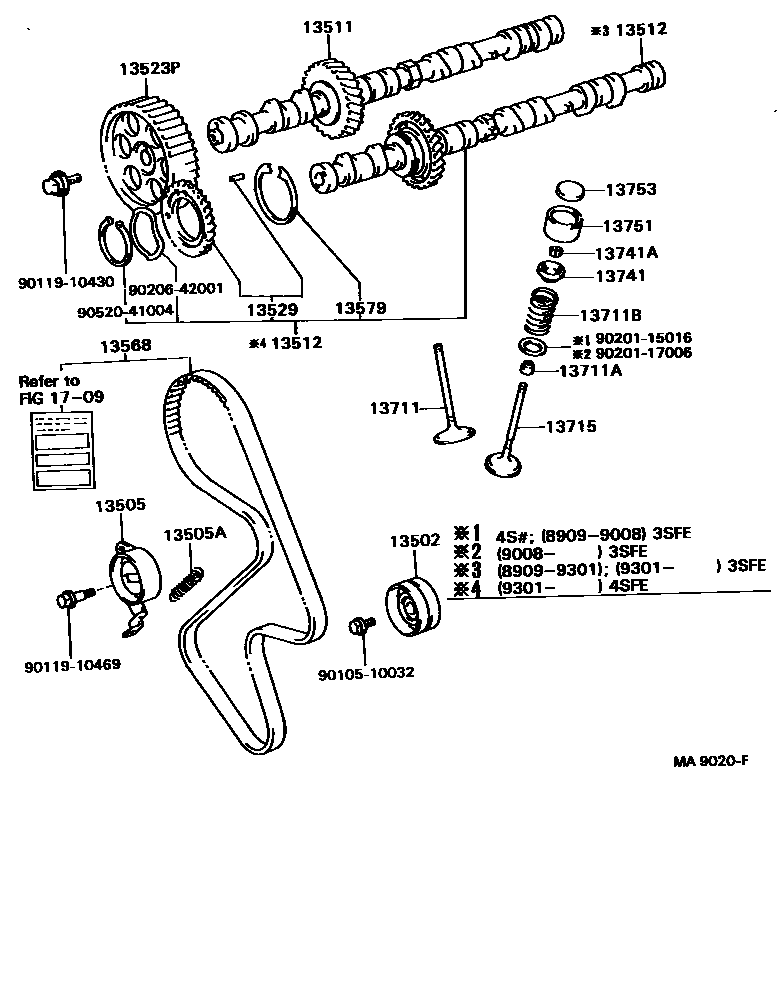

CAMSHAFT & VALVE

0001 1 0002 1

13502IDLER SUB-ASSY, TIMING BELT, NO.2

main13503-63011i3S#,4SF#..ST18#198909-199309

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-74011i3SFE,4SF#..ST18#198909-199309

main13505-74030i3SGE..ST182,183198909-199309

13505ASPRING, TENSION(FOR IDLER)

main90506-18066i3SGE..ST182,183198909-199309

main90506-20052i3SFE,4SFI..ST18#198909-199003

sub90507-20026

main90507-18030i3SFE,4SFE..ST18#199210-199309

sub90507-17003

main90507-20026i3SFE,4SF#..ST18#199003-199107

main90507-20028i3SFE,4SFE..ST18#199107-199210

sub90507-18030

13511CAMSHAFT

main13501-74020i3SFE,4SFI..ST18#198909-199309

main13501-74041i3SGE..ST182,183199108-199309

sub13501-88363

sub13502-88364

main13501-74050i3SFE..ST182,183199008-199309

main13501-79016i3SGE..ST182,183198909-199108

13512CAMSHAFT, NO.2

main13501-74041i3SGE..ST182,183199108-199309

sub13501-88363

sub13502-88364

main13502-74020i4SFE..ST180,181198909-199301

sub13502-74904

main13502-74030i3SFE..ST182,183199008-199309

main13502-74904i4SFE..ST180,181199301-199309

main13502-79016i3SGE..ST182,183198909-199108

13523PPULLEY, CAMSHAFT TIMING

main13523-74020i3SFE,4SF#..ST18#198909-199309

main13523-88301i3SGE..ST182,183199009-199309

main13523-88360i3SGE..ST182,183198909-199009

sub13523-88301

13529GEAR, CAMSHAFT SUB

main13529-74900i3SFE,4SF#..ST18#198909-199309

13568BELT, TIMING

main13568-74011i3SFE,4SF#..ST18#198909-199101

sub13568-74012

main13568-74012i3SFE,4SFE..ST18#199101-199204

sub13568-79025

main13568-79025i3SFE,4SFE..ST18#199204-199309

sub13568-79095

main13568-79045i3SGE..ST182,183199205-199309

sub13568-79305

main13568-88382i3SGE..ST182,183198909-199205

sub13568-79045

13579WASHER, CAMSHAFT TIMING GEAR BOLT

main13579-74010i3SFE,4SF#..ST18#198909-199309

13711VALVE, INTAKE

main13711-74020i3SFE,4SFI..ST18#198909-199309

main13711-74070i3SGE..ST182,183198909-199309

main13711-74080i3SFE..ST182,183199008-199309

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02062i3S#,4SFI..ST18#198909-199006

INTAKE SIDE

main90913-02066i3SFE..ST182,183199008-199108

EXHAUST VALVE

main90913-02066i3SFE..ST182,183198909-199309

EXHAUST SIDE

main90913-02090i3SGE,4SFE..ST18#199003-199309

INTAKE SIDE

main90913-02090i3SFE..ST182,183199008-199108

INTAKE VALVE

13711BSPRING, COMPRESSION(FOR INNER)

main90501-31003i3SFE,4SFI..ST18#198909-199309

main90501-35006i3SGE..ST182,183198909-199309

main90504-37002i3SFE..ST182,183199008-199309

13715VALVE, EXHAUST

main13715-74020i3SFE,4SFI..ST18#198909-199309

main13715-74070i3SGE..ST182,183198909-199309

main13715-74080i3SFE..ST182,183199008-199309

13741RETAINER, VALVE SPRING

main13741-16010i3SFE,4SFI..ST18#198909-199309

main13741-50020i3SFE..ST182,183199008-199309

main13741-88361i3SGE..ST182,183198909-199309

13741ALOCK, VALVE SPRING RETAINER

main90913-03021i3S#,4SF#..ST18#198909-199309

13751LIFTER, VALVE

main13751-16010i3SFE,4SFI..ST18#198909-199309

main13751-74020i3SGE..ST182,183198909-199309

13753SHIM, VALVE ADJUSTING

main13753-16020i4SFE..ST180,181198909-199309

main13753-16040i3SFE,4SFI..ST18#198909-199309

main13753-16060i4SFE..ST180,181198909-199309

sub13753-16351

main13753-16080i4SFE..ST180,181198909-199309

sub13753-16371

main13753-16100i3SFE,4SFI..ST18#198909-199309

sub13753-16401

main13753-16120i4SFE..ST180,181198909-199309

sub13753-16421

main13753-16140i3SFE,4SFI..ST18#198909-199309

sub13753-16451

main13753-16160i4SFE..ST180,181198909-199309

sub13753-16471

main13753-16180i3SFE,4SFI..ST18#198909-199309

sub13753-16501

main13753-16200i4SFE..ST180,181198909-199309

sub13753-16521

main13753-16220i4SFE..ST180,181198909-199309

sub13753-16551

main13753-16240i3SFE,4SFI..ST18#198909-199309

sub13753-16571

main13753-16260i3SFE,4SFI..ST18#198909-199309

sub13753-16601

main13753-16280i4SFE..ST180,181198909-199309

sub13753-16621

main13753-16300i4SFE..ST180,181198909-199309

sub13753-16651

main13753-16320i4SFE..ST180,181198909-199309

main13753-16340i4SFE..ST180,181198909-199309

main13753-74010i3S#..ST182,183198909-199309

main13753-74030i3SFE..ST182,183198909-199309

main13753-74050i3S#..ST182,183198909-199309

main13753-74070i3SGE..ST182,183198909-199309

main13753-74090i3SGE..ST182,183198909-199309

main13753-74110i3SGE..ST182,183198909-199309

main13753-74130i3SFE..ST182,183198909-199309

main13753-74150i3S#..ST182,183198909-199309

main13753-74170i3S#..ST182,183198909-199309

main13753-74190i3SGE..ST182,183198909-199309

main13753-74210i3S#..ST182,183198909-199309

main13753-74230i3SFE..ST182,183198909-199309

main13753-74250i3SFE..ST182,183198909-199309

main13753-74270i3S#..ST182,183198909-199309

main13753-74290i3SGE..ST182,183198909-199309

main13753-74310i3SFE..ST182,183198909-199309

main13753-74330i3SFE..ST182,183198909-199309

main13753-74360i3SGE..ST182,183199003-199108

main13753-74380i3SGE..ST182,183199003-199108

main13753-74400i3SGE..ST182,183199003-199108

main13753-74420i3SGE..ST182,183199003-199108

main13753-74440i3SGE..ST182,183199003-199108

main13753-74460i3SGE..ST182,183199003-199108

main13753-74480i3SGE..ST182,183199003-199108

main13753-74500i3SGE..ST182,183199003-199108

main13753-74520i3SGE..ST182,183199003-199108

main13753-74540i3SGE..ST182,183199003-199108

main13753-74560i3SGE..ST182,183199003-199108

main13753-74580i3SGE..ST182,183199003-199108

main13753-74600i3SGE..ST182,183199003-199108

main13753-74620i3SGE..ST182,183199003-199108

main13753-74640i3SGE..ST182,183199003-199108

main13753-74660i3SGE..ST182,183199003-199108

main13753-74680i3SGE..ST182,183199003-199108

main13753-74700i3SGE..ST182,183199003-199309

main13753-74720i3SGE..ST182,183199003-199309

1709

9010510032

main90105-10032

9011910430

main90119-10430

9011910469

main90119-10469

9020115016

main90201-15016

9020117006

main90201-17006

9020642001

main90206-42001

9052041004

main90520-41004

25 parts on this diagram · 2 diagrams in section
