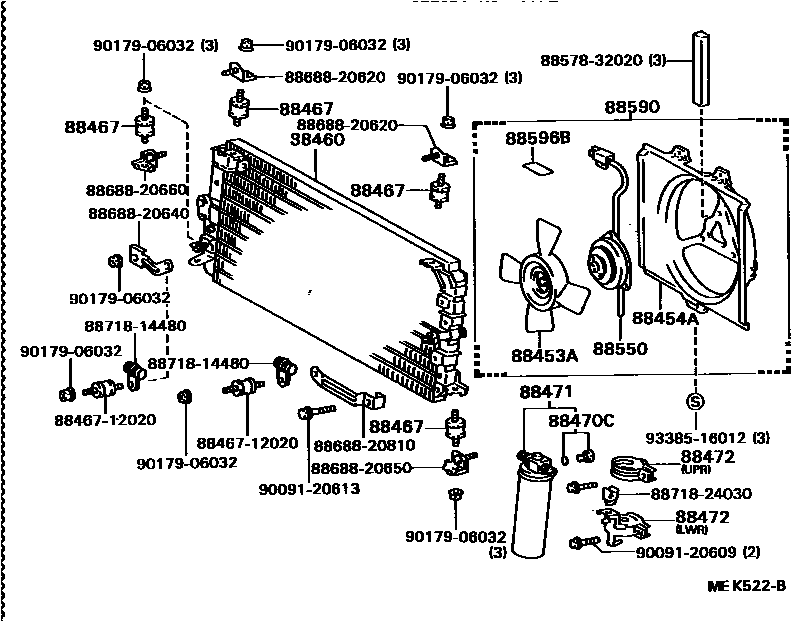

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

88453AFAN, COOLING

main88453-32020iST162..4FC..GT198708-198908

88454ASHROUD, FAN

main88454-12061iST162..4FC..GT198708-198908

sub88454-12120

88460CONDENSER ASSY, COOLER

main88460-20200iST160..EX198708-198908

88467CUSHION, COOLER CONDENSER, NO.1

main88467-14040iST162..GT198708-198908

88470CBOLT, FUSE

main88475-12020iST162..GT198708-198908

88471TANK, RECEIVER AIR CONDITIONER

main88470-14010iST162..GT198708-198908

sub04884-33110

88472BRACKET, RECEIVER TANK, NO.1

main88472-22090iST162..GT198708-198908

main88473-20030iST16#..EX,GX,VX198708-198908

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12090iST162..4FC..GT198708-198908

88590BLOWER ASSY, W/SHROUD

main88590-12061iST160..4FC198708-198805

main88590-20130iST162..5F..GT198708-198908

sub88590-20100

main88590-20140iST160..5F198708-198805

sub88590-20100

main88590-20150iST162,163..GX,VX198708-198908

sub88590-20080

main88590-20220iST162..4FC..GT198708-198908

88596BPLATE, CAUTION, NO.1

main88596-24010iST162..4FC..GT198708-198908

8846712020CUSHION, COOLER CONDENSER, NO.1

main88467-12020

8857832020PAKING, COOLER AIR DUCT

main88578-32020

8868820620BRACKET, COOLER DIAPHRAGM

main88688-20620

8868820640BRACKET, COOLER DIAPHRAGM

main88688-20640

8868820650BRACKET, COOLER DIAPHRAGM

main88688-20650

8868820660BRACKET, COOLER DIAPHRAGM

main88688-20660

8868820810BRACKET, COOLER DIAPHRAGM

main88688-20810

8871814480PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-14480

8871824030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-24030

9009120609

main90091-20609

9009120613

main90091-20613

9017906032

main90179-06032

9338516012

main93385-16012

23 parts on this diagram · 4 diagrams in section
