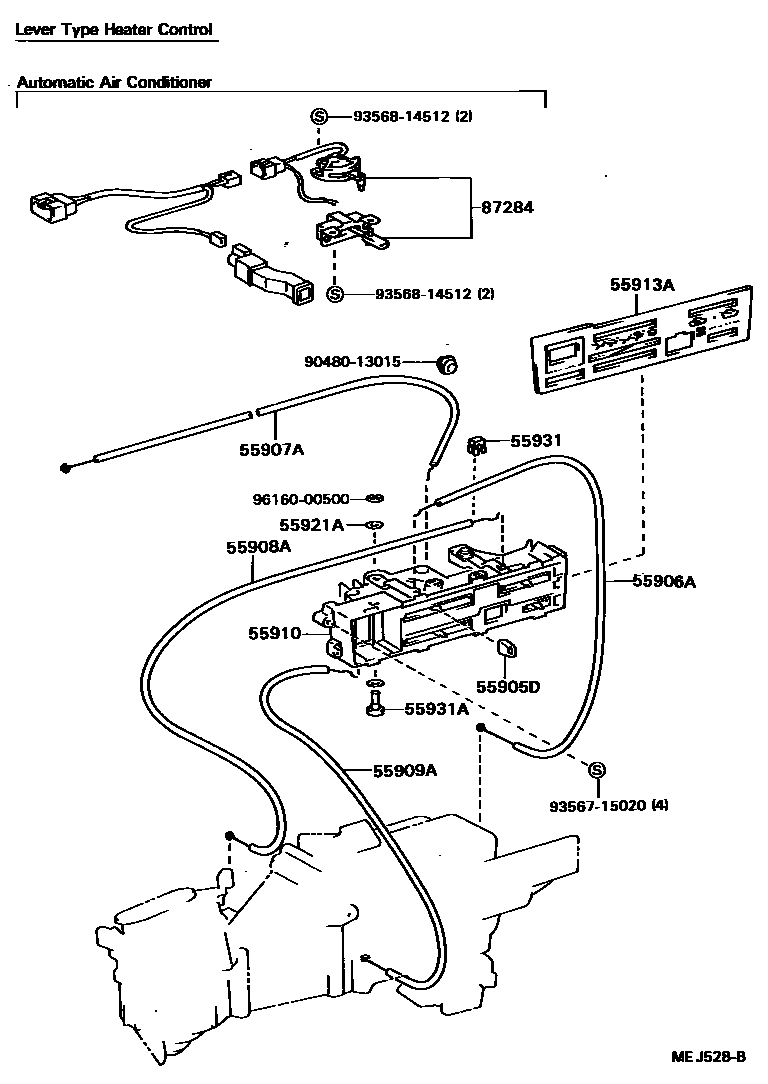

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1

55905DKNOB SUB-ASSY, CONTROL

main55905-12070iST16#..GT,GX198708-198908

main55905-20250iST162..GT198708-198908

main55905-20260iST162..GT198708-198908

ECON

main55905-20270iST162..GT198708-198908

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-20210iST16#..GT,GX198708-198908

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-20180iST16#..GT,GX198708-198908

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-20100iST16#..GT,GX198708-198908

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-20050iST16#..GT,GX198708-198908

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55900-20360iST16#..EX,VX198708-198908

GT-R

main55910-20370iST16#..GT,GX198708-198908

55913APLATE, HEATER CONTROL LEVER GUIDE

main55519-20221iST16#..GT,GX198708-198908

main55519-20230iST16#..GT,GX198708-198908

55921ARETAINER, HEATER CONTROL

main55921-14110iST16#..GT,GX198708-198908

55931CLAMP, HEATER CONTROL WIRE

main55933-20040iST16#..GT,GX198708-198908

55931ASHAFT, HEATER CONTROL LEVER

main55931-20060iST16#..GT,GX198708-198908

87284RESISTOR SUB-ASSY, VARIABLE

main88032-20070iST16#..GT,GX198708-198908

9048013015

main90480-13015

9356715020

main93567-15020

9356814512

main93568-14512

9616000500

main96160-00500

15 parts on this diagram · 4 diagrams in section
