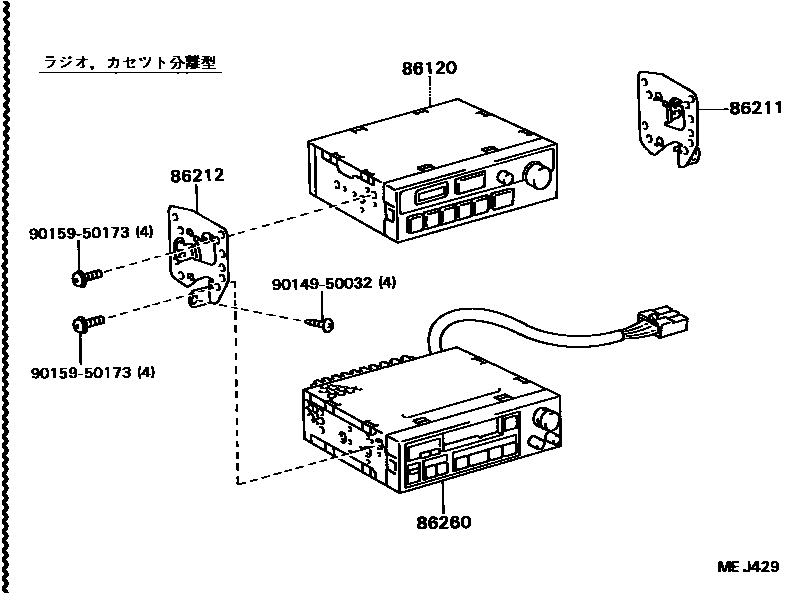

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

86120RECEIVER ASSY, RADIO

main86120-20561iST16#..EX,GT,VX198708-198908

main86120-20640iST16#..EX,GT,VX198708-198908

main86120-20650iST16#..GT,GX198708-198908

main86120-20660iST162..GT198708-198908

main86120-22650iST162,163..VX198708-198908

86211BRACKET, RADIO, NO.1

main86211-20150iST16#198708-198908

86212BRACKET, RADIO, NO.2

main86212-20190iST16#198708-198908

86260TAPE PLAYER ASSY

main86260-19145iST16#..GT,GX198708-198908

main86260-19155iST16#..GT,GX198708-198908

main86260-19165iST16#..GT,GX198708-198908

main86260-20141iST162..GT198708-198908

sub86260-60010

main86260-20151iST162..GT198708-198908

9014950032

main90149-50032

9015950173

main90159-50173

6 parts on this diagram · 3 diagrams in section
