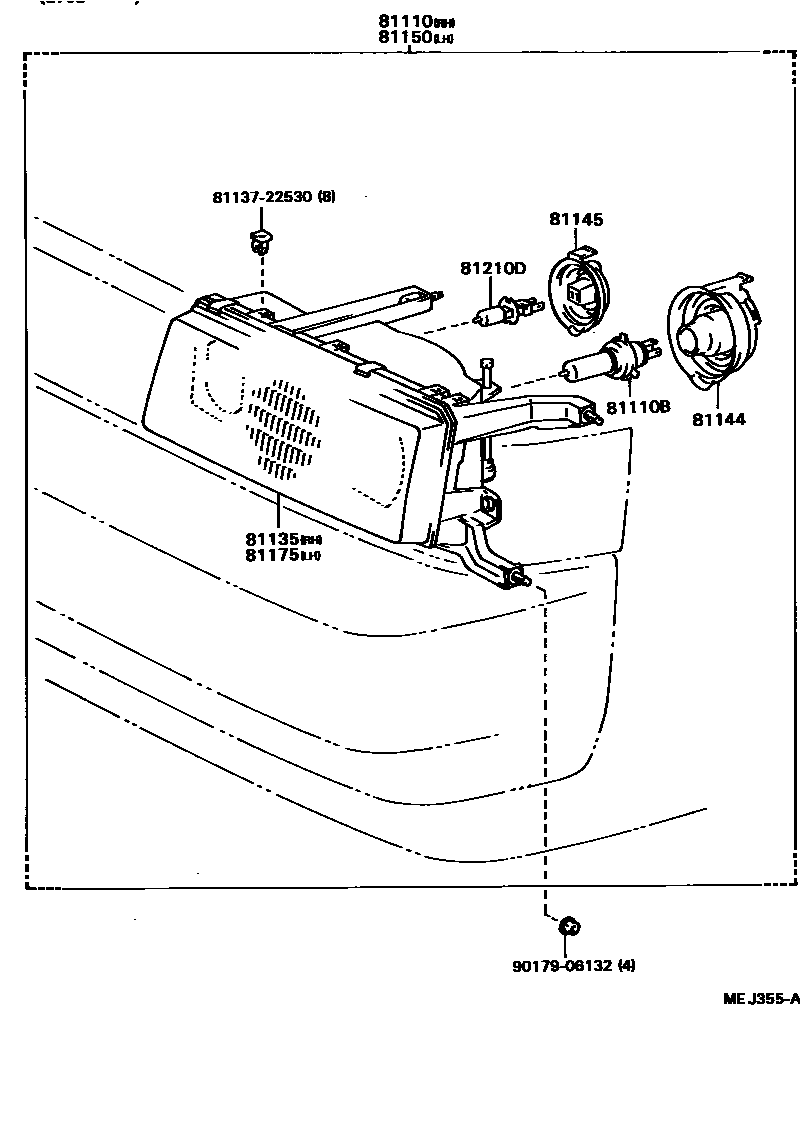

HEADLAMP

81110HEADLAMP ASSY, RH

main81110-2B120iST16#198708-198908

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13015iST16#198708-198908

sub90981-13058

81135UNIT ASSY, HEADLAMP, RH

main81130-2B120iST16#198708-198908

81144COVER, HEADLAMP, NO.1

main81139-20730iST16#198708-198908

81145COVER, HEADLAMP, NO.2

main81212-30030iST16#198708-198908

81150HEADLAMP ASSY, LH

main81150-2B080iST16#198708-198908

81175UNIT ASSY, HEADLAMP, LH

main81170-2B080iST16#198708-198908

81210DBULB, FOG LAMP

main90981-13031iST16#198708-198908

8113722530PROTECTOR, HEADLAMP, NO.2 RH

main81137-22530

9017906132

main90179-06132

10 parts on this diagram · 1 diagram in section
