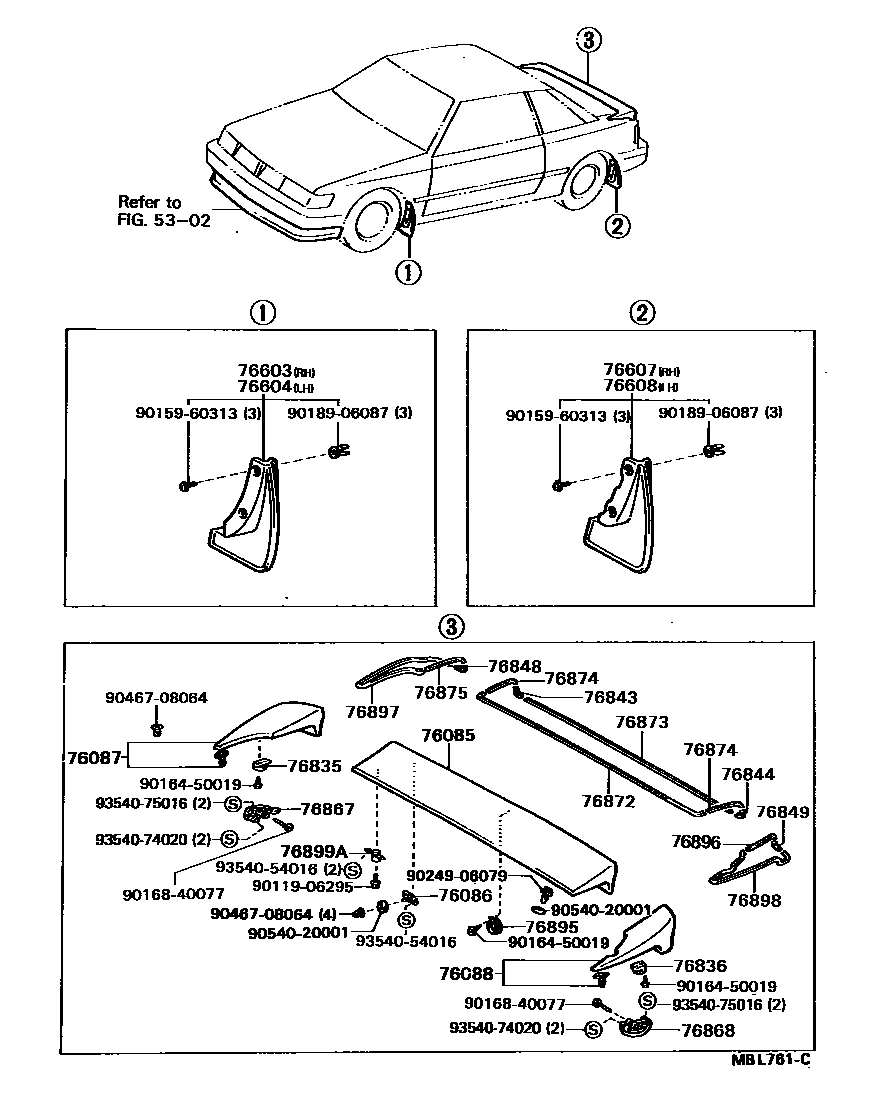

MUDGUARD & SPOILER
5302
76085SPOILER SUB-ASSY, REAR
EVENT
76086RETAINER SUB-ASSY, REAR SPOILER
76087SPOILER SUB-ASSY, REAR NO.1
EVENT
76088SPOILER SUB-ASSY, REAR NO.2
EVENT
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76835RETAINER, REAR SPOILER SIDE, NO.1
76836RETAINER, REAR SPOILER SIDE, NO.2
76843PROTECTOR, REAR SPOILER, NO.11 RH
76844PROTECTOR, REAR SPOILER, NO.11 LH
76848PROTECTOR, REAR SPOILER, NO.12 RH
76849PROTECTOR, REAR SPOILER, NO.12 LH
76867RETAINER, REAR SPOILER SIDE, RH
76868RETAINER, REAR SPOILER SIDE, LH
76872PROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76874PROTECTOR, REAR SPOILER, NO.3
76895PROTECTOR, REAR SPOILER, NO.5
76897PROTECTOR, REAR SPOILER, SIDE RH
76898PROTECTOR, REAR SPOILER, SIDE LH
76899ANUT, REAR SPOILER
9011906295
main90119-06295
9015960313
main90159-60313
9016450019
main90164-50019
9016840077
main90168-40077
9018906087
main90189-06087
9024906079
main90249-06079
9046708064
main90467-08064
9054020001
main90540-20001
9354054016
main93540-54016
9354074020
main93540-74020
9354075016
main93540-75016
37 parts on this diagram · 1 diagram in section
