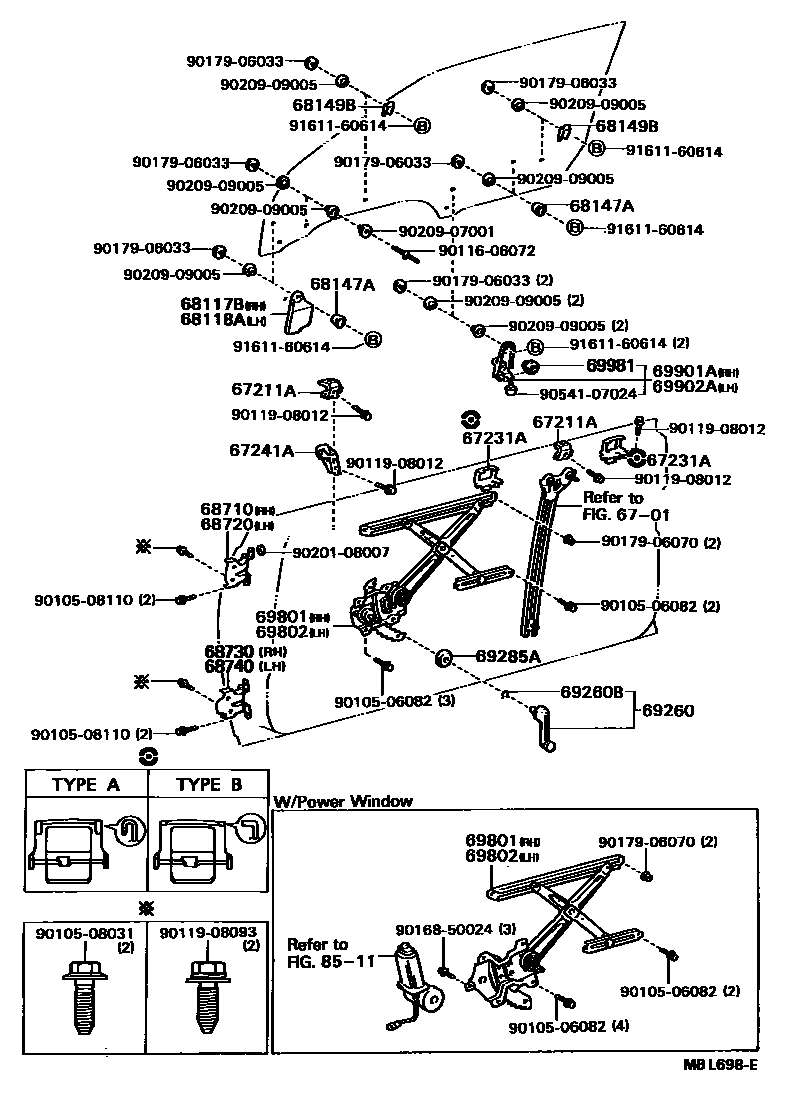

FRONT DOOR WINDOW REGULATOR & HINGE
6701
67211ASTOP, FRONT DOOR WINDOW, UPPER
67241ASTABILIZER, DOOR GLASS, INNER
sub67241-14011
68117BPLATE, FRONT DOOR GLASS, RH
68118APLATE, FRONT DOOR GLASS, LH
68147ASTOP, FRONT DOOR GLASS, UPPER
68149BSTABILIZER, FRONT DOOR GLASS MALE
68710HINGE ASSY, FRONT DOOR, UPPER RH
68720HINGE ASSY, FRONT DOOR, UPPER LH
68730HINGE ASSY, FRONT DOOR, LOWER RH
sub68730-14060
68740HINGE ASSY, FRONT DOOR, LOWER LH
sub68740-14060
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69285APLATE, DOOR VENT WINDOW CONTROL HANDLE
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69901ABRACKET SUB-ASSY, FRONT DOOR GLASS, RH
69902ABRACKET SUB-ASSY, FRONT DOOR GLASS, LH
69981ROLLER, FRONT DOOR GLASS GUIDE
8511
9010506082
main90105-06082
9010508031
main90105-08031
9010508110
main90105-08110
9011606072
main90116-06072
9011908012
main90119-08012
9011908093
main90119-08093
9016850024
main90168-50024
9017906033
main90179-06033
9017906070
main90179-06070
9020108007
main90201-08007
9020907001
main90209-07001
9020909005
main90209-09005
9054107024
main90541-07024
9161160614
main91611-60614
35 parts on this diagram · 1 diagram in section
