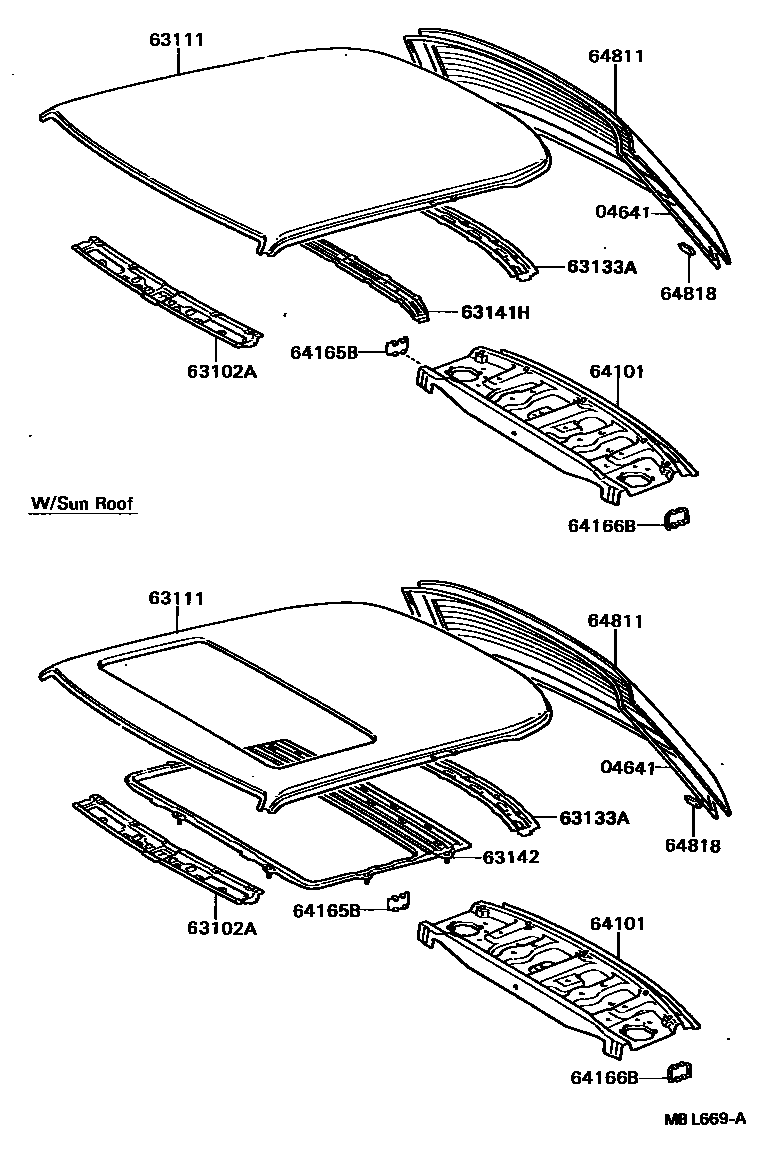

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

04641DAM KIT, BACK WINDOW GLASS

main04562-30040iST16#198708-198908

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20090iST16#198708-198908

63111PANEL, ROOF

main63111-20220iST16#198708-198908

main63111-20230iST16#198708-198908

63133AFRAME, BACK WINDOW, UPPER

main63133-20120iST16#198708-198908

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-20060iST16#198708-198908

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-20040iST16#198708-198908

64101PANEL SUB-ASSY, UPPER BACK

main64101-20240iST16#198708-198908

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-20030iST16#198708-198908

64166BCOVER, UPPER BACK PANEL HOLE, NO.2

main64166-20020iST16#198708-198908

64811GLASS, BACK WINDOW

main64801-20110iST16#198708-198908

64818SPACER, BACK WINDOW GLASS

main64818-30050iST16#198708-198908

11 parts on this diagram · 2 diagrams in section
