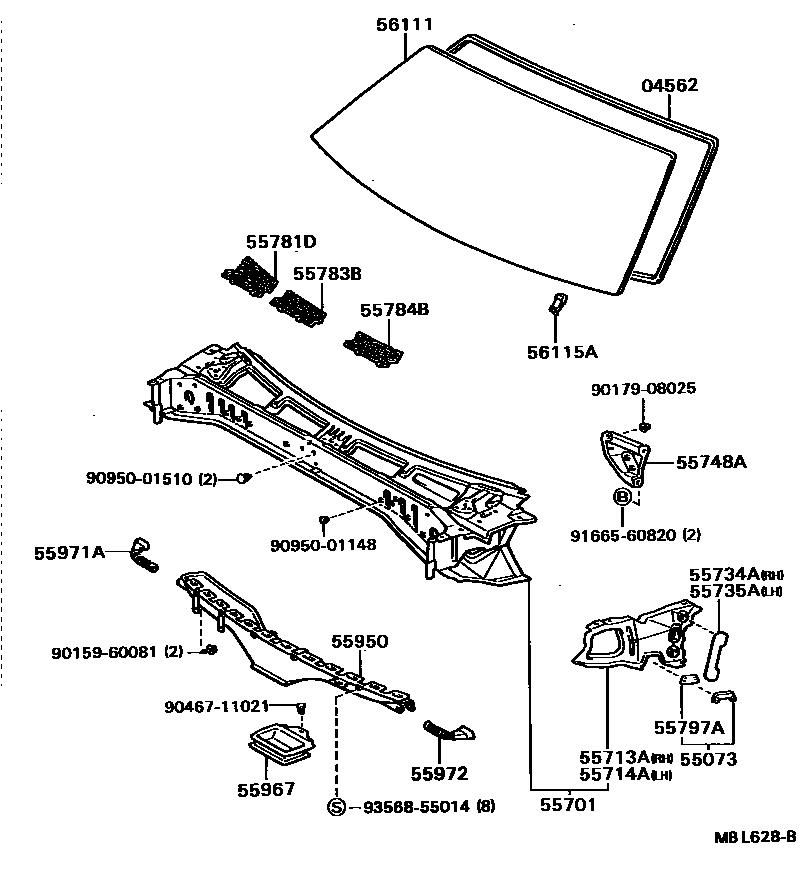

COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT
55701PANEL SUB-ASSY, COWL
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55734APLATE, WATER GUARD, RH
55735APLATE, WATER GUARD, LH
55748ABRACE, COWL TOP INNER TO PILLAR
55781DLOUVER, COWL TOP VENTILATOR, RH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
55797ASEAL, COWL WATER EXTRACT
55950NOZZLE ASSY, DEFROSTER
55967NOZZLE, DEFROSTER, LOWER
55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55972DUCT, SIDE DEFROSTER NOZZLE, NO.2
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
9015960081
9017908025
9046711021
9095001148
9095001510
9166560820
9356855014
25 parts on this diagram · 1 diagram in section
