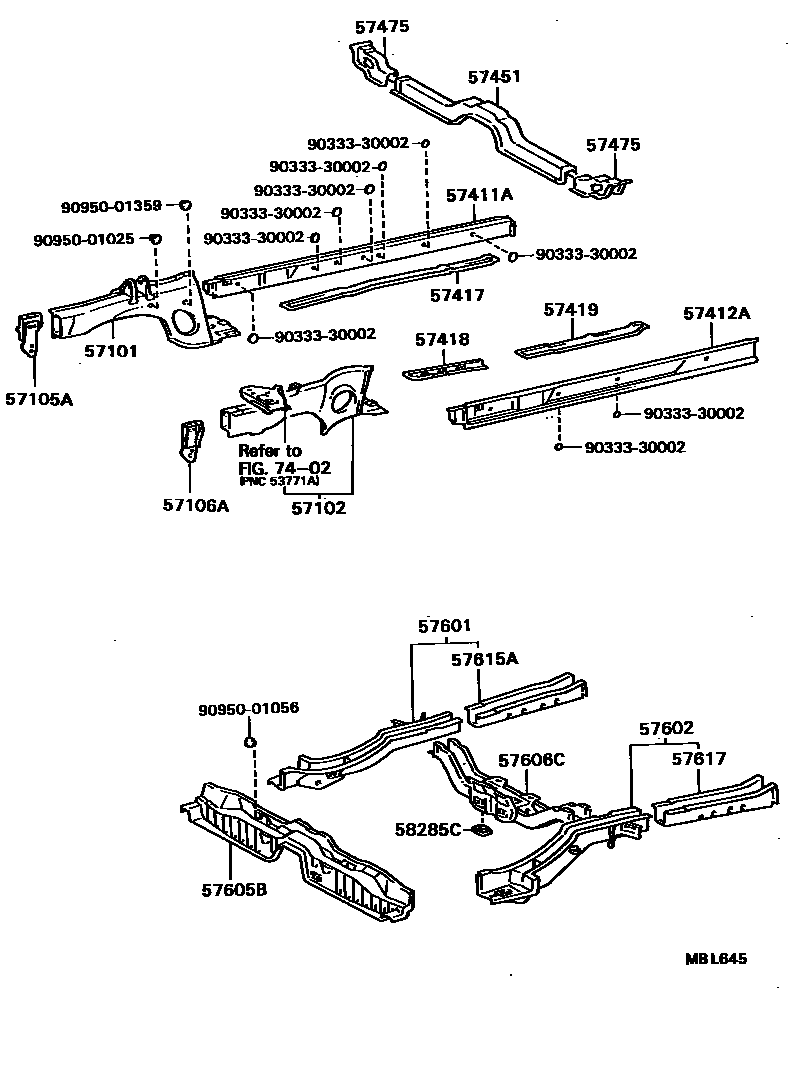

FLOOR SIDE MEMBER

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-20460iST16#198708-198908

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-20620iST16#198708-198908

57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH

main57105-20050iST16#198708-198908

57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH

main57106-20050iST16#198708-198908

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-20220iST16#198708-198908

sub57401-20221

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-20220iST16#198708-198908

sub57402-20221

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-20030iST16#198708-198908

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-20040iST16#198708-198908

57419REINFORCEMENT, FRONT FLOOR UNDER, LH NO.2

main57419-20020iST16#198708-198908

57451MEMBER, FRONT FLOOR CROSS

main57451-20070iST16#198708-198908

57475PLATE, FRONT FLOOR CROSSMEMBER

main57475-20020iST16#198708-198908

main57476-20020iST16#198708-198908

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-20170iST16#198708-198908

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-20170iST16#198708-198908

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-20060iST16#198708-198908

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-20080iST16#198708-198908

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-20904iST16#198708-198908

57617MEMBER, REAR FLOOR SIDE, REAR LH

main57616-20904iST16#198708-198908

58285CCOVER, REAR FLOOR HOLE

main58285-20020iST16#198708-198908

7402

9033330002

main90333-30002

9095001025

main90950-01025

9095001056

main90950-01056

9095001359

main90950-01359

23 parts on this diagram · 1 diagram in section
