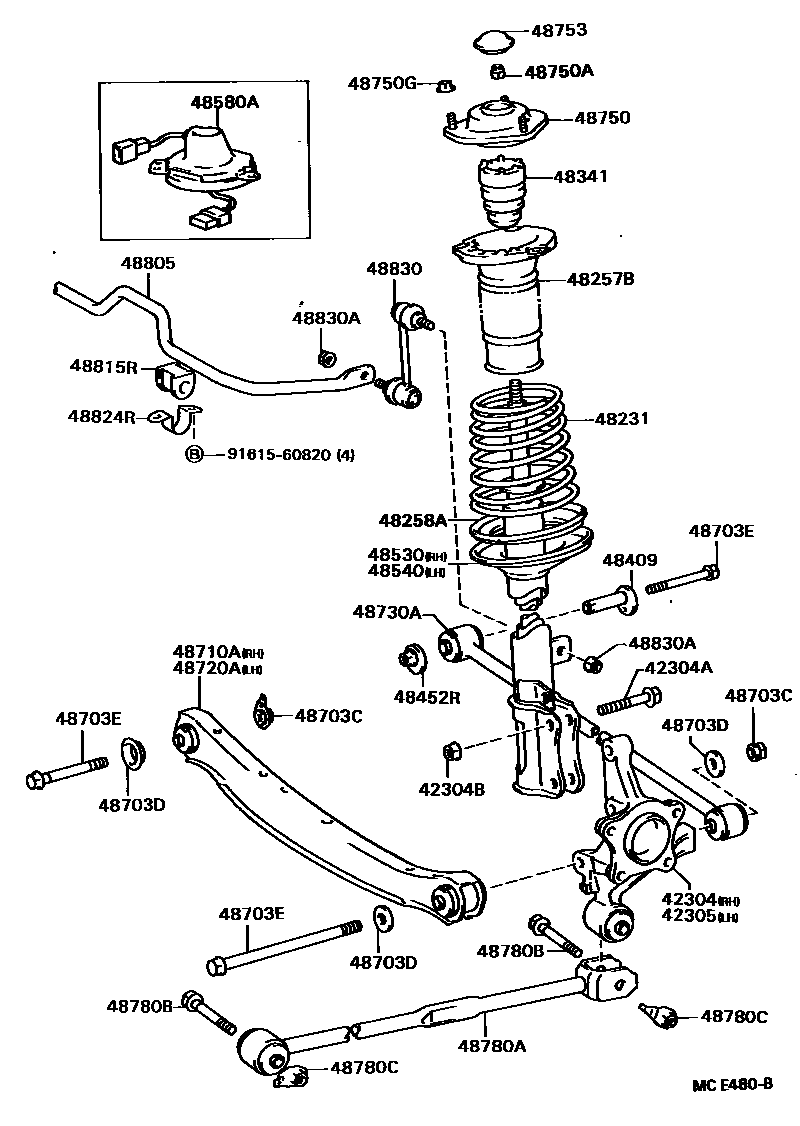

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42304ABOLT (FOR REAR AXLE CARRIER)
42304BNUT (FOR REAR AXLE CARRIER)
42305CARRIER SUB-ASSY, REAR AXLE, LH
48257BINSULATOR, REAR COIL SPRING, UPPER
48258AINSULATOR, REAR COIL SPRING, LOWER
48341BUMPER, REAR SPRING
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
48540ABSORBER ASSY, SHOCK, REAR LH
48580ACAP ASSY, SHOCK ABSORBER
48703CNUT(FOR REAR SUSPENSION ARM)
48703DWASHER(FOR REAR SUSPENSION ARM)
CARRIER SIDE
BODY SIDE
48703EBOLT(FOR REAR SUSPENSION ARM)
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
sub48710-20220
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
sub48720-20090
48730AARM ASSY, REAR SUSPENSION, NO.2
48750SUPPORT ASSY, REAR SUSPENSION
48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
48750GNUT(FOR REAR SUSPENSION SUPPORT)
48753COVER, REAR SUSPENSION SUPPORT
48780AROD ASSY, STRUT, REAR
48780BBOLT(FOR STRUT ROD)
48780CNUT(FOR STRUT ROD)
CARRIER SIDE
BODY SIDE
48805BAR SUB-ASSY, REAR STABILIZER
48824RBRACKET, STABILIZER(FOR REAR)
48830LINK ASSY, REAR STABILIZER
48830ANUT(FOR REAR STABILIZER LINK)
9161560820
main91615-60820
32 parts on this diagram · 1 diagram in section
