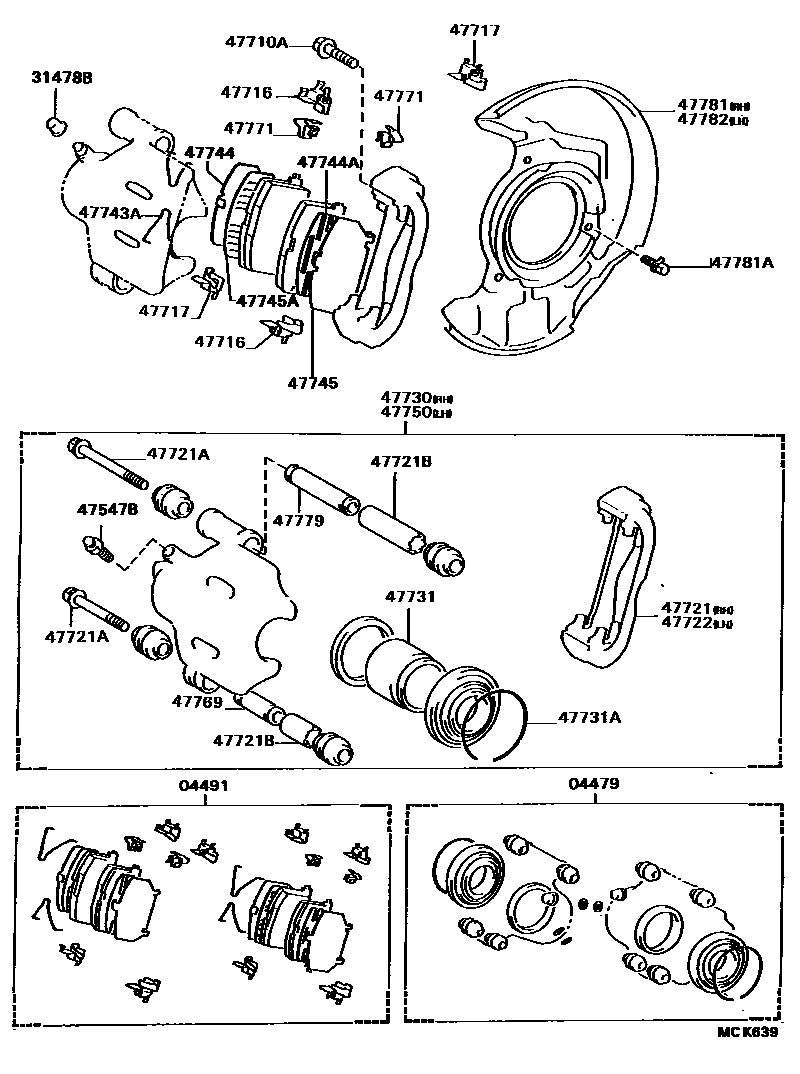

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20070iST160,163198708-198908

main04479-20080iST162198708-198908

main04479-32030iST162..GT198708-198908

04491PAD KIT, DISC BRAKE, FRONT

main04491-20180iST160,163198708-198807

sub04491-20181

main04491-20490iST162198708-198906

sub04491-20491

main04491-20491iST162198906-198907

sub04491-20492

main04491-20492iST162198907-198908

sub04465-20030

main04491-20521iST163198907-198908

sub04491-20522

main04491-20550iST163198807-198812

sub04491-20551

main04491-20551iST163198812-198907

sub04491-20521

main04491-32200iST162..GT198708-198812

sub04491-32201

main04491-32201iST162198812-198908

sub04465-32091

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iST16#198708-198908

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040iST162198708-198908

main47547-20010iST160,163198708-198908

main47547-20010iST162..GT198708-198908

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12040iST16#198708-198908

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20050iST160,163198708-198812

sub47716-20111

main47716-20111iST163198812-198908

sub47716-32031

main47716-32010iST162198708-198812

sub47716-32031

main47716-32031iST162198812-198908

main47716-32040iST162198708-198812

sub47716-32041

main47716-32041iST162198812-198908

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20030iST160,163198708-198812

sub47717-20061

main47717-20061iST163198812-198908

sub47717-32031

main47717-32010iST162198708-198812

sub47717-32031

main47717-32031iST162198812-198908

main47717-32040iST162198708-198812

sub47717-32041

main47717-32041iST162198812-198908

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20090iST160,163198708-198908

main47721-20120iST162198708-198908

main47721-20140iST162..GT198708-198908

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iST162198708-198908

main90119-09004iST162198708-198908

main90119-09007iST160,163198708-198908

main90119-09008iST160,163198708-198908

main90119-10014iST162..GT198708-198908

main90119-10249iST162198708-198908

47721BCOLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90387-15004iST160,163198708-198908

main90387-15005iST160,163198708-198908

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-20090iST160,163198708-198908

main47721-20120iST162198708-198908

main47721-20140iST162198708-198908

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20190iST160,163198708-198908

main47730-20220iST162198708-198908

main47730-20240iST162..GT198708-198908

47731PISTON, FRONT DISC BRAKE

main47731-20090iST160,163198708-198908

main47731-20100iST162198708-198908

main47731-32040iST162..GT198708-198908

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003iST16#198708-198908

main90522-66001iST162..GT198708-198908

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-32030iST162..GT198708-198908

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-20050iST160,163198708-198908

main47744-20060iST162198708-198907

sub47744-32010

main47744-32041iST162198708-198908

main47745-17020iST162198907-198908

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-17010iST162198708-198812

main47742-20090iST162198907-198908

main47742-32040iST163198812-198908

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47742-32021iST162198708-198901

main47742-32022iST162198901-198908

main47744-20050iST160,163198708-198807

main47745-17020iST162198708-198812

main47745-20090iST162198907-198908

main47745-32020iST162198708-198901

main47745-32021iST162198901-198908

main47745-32040iST16#198812-198908

47745ASHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE)

main47742-17010iST162198907-198908

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20180iST160,163198708-198908

main47750-20210iST162198708-198908

main47750-20230iST162..GT198708-198908

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-20010iST160,163198708-198908

main47769-32010iST162198708-198908

main47769-40010iST162..GT198708-198908

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-20030iST163198708-198908

sub47771-32010

main47771-20060iST163198807-198907

main47771-32010iST162198708-198908

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-20010iST160,163198708-198908

main47779-32010iST162198708-198908

main47779-40010iST162198708-198908

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-32020iST162198708-198901

sub47703-32021

main47703-32021iST162198901-198908

main47781-20140iST160,163198708-198908

main47781-20150iST162198708-198908

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iST16#198708-198908

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-32020iST162..GT198708-198901

sub47704-32021

main47704-32021iST162198901-198908

main47782-20140iST160,163198708-198908

main47782-20150iST162198708-198908

26 parts on this diagram · 2 diagrams in section
