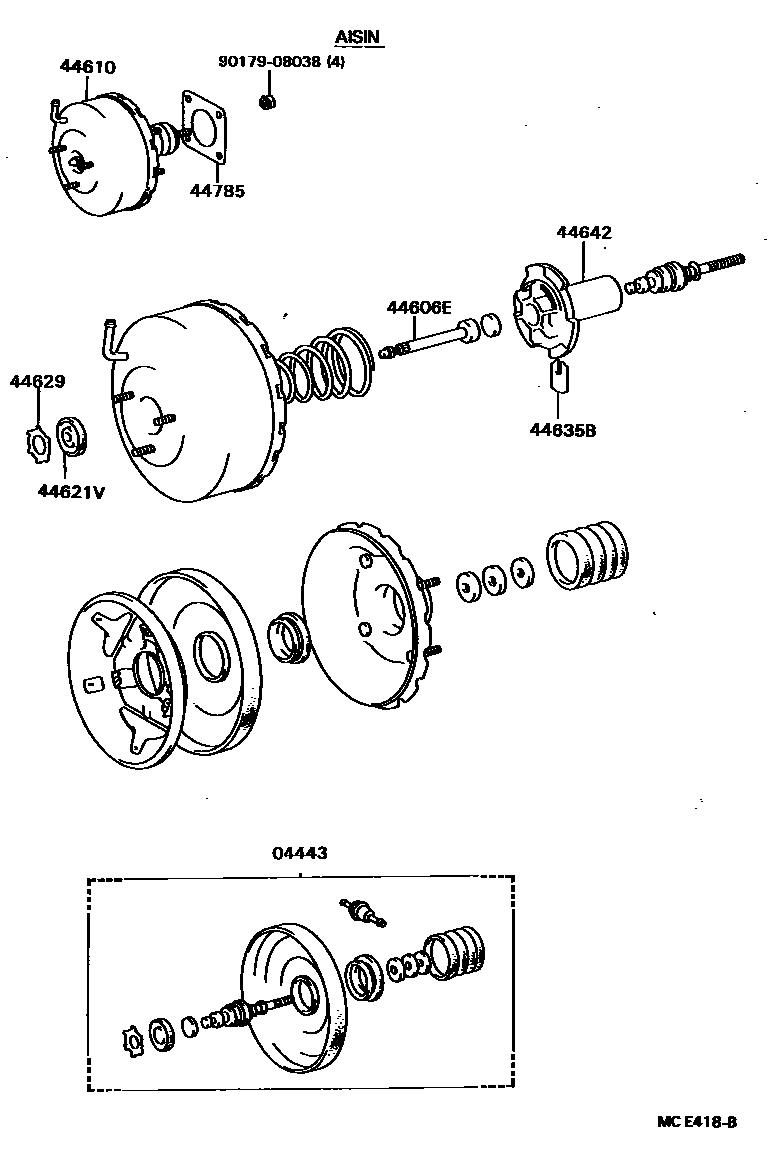

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1��(ESC) 0004 1

04443BOOSTER KIT, BRAKE

main04443-20610iST16#198708-198806

AISIN

main04443-20620iST16#198708-198806

JKC

main04443-20640iST162198708-198908

main04443-20800iST16#198806-198908

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520iST16#198708-198908

main44606-20800iST162..GT198708-198908

44610BOOSTER ASSY, BRAKE

main44610-20860iST162..GT198708-198908

main44610-2B080iST16#198708-198806

sub44610-2B320

main44610-2B320iST16#198806-198908

sub44610-2B360

44621VSEAL, BOOSTER BODY

main44621-14030iST162..GT198708-198908

main44621-28120iST16#198708-198908

44629RING, CIRCULAR INTERNAL

main44628-28120iST16#198708-198908

main44628-60010iST162..GT198708-198908

44635BKEY, VALVE STOPPER

main44635-20800iST162..GT198708-198908

main44635-28120iST16#198708-198908

44642PISTON, BRAKE BOOSTER

main44642-20800iST162..GT198708-198908

main44642-32030iST16#198708-198908

44785GASKET, BRAKE BOOSTER

main44785-32010iST16#198708-198908

9017908038

main90179-08038

9 parts on this diagram · 4 diagrams in section
