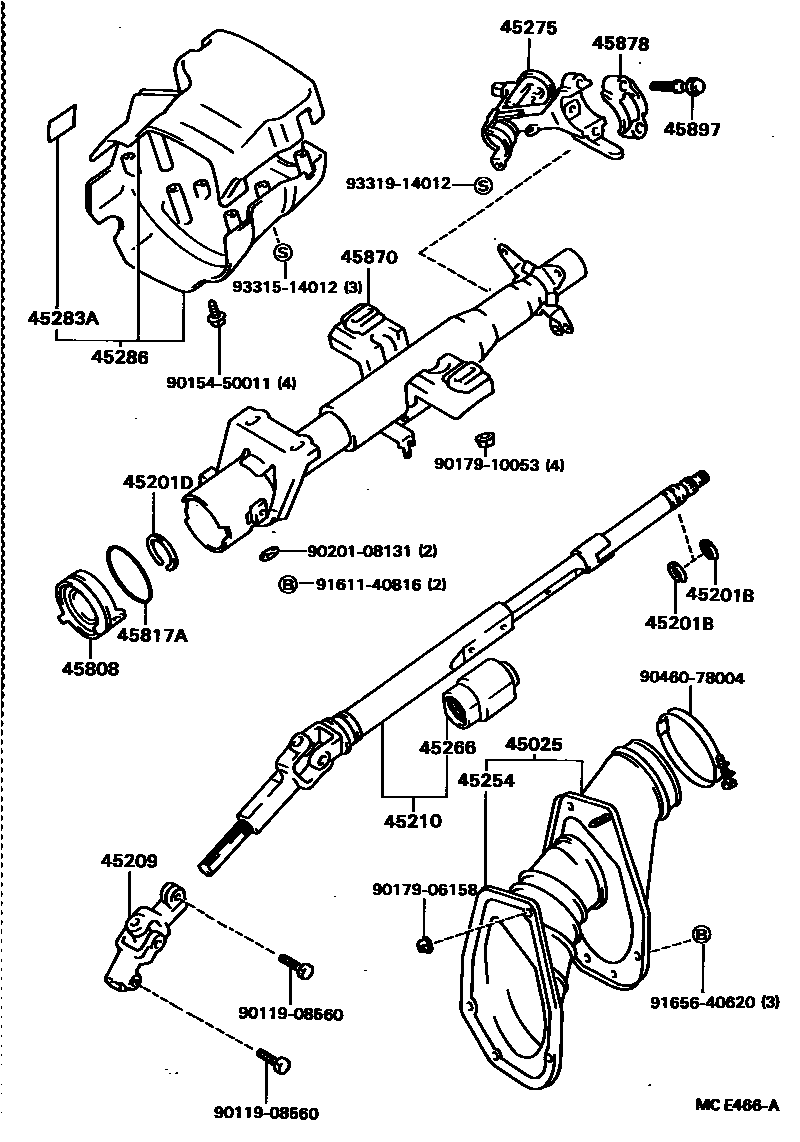

STEERING COLUMN & SHAFT
45025COVER, STEERING INTERMEDIATE SHAFT
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45201DRING(FOR STEERING MAIN SHAFT)
45209YOKE SUB-ASSY, STEERING SLIDING
sub45209-16010
45254SHIELD, STEERING COLUMN HOLE
45266COVER, STEERING INTERMEDIATE SHAFT DUST
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45817STOPPER, STEERING SHAFT THRUST
45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)
45878BRACKET, STEERING COLUMN UPPER SUPPORT
45897BOLT, STEERING LOCK SET
9011908560
main90119-08560
9015450011
main90154-50011
9017906158
main90179-06158
9017910053
main90179-10053
9020108131
main90201-08131
9046078004
main90460-78004
9161140816
main91611-40816
9165640620
main91656-40620
9331514012
main93315-14012
9331914012
main93319-14012
26 parts on this diagram · 3 diagrams in section
