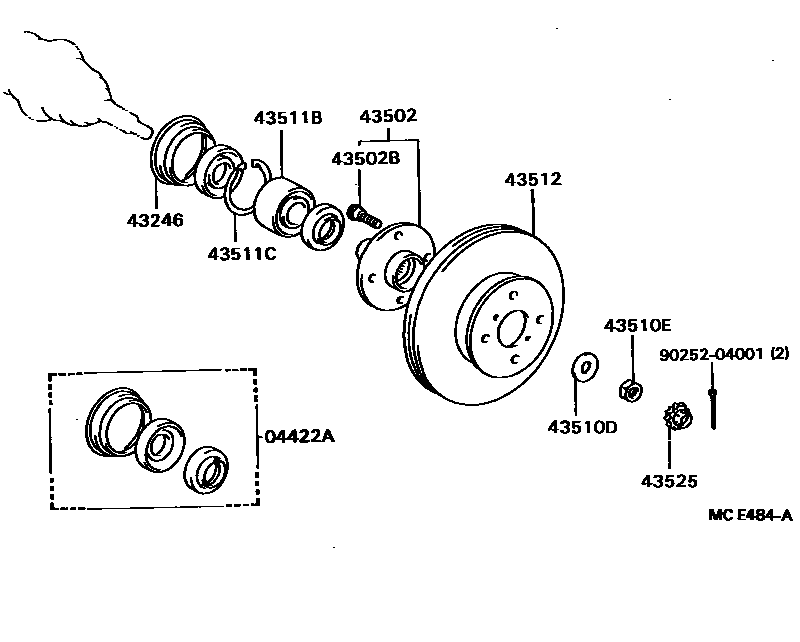

FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-20010iST16#198708-198908

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-20010iST16#198708-198908

43502HUB SUB-ASSY, FRONT AXLE

main43502-20030iST160198708-198802

sub43502-12100

sub43502-20110

main43502-20040iST162198708-198804

sub43502-32040

main43502-20080iST160,163198802-198908

sub43502-20110

main43502-32040iST162198804-198908

sub43502-32050

main43502-32050iST162198908-198908

main43503-32010iST162198708-198908

sub43503-32020

main43503-32020iST162198908-198908

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iST160,163198708-198908

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20012iST16#198708-198908

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001iST16#198708-198908

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38003iST16#198708-198908

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-79002iST16#198708-198908

main90521-79003iST16#198708-198908

main90521-79004iST16#198708-198908

main90521-79005iST16#198708-198908

main90521-79006iST16#198708-198908

43512DISC, FRONT

main43512-20120iST162198708-198908

sub43512-20300

main43512-20140iST160198708-198710

sub43512-20180

main43512-20180iST160,163198710-198908

main43512-20190iST162..GT198708-198908

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iST16#198708-198908

9025204001

main90252-04001

11 parts on this diagram · 1 diagram in section
