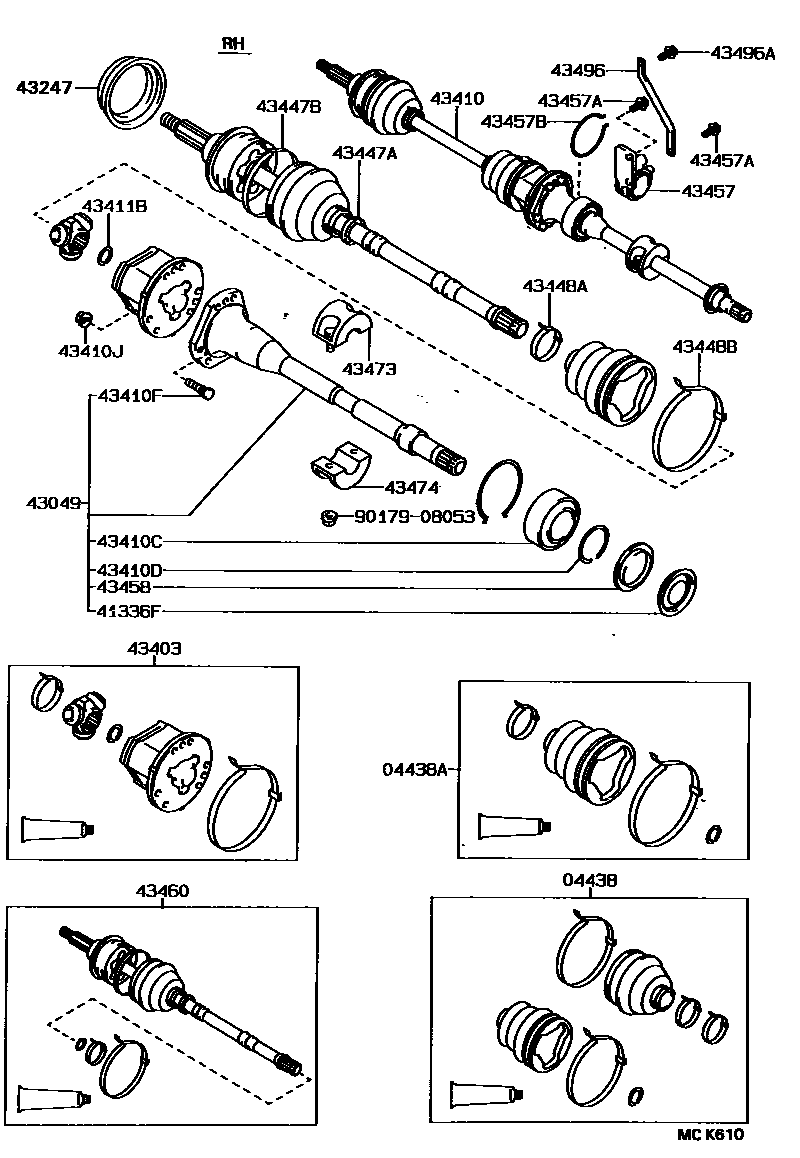

FRONT DRIVE SHAFT

0001 1 0002 1 0003 1 0004 1

04438BOOT KIT, FRONT DRIVE SHAFT

main04438-12031iST16#..EX,GX,VX198708-198908

main04438-20010iST162..GT198708-198803

sub04438-32050

main04438-32050iST162..GT198803-198908

04438ABOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT

main04438-12050iST162..4FC..VX198708-198908

main04438-32040iST162..GT198708-198908

41336FCOVER, DUST(FOR FRONT AXLE INBOARD JOINT SET)

main41336-20011iST16#198708-198908

sub41336-20050

main41336-32020iST16#198708-198908

43049SHAFT SUB-ASSY, FRONT DRIVE FLANGE

main43049-20030iST162..5F..VX198708-198811

main43049-20050iST16#..GX,VX198811-198908

main43049-32020iST160,163;ST162..4FC..VX198708-198811

sub43049-20050

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-32011iST16#198708-198908

sub43247-33010

43403JOINT SET, FRONT AXLE INBOARD, RH

main43403-39016iST16#..EX,GX,VX198708-198908

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-20040iST160,163;ST162..4FC..VX198708-198811

sub43410-20041

sub43525-20030

sub90179-22020

main43410-20050iST162..5F..VX198708-198811

sub43410-20051

sub43525-20030

sub90179-22020

main43410-20061iST162..4FC..GT198708-198908

sub43410-20062

sub43525-20030

sub90179-22020

main43410-20071iST162..5F..GT198708-198908

sub43410-20072

sub43525-20030

sub90179-22020

main43410-20180iST16#..GX,VX198811-198908

sub43410-20181

sub43525-20030

sub90179-22020

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90369-36001iST16#198708-198908

sub90363-36001

43410DRING, SHAFT SNAP (FOR FRONT DRIVE SHAFT)

main90520-33008iST16#198708-198908

43410FBOLT, SERRATION (FOR FRONT DRIVE SHAFT)

main90114-08006iST16#..EX,GX,VX198708-198908

43410JNUT (FOR FRONT DRIVE SHAFT)

main90179-08053iST16#..EX,GX,VX198708-198908

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-22005iST16#..EX,GX,VX198708-198908

main90520-25034iST162..GT198708-198908

43447ACLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main42345-14010iST16#..EX,GX,VX198708-198908

main90949-01108iST162..GT198708-198908

43447BCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING)

main90949-01076iST16#..EX,GX,VX198708-198908

sub42345-12160

main90949-01107iST162..GT198708-198908

43448ACLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14010iST16#..EX,GX,VX198708-198908

main90949-01108iST162..GT198708-198908

43448BCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)

main42345-14020iST16#..EX,GX,VX198708-198908

main42346-22010iST162..GT198708-198908

43457BRACKET, DRIVE SHAFT BEARING

main43457-20022iST16#198708-198908

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10202iST16#198708-198908

sub90105-10361

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iST16#198708-198908

43458COVER, FRONT DRIVE SHAFT DUST

main43458-20011iST16#198708-198908

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-29055iST16#..GX,VX198708-198908

sub43470-29056

sub43525-20030

sub90179-22020

main43470-29065iST162..5F..VX198708-198811

sub43470-29066

sub43525-20030

sub90179-22020

main43470-29285iST162..4FC..GT198708-198908

sub43470-29286

sub43525-20030

sub90179-22020

main43470-29295iST162..5F..GT198708-198908

sub43470-29296

sub43525-20030

sub90179-22020

43473DAMPER, FRONT DRIVE SHAFT W/BOLT

main43473-20020iST16#..GX,VX198811-198908

43474DAMPER, DRIVE SHAFT

main43474-20030iST16#..GX,VX198811-198908

43496STAY, FRONT DRIVE SHAFT BEARING BRACKET, NO.1

main43496-32010iST162198708-198908

43496ABOLT (FOR DRIVE SHAFT BEARING BRACKET STAY)

main90105-10202iST162198708-198908

sub90105-10361

9017908053

main90179-08053

26 parts on this diagram · 4 diagrams in section
