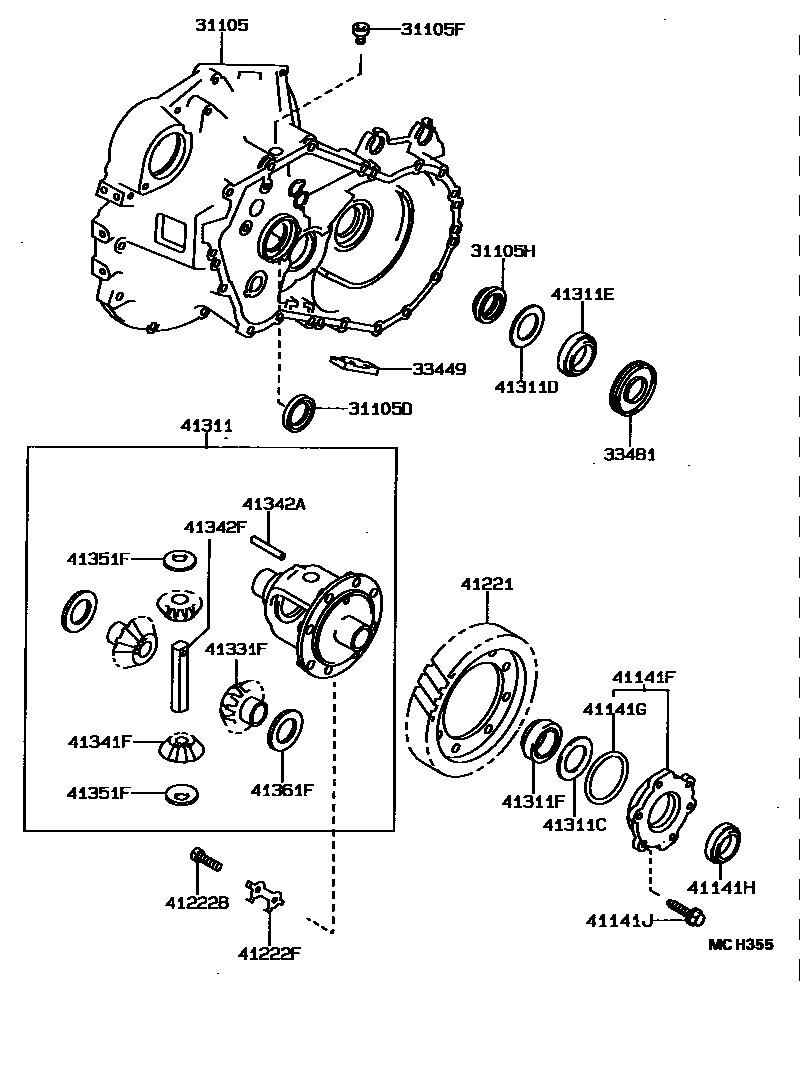

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1S50,52,53 0002 1A140L,A140E

31105CASE SUB-ASSY, TRANSAXLE(MTM)

main31105-32014iST160,162..5F..(EX,GT,GX)198708-198908

sub31105-32051

sub33134-32020

sub33326-32020

sub90560-42001

sub90560-48002

main31105-32020iST162,163..5F..(GX,VX)198708-198908

sub31105-32061

sub33134-32020

sub33326-32020

sub90560-42001

sub90560-48002

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-30002iST16#..5F198708-198908

sub90311-30006

31105FPLUG(FOR TRANSAXLE CASE)

main90341-10065iST16#..5F198708-198908

31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90311-35014iST16#..5F198708-198908

sub90311-35026

33449MAGNET, TRANSMISSION

main33449-32010iST16#..5F198708-198908

sub33449-32020

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-32010iST16#..5F198708-198908

41141FRETAINER, FRONT DIFFERENTIAL SIDE BEARING

main41101-32010iST16#..5F198708-198908

sub41101-32011

sub90311-35048

main41141-32040iST16#..4FC198708-198709

main41141-32041iST16#..4FC198709-198908

41141GRING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

main90301-63004iST16#..5F198708-198908

main90301-99018iST16#..4FC198708-198908

41141HSEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)

main90311-35014iST16#..5F198708-198908

sub90311-35026

main90311-35019iST16#..4FC198708-198908

41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

main90105-08061iST16#..5F198708-198908

sub91511-C0825

main91611-60825iST16#..4FC198708-198908

sub91611-B0825

41221GEAR, FRONT DIFFERENTIAL RING

main41221-20220iST162..5F..GT198708-198908

main41221-32030iST160,163;ST162..4FC..VX198708-198908

main41221-32040iST162..5F..VX;ST162..4FC..GT198708-198908

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003iST16#198708-198908

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-32010iST16#198708-198908

41311CASE, FRONT DIFFERENTIAL

main41301-32010iST16#..5F198708-198908

sub41301-32060

sub33481-32060

sub33481-32070

main41301-32020iST16#..4FC198708-198709

sub41301-32H00

sub90564-49001

sub90564-49002

sub90564-49003

sub90564-49004

sub90564-49005

sub90564-49006

sub90564-49007

sub90564-49008

sub90564-49009

sub90564-49010

sub90564-49011

sub90564-49012

sub90564-49013

sub90564-49014

sub90564-49015

sub90564-49016

sub90564-49017

sub90564-49018

sub90564-49019

main41301-32021iST16#..4FC198709-198811

sub41301-32022

main41301-32022iST16#..4FC198811-198903

sub41301-32023

main41301-32023iST16#..4FC198903-198908

sub41301-32071

41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)

main90564-45001iST16#..5F198708-198908

main90564-45002iST16#..5F198708-198908

main90564-45003iST16#..5F198708-198908

main90564-45004iST16#..5F198708-198908

main90564-45005iST16#..5F198708-198908

main90564-45006iST16#..5F198708-198908

main90564-45007iST16#..5F198708-198908

main90564-45008iST16#..5F198708-198908

main90564-45009iST16#..5F198708-198908

main90564-45010iST16#..5F198708-198908

main90564-45011iST16#198708-198908

main90564-45012iST16#..5F198708-198908

main90564-45013iST16#..5F198708-198908

main90564-45014iST16#..5F198708-198908

main90564-45015iST16#..5F198708-198908

main90564-45016iST16#..5F198708-198908

main90564-45017iST16#..5F198708-198908

main90564-45018iST16#..5F198708-198908

main90564-45019iST16#..5F198708-198908

41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)

main90564-45001iST16#..4FC198708-198709

main90564-45002iST16#..4FC198708-198709

main90564-45003iST16#..4FC198708-198709

main90564-45004iST16#..4FC198708-198709

main90564-45005iST16#..4FC198708-198709

main90564-45006iST16#..4FC198708-198709

main90564-45007iST16#..4FC198708-198709

main90564-45008iST16#..4FC198708-198709

main90564-45009iST16#..4FC198708-198709

main90564-45010iST16#..4FC198708-198709

main90564-45011iST16#198708-198908

main90564-45012iST16#..4FC198708-198709

main90564-45013iST16#..4FC198708-198709

main90564-45014iST16#..4FC198708-198709

main90564-45015iST16#..4FC198708-198709

main90564-45016iST16#..4FC198708-198709

main90564-45017iST16#..4FC198708-198709

main90564-45018iST16#..4FC198708-198709

main90564-45019iST16#..4FC198708-198709

main90564-49001iST16#..4FC198709-198908

main90564-49002iST16#..4FC198709-198908

main90564-49003iST16#..4FC198709-198908

main90564-49004iST16#..4FC198709-198908

main90564-49005iST16#..4FC198709-198908

main90564-49006iST16#..4FC198709-198908

main90564-49007iST16#..4FC198709-198908

main90564-49008iST16#..4FC198709-198908

main90564-49009iST16#..4FC198709-198908

main90564-49010iST16#..4FC198709-198908

main90564-49011iST16#..4FC198709-198908

main90564-49012iST16#..4FC198709-198908

main90564-49013iST16#..4FC198709-198908

main90564-49014iST16#..4FC198709-198908

main90564-49015iST16#..4FC198709-198908

main90564-49016iST16#..4FC198709-198908

main90564-49017iST16#..4FC198709-198908

main90564-49018iST16#..4FC198709-198908

main90564-49019iST16#..4FC198709-198908

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-40016iST16#198708-198908

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-40023iST16#198708-198908

sub90366-40064

main90366-44001iST16#..4FC198709-198908

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-32010iST16#198708-198908

41341FPINION, FRONT DIFFERENTIAL

main41341-30011iST16#198708-198908

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-06058iST16#198708-198908

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-20050iST16#198811-198908

sub41342-32020

main41342-32010iST16#198708-198811

sub41342-20050

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-32010iST16#198708-198908

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-22020iST16#198708-198908

main41361-22030iST16#198708-198908

main41361-22040iST16#198708-198908

main41361-22140iST16#198708-198908

main41361-22150iST16#198708-198908

main41361-22160iST16#198708-198908

24 parts on this diagram · 2 diagrams in section
