DISC WHEEL & WHEEL CAP

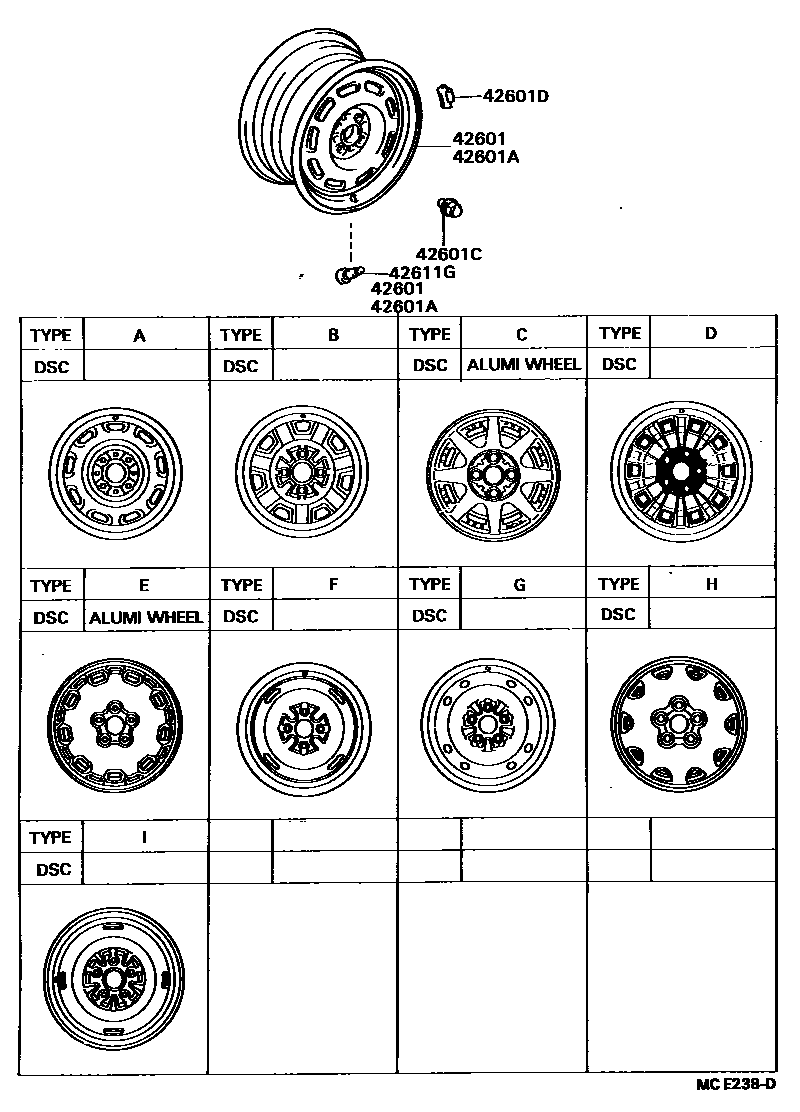

Parts diagram
42601WHEEL, DISC
main42611-20330-03i198708-198908
sub42611-20330
main42611-20350i198708-198908
main42611-20360-01i198708-198908
sub42611-20360
main42611-20410-03i198708-198908
sub42611-20410
main42611-20470i198708-198908
42601AWHEEL, DISC (FOR SPARE)
main42611-16200i198708-198908
main42611-20380i198708-198712
sub42611-20610
main42611-20610i198712-198908
42601CNUT, HUB (FOR AXLE)
main90942-01021i198708-198908
main90942-01058i198708-198908
main90942-01058i198708-198908
main90942-01059i198708-198908
main90942-01060i198708-198908
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
main90942-03017i198708-198908
main90942-03020i198708-198908
main90942-03022i198708-198908
main90942-03025i198708-198908
main90942-03027i198708-198908
main90942-03029i198708-198908
main90942-03031i198708-198908
main90942-03041i198708-198908
main90942-03098i198708-198908
main90942-03099i198708-198908
main90942-03100i198708-198908
main90942-03101i198708-198908
main90942-03102i198708-198908
main90942-03108i198708-198908
main90942-03109i198708-198908
main90942-03146i198708-198908
main90942-03147i198708-198908
main90942-03148i198708-198908
main90942-03149i198708-198908
main90942-03150i198708-198908
main90942-03151i198708-198908
main90942-03152i198708-198908
main90942-03153i198708-198908
main90942-03154i198708-198908
main90942-03155i198708-198908
main90942-03156i198708-198908
main90942-03157i198708-198908
main90942-03158i198708-198908
main90942-03159i198708-198908
main90942-03160i198708-198908
main90942-03161i198708-198908
main90942-03167i198708-198908
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009i198708-198908

5 parts on this diagram · 2 diagrams in section
