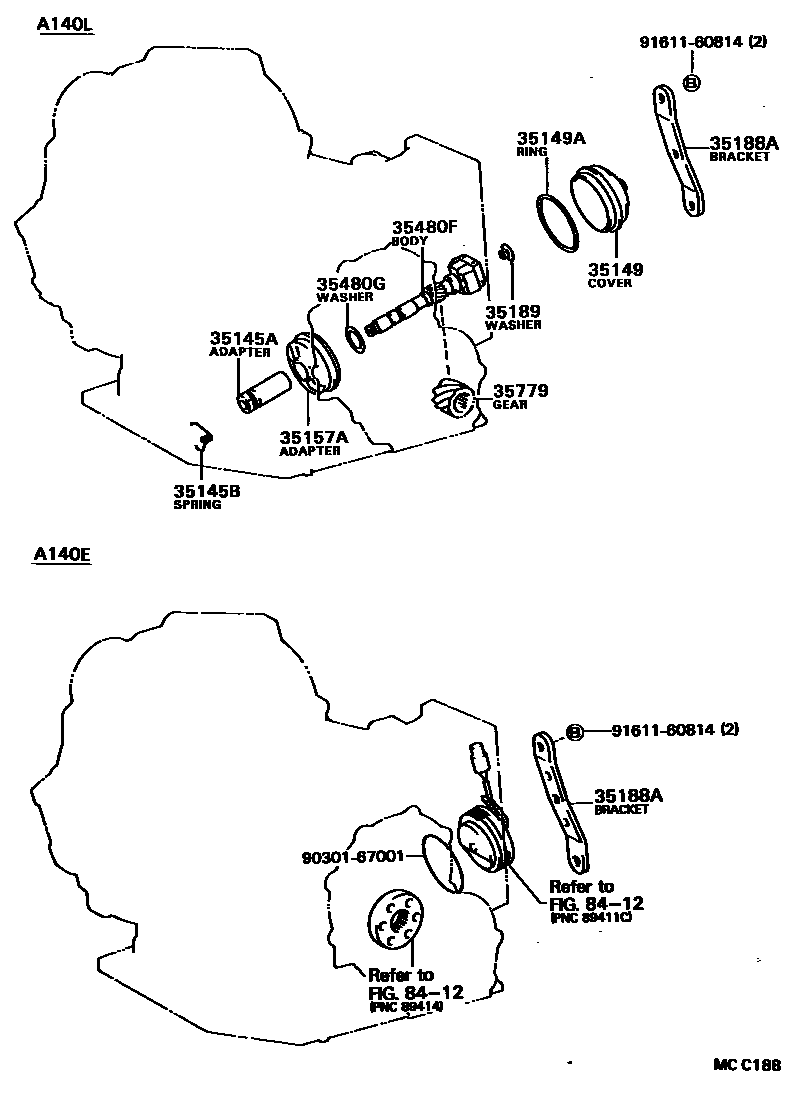

REAR OIL PUMP & GOVERNOR (ATM)

35145AADAPTER, GOVERNOR PRESSURE

main35145-32011iST160,163..4FC198708-198908

35145BSPRING, TORSION(FOR GOVERNOR PRESSURE ADAPTER)

main90508-18034iST160,163..4FC198708-198908

35149COVER, GOVERNOR

main35149-32010iST160,163..4FC198708-198908

35149ARING, O (FOR GOVERNOR COVER)

main90301-67001iST160,163..4FC198708-198908

35157AADAPTER, GOVERNOR BODY

main35157-32011iST160,163..4FC198708-198908

35188ABRACKET, GOVERNOR COVER

main35188-32011iST16#..4FC198708-198908

35189WASHER, GOVERNOR THRUST, NO.1

main35189-32010iST160..4FC198708-198803

sub35189-32011

main35189-32011iST160,163..4FC198803-198908

35480FBODY ASSY, GOVERNOR

main35480-32012iST160,163..4FC198708-198908

sub35480-32013

35480GWASHER, PLATE (FOR GOVERNOR BODY)

main90201-25003iST160,163..4FC198708-198908

35779GEAR, GOVERNOR DRIVE

main35779-32010iST160,163..4FC198708-198908

8412

9030167001

main90301-67001

9161160814

main91611-60814

13 parts on this diagram · 1 diagram in section
