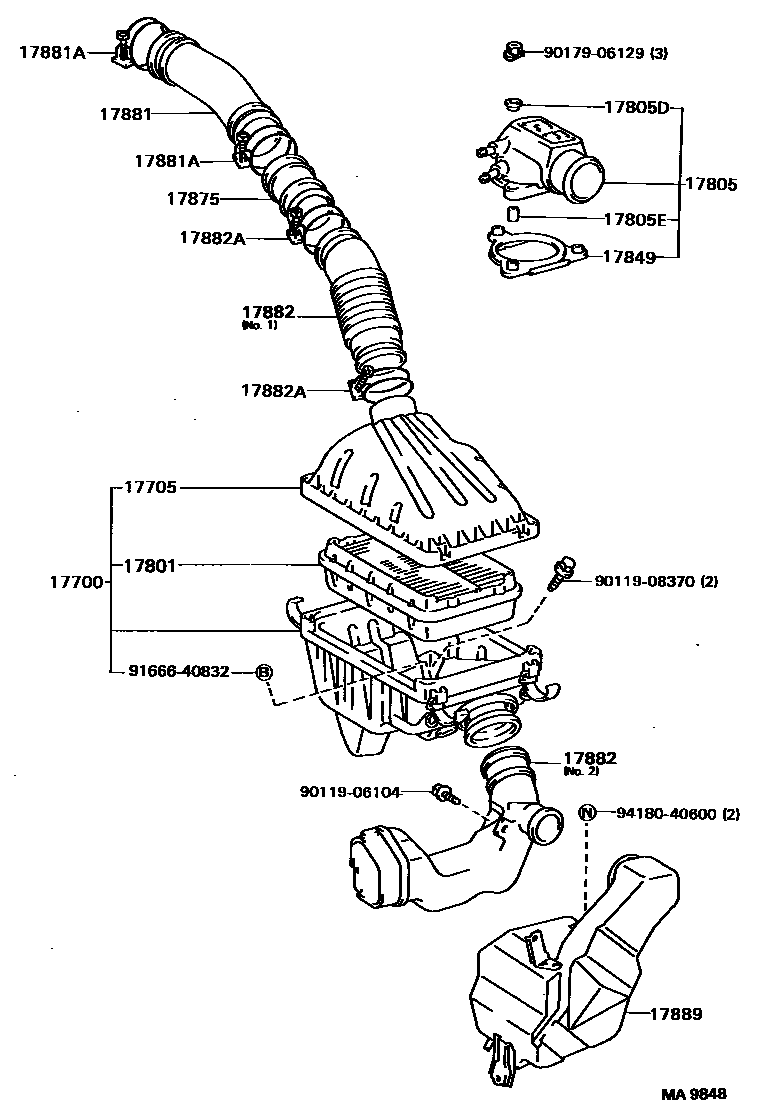

AIR CLEANER
17805CONNECTOR SUB-ASSY, INTAKE AIR
17805DGROMMET(FOR INTAKE AIR CONNECTOR)
17805ECOLLAR(FOR INTAKE AIR CONNECTOR)
17849GASKET, INTAKE AIR CONNECTOR
17875PIPE, INTAKE AIR CONNECTOR
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
THROTTLE BODY SIDE
THROTTLE BODY SIDE
AIR CLEANER SIDE
AIR FLOW METER SIDE
17882HOSE, AIR CLEANER, NO.2
NO.2
NO.1
NO.2
NO.1
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17889BOX, AIR CLEANER HOSE, NO.2
9011906104
main90119-06104
9011908370
main90119-08370
9017906129
main90179-06129
9166640832
main91666-40832
9418040600
main94180-40600
18 parts on this diagram · 4 diagrams in section
