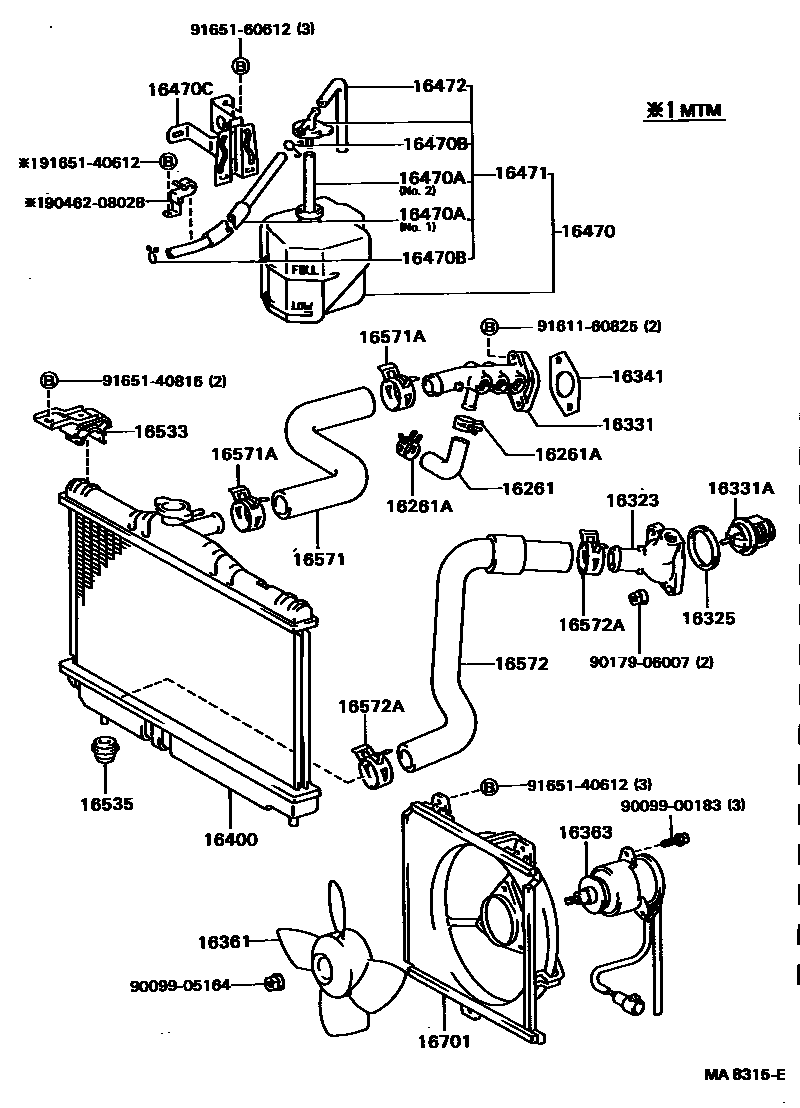

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

16261HOSE, WATER BY-PASS

main16261-63010i1SILU..ST160198708-198805

main16261-74010i3SFE..ST162198708-198908

main16261-74040i4SFI..ST163198805-198908

main16261-88360i3SGELU..ST162198708-198908

main16261-88361i3SGELU..ST162198908-198908

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-21001i1SILU..ST160198708-198805

sub90467-21006

main90467-22003i3S#,4SFI..ST162,163198708-198908

sub90467-21010

16323HOUSING, WATER INLET

main16323-63020i1SILU..ST160198708-198805

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i1SILU,3S#,4SFI..ST16#198708-198908

sub16325-63011

16331OUTLET, WATER

main16304-74010i3SGELU..ST162198708-198809

sub16304-74011

main16304-74011i3SGELU..ST162198809-198908

main16304-74030i3SFE..ST162198708-198908

main16304-74051i4SFI..ST163198805-198908

main16304-74061i4SFI..ST163198805-198908

main16331-63060i1SILU..ST160..5F198708-198805

main16331-63070i1SILU..ST160..4FC198708-198805

16331ATHERMOSTAT

main90916-03046i1SILU,3S#,4SFI..ST16#198708-198908

16341GASKET, WATER OUTLET

main16341-63010i1SILU,3S#,4SFI..ST16#198708-198907

sub16341-63011

main16341-63011i3S#,4SFI..ST16#198907-198908

sub16341-74020

16361FAN

main16361-63040i1SILU,3S#,4SFI..ST16#..5F198708-198908

main16361-64010i1SILU,3S#,4SFI..ST16#..4FC198708-198908

16363MOTOR, COOLING FAN

main16363-10010i1SILU,3S#,4SFI..ST16#..5F198708-198908

main16363-16010i1SILU,3S#,4SFI..ST16#..4FC198708-198908

16400RADIATOR ASSY

main16400-63070i1SILU..ST160..5F198708-198805

sub16400-63080

main16400-74060i3SGELU..ST162..5F198708-198908

sub16400-74070

main16400-74210i3SGELU..ST162..4FC198708-198908

main16400-74260i3SFE,4SFI..ST162,163..5F198708-198908

sub16400-74070

main16400-74290i1SILU..ST160..4FC198708-198805

sub16400-63130

main16400-74300i3SFE,4SFI..ST162,163..4FC198708-198908

sub16400-74090

16470TANK ASSY, RADIATOR RESERVE

main16470-74010i1SILU,3S#,4SFI..ST16#198708-198908

sub16470-74170

main16470-74080i3SGELU..ST162198708-198908

main16470-74080i3SFE..ST162198808-198908

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-74080i3SGELU..ST162198708-198908

main90445-12043i3SGELU..ST162198708-198908

sub90445-12078

main90445-12078i1SILU,3S#,4SFI..ST16#198708-198908

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1SILU,3S#,4SFI..ST16#198708-198908

16470CBRACKET(FOR RADIATOR RESERVE TANK)

main16611-74010i1SILU,3S#,4SFI..ST16#198708-198908

16471CAP SUB-ASSY, RESERVE TANK

main16405-74010i1SILU,3S#,4SFI..ST16#198708-198908

main16405-74080i3SGELU..ST162198708-198908

main16405-74080i3SFE..ST162198808-198908

16472HOSE, BREATHER

main85338-14030i1SILU,3S#,4SFI..ST16#198708-198908

main85338-74040i3SGELU..ST162198708-198908

16533SUPPORT, RADIATOR, UPPER

main16533-74010i1SILU,3S#,4SFI..ST16#..5F198708-198908

main16533-74020i1SILU,3S#,4SFI..ST16#..4FC198708-198908

16535SUPPORT, RADIATOR, LOWER

main16535-74010i1SILU,3S#,4SFI..ST16#..5F198708-198908

sub90916-04002

main16535-74020i1SILU,3S#,4SFI..ST16#..4FC198708-198908

16571HOSE, RADIATOR, INLET

main16571-63020i1SILU..ST160198708-198805

main16571-74080i3S#,4SFI..ST162,163198708-198908

sub16571-74090

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i1SILU,3S#,4SFI..ST16#198708-198908

sub90467-34003

16572HOSE, RADIATOR, OUTLET

main16572-74030i1SILU,3S#,4SFI..ST16#198708-198901

main16572-74120i3S#,4SFI..ST16#198901-198908

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i1SILU,3S#,4SFI..ST16#198708-198908

sub90467-34003

16701SHROUD SUB-ASSY, FAN

main16711-74020i1SILU,3S#,4SFI..ST16#..5F198708-198908

main16711-74050i1SILU,3S#,4SFI..ST16#..4FC198708-198908

9009900183

main90099-00183

9009905164

main90099-05164

9017906007

main90179-06007

9046208028

main90462-08028

9161160825

main91611-60825

9165140612

main91651-40612

9165140816

main91651-40816

9165160612

main91651-60612

31 parts on this diagram · 5 diagrams in section
