CAMSHAFT & VALVE

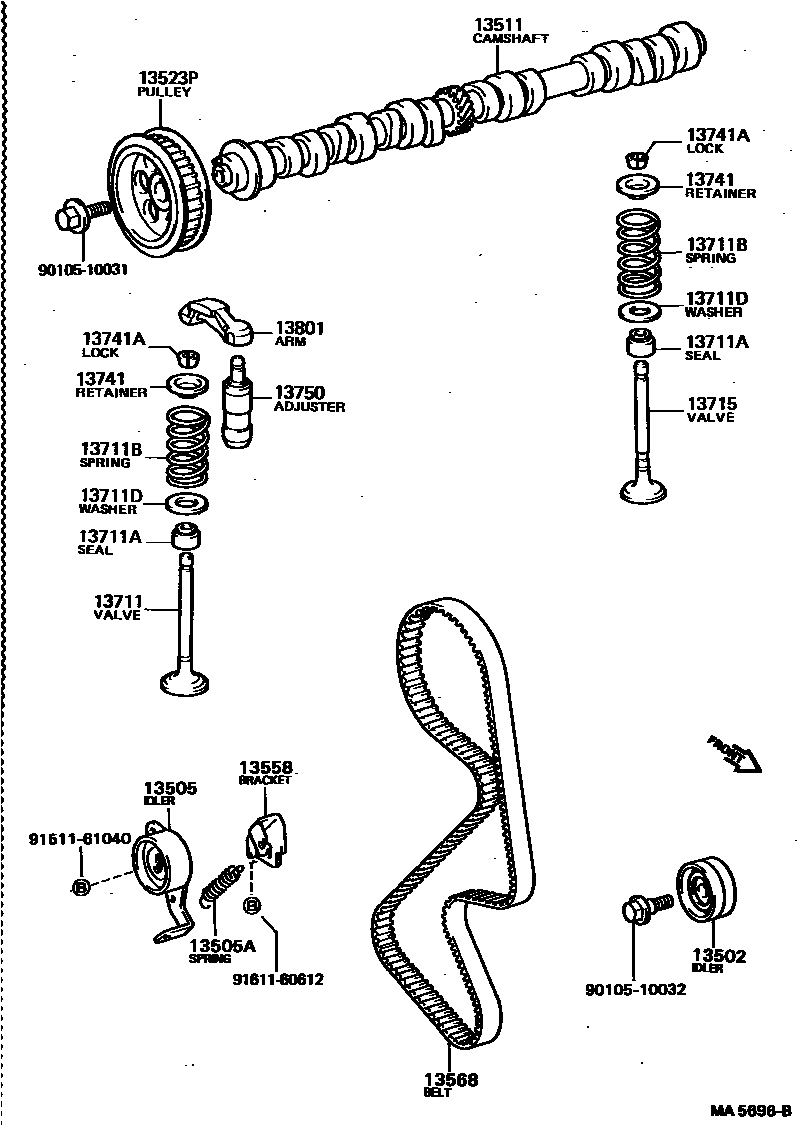

Parts diagram
13502IDLER SUB-ASSY, TIMING BELT, NO.2
main13503-63010i198708-198908
*53
sub13503-63011
main13503-63011i198810-198908
main13503-88360i198708-198908
NSK
sub13503-88380
main13503-88380i198708-198908
*54
sub13503-63011
13505IDLER SUB-ASSY, TIMING BELT, NO.1
main13505-63010i198708-198711
sub13505-63011
main13505-63021i198711-198805
main13505-74010i198708-198810
sub13505-74011
main13505-74011i198810-198908
main13505-88360i198708-198908
sub13505-74030
13505ASPRING, TENSION(FOR IDLER)
main90506-18045i198708-198908
main90506-20039i198708-198805
main90506-20052i198708-198908
sub90507-20026
13511CAMSHAFT
main13501-63010i198708-198805
sub13501-63011
main13501-74020i198708-198908
main13501-79015i198708-198908
13523PPULLEY, CAMSHAFT TIMING
main13523-63010i198708-198712
main13523-63011i198712-198805
main13523-74020i198708-198908
main13523-88360i198708-198908
sub13523-88301
13558BRACKET, SPRING(FOR IDLER)
main13558-63010i198708-198805
13568BELT, TIMING
main13568-63020i198708-198805
sub13568-63022
main13568-74010i198708-198808
sub13568-74011
main13568-74011i198808-198908
sub13568-74012
main13568-88381i198708-198908
sub13568-88382
sub90506-18066
13711VALVE, INTAKE
main13711-63010i198708-198805
main13711-74020i198708-198908
main13711-88361i198708-198908
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02057i198708-198709
sub90913-02094
main90913-02062i198708-198908
INTAKE SIDE
main90913-02066i198708-198908
EXHAUST SIDE
main90913-02075i198709-198805
13711BSPRING, COMPRESSION(FOR INNER)
main90501-31003i198708-198908
main90501-32016i198708-198908
*54
sub90501-32022
main90501-33003i198708-198908
*53
sub90501-32009
main90501-45014i198708-198805
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
main90201-21002i198708-198805
13715VALVE, EXHAUST
main13715-63011i198708-198805
main13715-63021i198708-198805
NITTAN
sub13715-63011
main13715-74020i198708-198808
main13715-74050i198808-198908
sub13715-74020
main13715-88360i198708-198908
13741RETAINER, VALVE SPRING
main13741-16010i198708-198908
main13741-63010i198708-198805
main13741-88300i198708-198908
13741ALOCK, VALVE SPRING RETAINER
main90913-03005i198708-198805
main90913-03021i198708-198908
13750ADJUSTER ASSY, VALVE LASH
main13750-70010i198708-198805
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
main13811-63010i198708-198805
9010510031
main90105-10031
9010510032
main90105-10032
9151161040
main91511-61040
9161160612
main91611-60612

20 parts on this diagram · 3 diagrams in section
