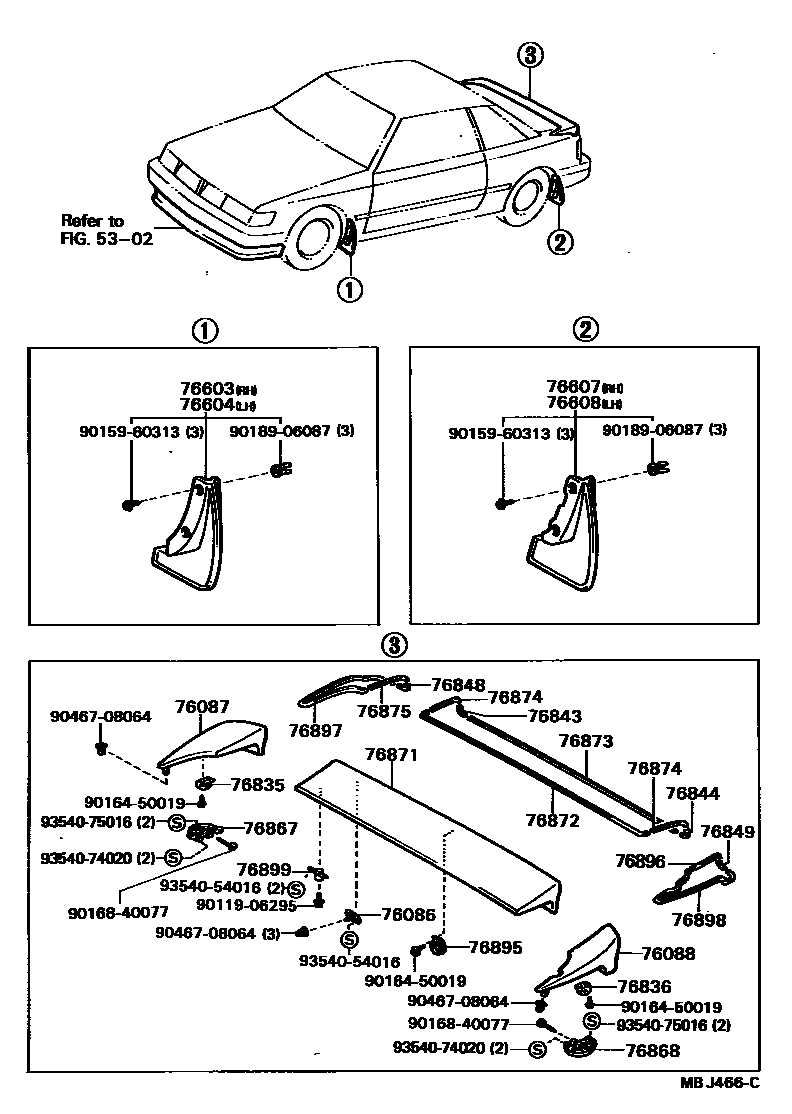

MUDGUARD & SPOILER

5302

76086RETAINER SUB-ASSY, REAR SPOILER

main76086-20080iAT160,ST16#198508-198708

76087SPOILER SUB-ASSY, REAR NO.1

main76087-20902iAT160,ST16#..EXS,GT198508-198708

76088SPOILER SUB-ASSY, REAR NO.2

main76088-20904iAT160,ST16#..EXS,GT198508-198708

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-29075iAT160,ST162198508-198708

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-29075iAT160,ST162198508-198708

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-29095iAT160,ST162198508-198708

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-29095iAT160,ST162198508-198708

76835RETAINER, REAR SPOILER SIDE, NO.1

main76835-20010iAT160,ST16#..EXS,GT198508-198708

76836RETAINER, REAR SPOILER SIDE, NO.2

main76836-20020iAT160,ST16#..EXS,GT198508-198708

76843PROTECTOR, REAR SPOILER, NO.11 RH

main76843-20020iAT160,ST16#..EXS,GT198508-198708

76844PROTECTOR, REAR SPOILER, NO.11 LH

main76844-20020iAT160,ST16#..EXS,GT198508-198708

76848PROTECTOR, REAR SPOILER, NO.12 RH

main76848-20020iAT160,ST16#..EXS,GT198508-198708

76849PROTECTOR, REAR SPOILER, NO.12 LH

main76849-20020iAT160,ST16#..EXS,GT198508-198708

76867RETAINER, REAR SPOILER SIDE, RH

main76867-20090iAT160,ST16#..EXS,GT198508-198708

76868RETAINER, REAR SPOILER SIDE, LH

main76868-20080iAT160,ST16#198508-198708

76871SPOILER, REAR

main76871-20902iAT160,ST16#198508-198708

76872PROTECTOR, REAR SPOILER, NO.1

main76803-20020iAT160,ST16#..EXS,GT198512-198708

main76872-20901iAT160,ST16#..EXS,GT198508-198512

sub76803-20020

76873PROTECTOR, REAR SPOILER, NO.2

main76873-20020iAT160,ST16#..EXS,GT198508-198708

76874PROTECTOR, REAR SPOILER, NO.3

main76874-20020iAT160,ST16#..EXS,GT198508-198708

76875PROTECTOR, REAR SPOILER, NO.4

main76875-20020iAT160,ST16#..EXS,GT198508-198708

sub76875-20021

76895PROTECTOR, REAR SPOILER, NO.5

main76895-20020iAT160,ST16#198508-198708

76896PROTECTOR, REAR SPOILER, NO.6

main76875-20020iAT160,ST16#..EXS,GT198508-198602

sub76875-20021

main76896-20040iAT160,ST16#..EXS,GT198602-198708

sub76896-20041

76897PROTECTOR, REAR SPOILER, SIDE RH

main76807-20020iAT160,ST16#198512-198708

main76897-20901iAT160,ST16#..EXS,GT198508-198512

sub76807-20020

76898PROTECTOR, REAR SPOILER, SIDE LH

main76808-20020iAT160,ST16#..EXS,GT198512-198708

main76898-20901iAT160,ST16#..EXS,GT198508-198512

sub76808-20020

76899PROTECTOR, REAR SPOILER, SIDE NO.6

main76899-20010iAT160,ST16#..EXS,GT198508-198708

9011906295

main90119-06295

9015960313

main90159-60313

9016450019

main90164-50019

9016840077

main90168-40077

9018906087

main90189-06087

9046708064

main90467-08064

9354054016

main93540-54016

9354074020

main93540-74020

9354075016

main93540-75016

35 parts on this diagram · 1 diagram in section
