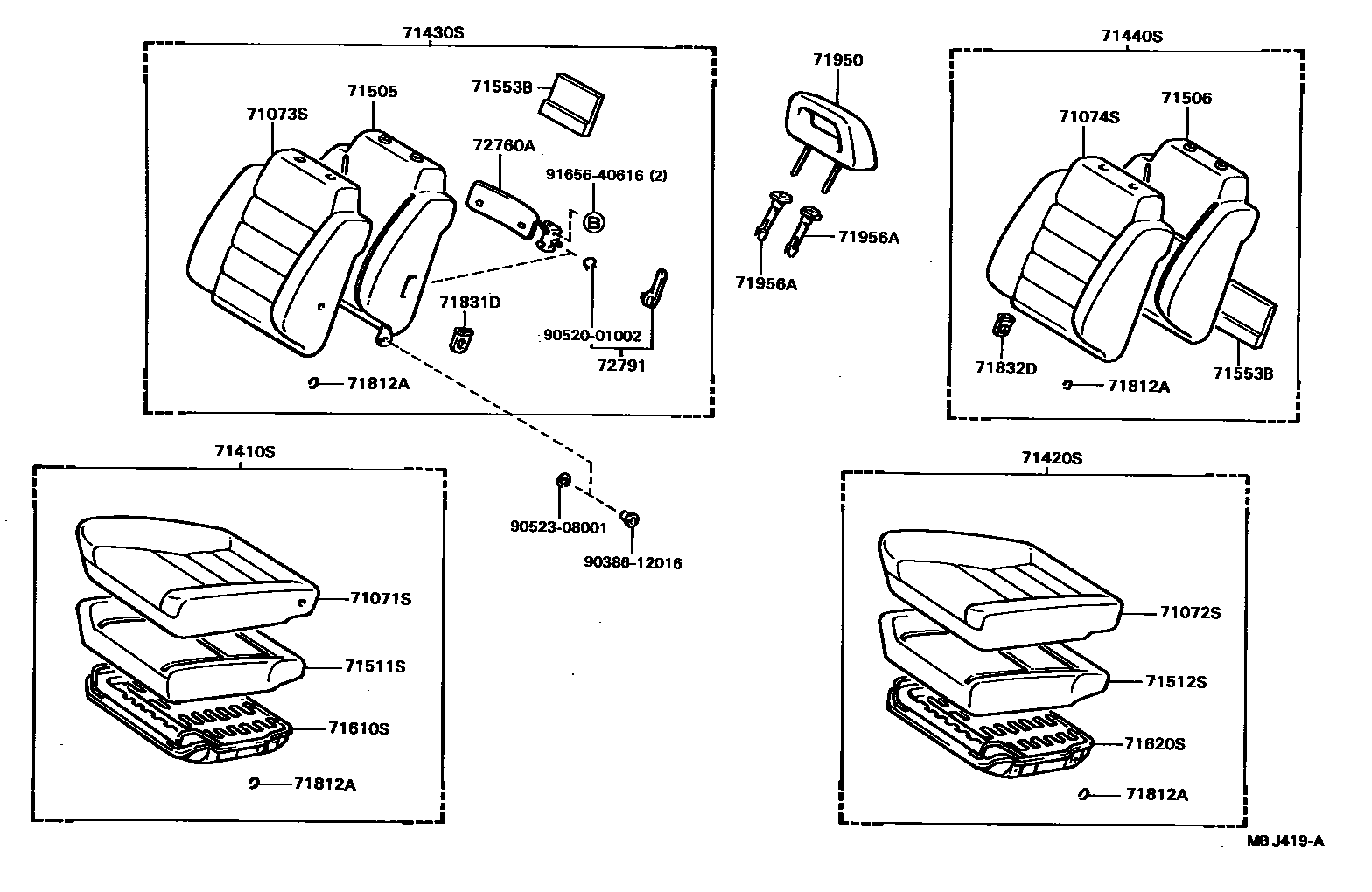

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-2B500-03iST160..GX198508-198605

FB,GRAY,SHADOW GRAY,TRIM1#

main71071-2B500-04iST160..GX198508-198605

FB,BLUE,DEEP BLUE,TRIM8#

main71071-2B501-03iST160..GX198605-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71071-2B501-04iST160..GX198605-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71071-2B510-03iST160..EXS198508-198605

FB,GRAY,SHADOW GRAY,TRIM1#

main71071-2B510-04iST160..EXS198508-198605

FB,BLUE,DEEP BLUE,TRIM8#

main71071-2B511-03iST160..EXS198605-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71071-2B511-04iST160..EXS198605-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71071-2B520-03iAT160,ST162198508-198605

FB,GRAY,SHADOW GRAY,TRIM1#

sub71072-2B250

main71071-2B520-04iAT160,ST162198508-198605

FB,BLUE,DEEP BLUE,TRIM8#

sub71072-2B250

main71072-2B250-03iST162198508-198605

W/8 WAY *SPS,FB,GRAY,SHADOW GRAY,TRIM1#

main71072-2B250-03iAT160,ST162198605-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71072-2B250-04iST162198508-198605

W/8 WAY *SPS,FB,BLUE,DEEP BLUE,TRIM8#

main71072-2B250-04iAT160,ST162198605-198708

FB,BLUE,DEEP BLUE,TRIM8#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-2B160-03iST160..GX198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71072-2B160-04iST160..GX198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71072-2B170-03iST160..EXS198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71072-2B170-04iST160..EXS198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71072-2B230-03iAT160,ST162198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71072-2B230-04iAT160,ST162198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-2B430-03iST160..GX198508-198605

FB,GRAY,SHADOW GRAY,TRIM1#

main71073-2B430-04iST160..GX198508-198605

FB,BLUE,DEEP BLUE,TRIM8#

main71073-2B431-03iST160..GX198605-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71073-2B431-04iST160..GX198605-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71073-2B460-03iST160..EXS198508-198605

FB,GRAY,SHADOW GRAY,TRIM1#

main71073-2B460-04iST160..EXS198508-198605

FB,BLUE,DEEP BLUE,TRIM8#

main71073-2B461-03iST160..EXS198605-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71073-2B461-04iST160..EXS198605-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71073-2B470-03iAT160,ST162198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71073-2B470-04iAT160,ST162198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-2B100-03iST160..GX198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71074-2B100-04iST160..GX198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71074-2B110-03iST160..EXS198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71074-2B110-04iST160..EXS198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71074-2B120-03iAT160,ST162198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71074-2B120-04iAT160,ST162198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-2B600-03iST160..GX198508-198605

FB,GRAY,SHADOW GRAY,TRIM1#

main71410-2B600-04iST160..GX198508-198605

FB,BLUE,DEEP BLUE,TRIM8#

main71410-2B601-03iST160..GX198605-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71410-2B601-04iST160..GX198605-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71410-2B610-03iST160..EXS198508-198605

FB,GRAY,SHADOW GRAY,TRIM1#

main71410-2B610-04iST160..EXS198508-198605

FB,BLUE,DEEP BLUE,TRIM8#

main71410-2B611-03iST160..EXS198605-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71410-2B611-04iST160..EXS198605-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71410-2B620-03iAT160,ST162198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71410-2B620-04iAT160,ST162198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71410-2B630-03iAT160,ST162198508-198708

W/8 WAY *SPS,FB,GRAY,SHADOW GRAY,TRIM1#

main71410-2B630-04iAT160,ST162198508-198708

W/8 WAY *SPS,FB,BLUE,DEEP BLUE,TRIM8#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-2B030-03iST160..GX198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71420-2B030-04iST160..GX198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71420-2B100-03iST160..EXS198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71420-2B100-04iST160..EXS198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71420-2B110-03iAT160,ST162198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71420-2B110-04iAT160,ST162198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-2B500-03iST160..GX198508-198605

FB,GRAY,SHADOW GRAY,TRIM1#

main71430-2B500-04iST160..GX198508-198605

FB,BLUE,BROWN,TRIM8#

main71430-2B501-03iST160..GX198605-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71430-2B501-04iST160..GX198605-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71430-2B570-03iST160..EXS198508-198605

FB,GRAY,SHADOW GRAY,TRIM1#

main71430-2B570-04iST160..EXS198508-198605

FB,BLUE,DEEP BLUE,TRIM8#

main71430-2B571-03iST160..EXS198605-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71430-2B571-04iST160..EXS198605-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71430-2B580-03iAT160,ST162198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71430-2B580-04iAT160,ST162198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71430-2B590-03iAT160,ST162198508-198708

W/8 WAY *SPS,FB,GRAY,SHADOW GRAY,TRIM1#

main71430-2B590-04iAT160,ST162198508-198708

W/8 WAY *SPS,FB,BLUE,DEEP BLUE,TRIM8#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-2B310-03iST160..GX198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71440-2B310-04iST160..GX198508-198708

FB,BLUE,BROWN,TRIM8#

main71440-2B320-03iST160..EXS198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71440-2B320-04iST160..EXS198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71440-2B330-03iAT160,ST162198508-198708

FB,GRAY,SHADOW GRAY,TRIM1#

main71440-2B330-04iAT160,ST162198508-198708

FB,BLUE,DEEP BLUE,TRIM8#

main71440-2B520-03iST162198508-198708

W/8 WAY *SPS,FB,GRAY,SHADOW GRAY,TRIM1#

main71440-2B520-04iST162198508-198708

W/8 WAY *SPS,FB,BLUE,DEEP BLUE,TRIM8#

71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH

main71505-20010iST160..GX198508-198605

main71505-20011iST160..GX198605-198708

main71505-20020iST160..EXS198508-198605

main71505-20021iST160..EXS198605-198708

71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH

main71506-20010iST160198508-198708

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-20400iST160198508-198708

main71511-20410iAT160,ST162198508-198708

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-20400iST160198508-198708

main71511-20410iAT160,ST162198508-198708

71553BPAD, FRONT SEATBACK, B

main71553-20110iST160198508-198708

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-20290iST160198508-198605

main71610-20350iAT160,ST162198508-198708

main71610-20380iST160198605-198708

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71610-20270iST160198508-198708

main71610-20300iAT160,ST162198508-198708

71812ARING, HOG, SMALL (FOR FRONT SEAT)

main90468-18071iAT160,ST16#198508-198708

sub90468-18008

71831DCOVER, FRONT SEAT HINGE, RH

main71831-10010iST160198508-198708

71832DCOVER, FRONT SEAT HINGE, LH

main71831-10010iST160198508-198708

71950HEADREST ASSY, FRONT SEAT

main71910-20530-03iST160..EXS198508-198708

GRAY,SHADOW GRAY,TRIM1#

main71910-20530-04iST160..EXS198508-198708

BROWN,DEEP BLUE

main71910-20540-03iAT160,ST162198508-198708

GRAY,SHADOW GRAY,TRIM1#

main71910-20540-04iAT160,ST162198508-198708

BLUE,DEEP BLUE,TRIM8#

main71910-20690-03iST160..GX198508-198708

GRAY,SHADOW GRAY,TRIM1#

main71910-20690-04iST160..GX198508-198708

BLUE,DEEP BLUE,TRIM8#

71956ASUPPORT, FRONT SEAT HEADREST

main71930-10060-01iST160198508-198708

sub71930-10060

main71930-10060-44iST160198508-198708

sub71930-10060

main71930-14080-01iAT160,ST162198508-198708

sub71930-14080

main71930-14080-14iAT160,ST162198508-198708

sub71930-14080

main71931-10010-01iST160198508-198708

sub71931-10010

main71931-10010-44iST160198508-198708

sub71931-10010

main71931-14010-01iAT160,ST162198508-198708

sub71931-14010

main71931-14010-14iAT160,ST162198508-198708

sub71931-14010

72760AADJUSTER ASSY, LUMBAR SUPPORT

main72750-20050iST160..EXS198508-198708

main72750-20070iAT160,ST162198508-198708

72791LEVER, LUMBAR SUPPORT

main72791-20030-03iST160..EXS198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub72791-20030

main72791-20030-04iST160..EXS198508-198708

BLUE,DEEP BLUE,TRIM8#

sub72791-20030

9038612016

main90386-12016

9052001002

main90520-01002

9052308001

main90523-08001

9165640616

main91656-40616

26 parts on this diagram · 4 diagrams in section
