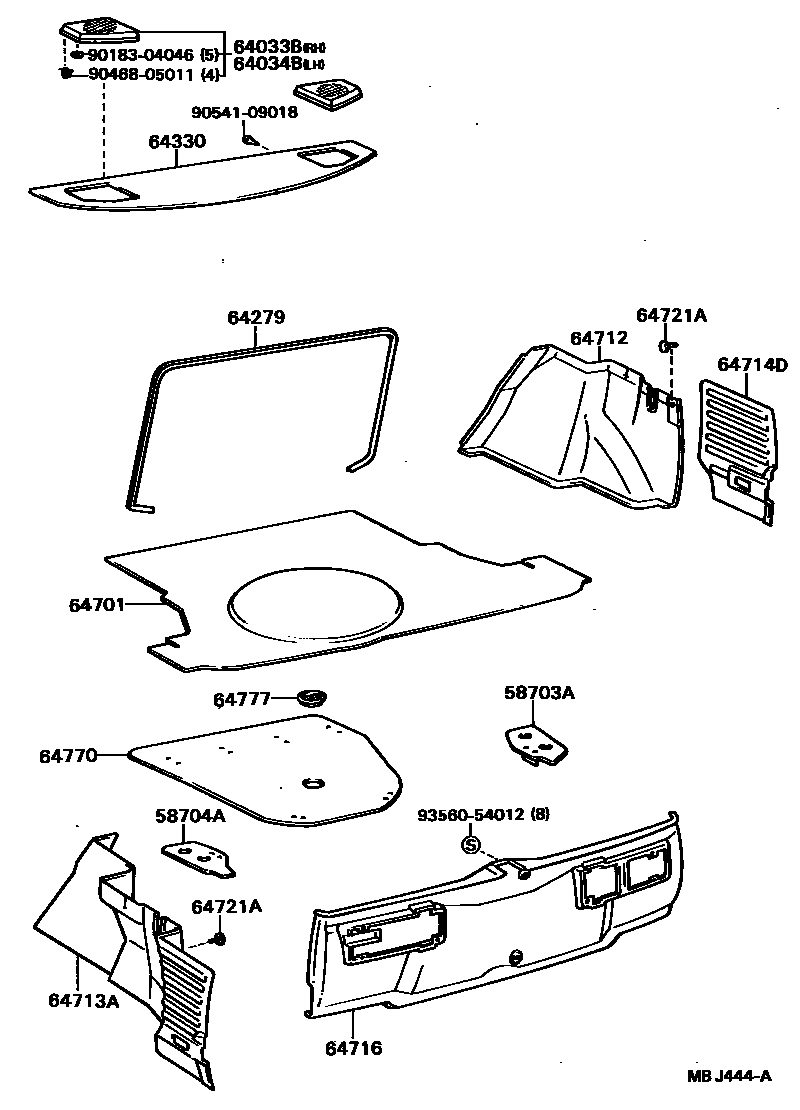

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-20080iAT160,ST16#198508-198708

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-20040iAT160,ST16#198508-198708

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-20020-03iAT160,ST16#..EXS,GT198508-198708

GRAY,SHADOW GRAY,TRIM1#

main64033-20020-04iAT160,ST16#..EXS,GT198508-198708

BLUE,DEEP BLUE,TRIM8#

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64034-20020-03iAT160,ST16#..EXS,GT198508-198708

GRAY,SHADOW GRAY,TRIM1#

main64034-20020-04iAT160,ST16#..EXS,GT198508-198708

BLUE,DEEP BLUE,TRIM8#

64279PROTECTOR, ROOM PARTITION

main64279-20030-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main64279-20030-04iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-20670-03iAT160,ST16#..EXS,GT198508-198708

W/*SPG,GRAY,SHADOW GRAY,TRIM1#

main64330-20670-04iAT160,ST16#..EXS,GT198508-198708

W/*SPG,BLUE,DEEP BLUE,TRIM8#

main64330-20770-03iAT160,ST16#..GT,GX198508-198708

W/O *SPG,GRAY,SHADOW GRAY,TRIM1#

main64330-20770-04iAT160,ST16#..GT,GX198508-198708

W/O *SPG,BLUE,DEEP BLUE,TRIM8#

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-20320iAT160,ST16#198508-198708

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-20110iAT160,ST16#..GT,GX198508-198708

main64712-20120iST162198508-198708

GT-R

64713ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64072-20090iAT160,ST16#..GT,GX198508-198708

main64072-20100iST162198508-198708

GT-R

64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH

main64714-20200iAT160,ST16#..GT,GX198508-198708

main64714-20210iST162198508-198708

GT-R

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-20150iAT160,ST16#..GT,GX198508-198708

main64716-20170iST162198508-198708

GT-R

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07042-01×2iAT160,ST16#198508-198708

BLACK,BLACK

sub90467-06175

64770COVER ASSY, SPARE WHEEL

main64770-20070iAT160,ST16#198508-198605

main64770-20080iAT160,ST16#198605-198708

64777CLAMP, SPARE WHEEL COVER

main64777-32020iAT160,ST16#198508-198612

main64777-32030iAT160,ST16#198612-198708

9018304046

main90183-04046

9046805011

main90468-05011

9054109018

main90541-09018

9356054012

main93560-54012

18 parts on this diagram · 1 diagram in section
