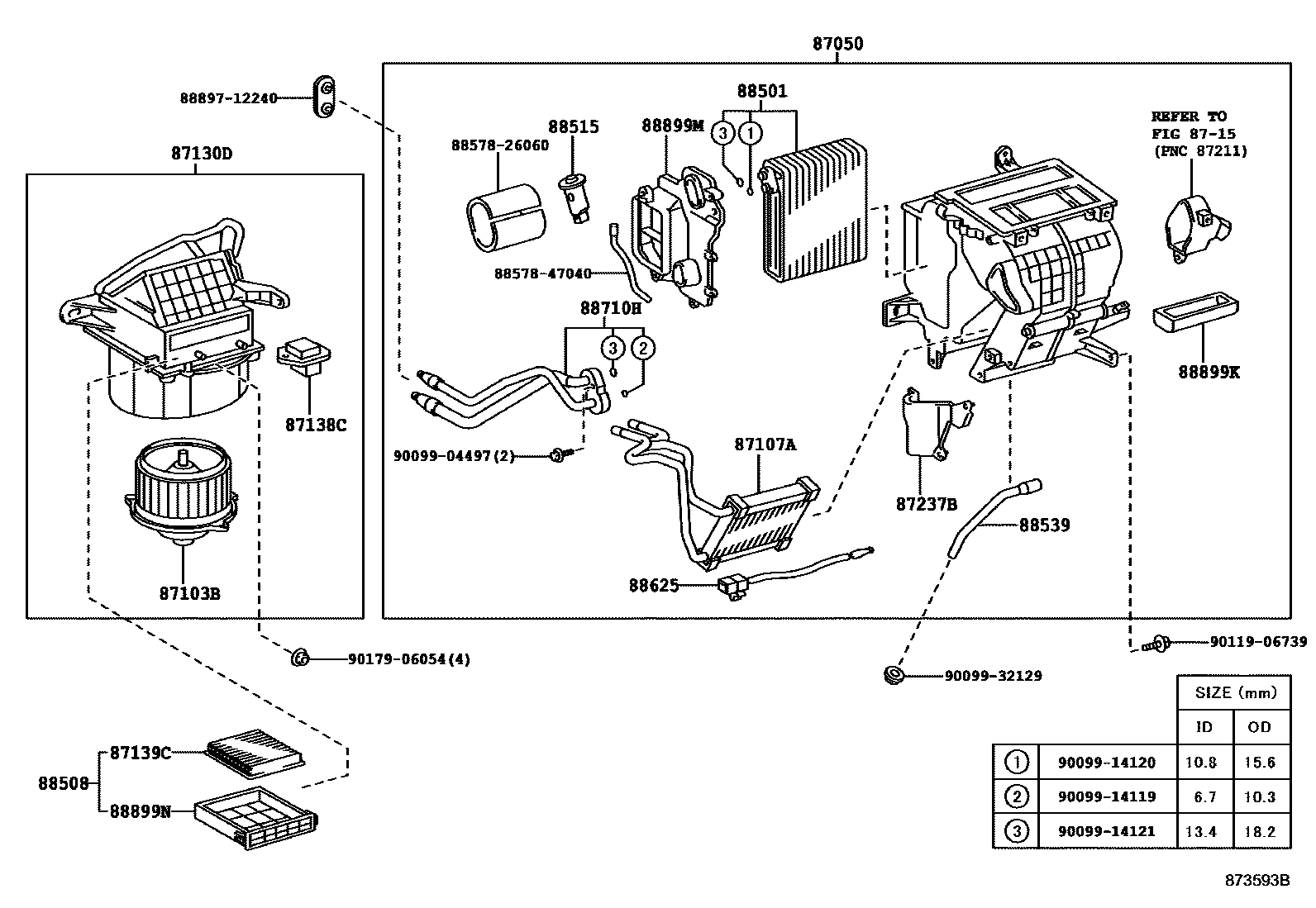

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1����� ���� 0002 1����� ���� 0003 1�-� ���� 0004 1�-� ����

87050RADIATOR ASSY, AIR CONDITIONER

main87050-20440iZZT23#¥106,000199908-200604

main87050-20450iZZT23#¥84,800199908-200604

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-20120iZZT23#199908-200106

sub87103-20150

main87103-20150iZZT23#200106-200604

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-20670iZZT23#199908-200604

87130DBLOWER ASSY

main87130-20600iZZT23#199908-200604

main87130-20610iZZT23#199908-200604

87138CRESISTOR, BLOWER

main87138-20350iZZT23#¥0199908-200604

87139CFILTER, CLEAN AIR

main87139-28010iZZT23#¥2,000199908

main87139-47020iZZT23#¥4,000199908

8715

87237BCOVER, HEATER PIPING

main87237-20010iZZT23#199908-200604

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-20490iZZT23#199908-200604

88508FILTER SUB-ASSY, CLEAN AIR

main88508-20120iZZT23#¥2,300199908-200208

88515VALVE, COOLER EXPANSION

main88515-28160iZZT23#¥10,200200310-200604

main88515-48040iZZT23#¥10,200199908-200310

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-20300iZZT23#199908-200604

88625THERMISTOR, COOLER, NO.1

main88625-20510iZZT23#199908-200604

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-20780iZZT23#¥12,600199908-200604

88899KPLATE, COVER

main88899-47030iZZT23#199908-200208

88899MPLATE, COVER(FOR AIR FILTER)

main88899-20300iZZT23#199908-200604

88899NPLATE, COVER

main88899-41010iZZT23#199908-200208

8857826060PAKING, COOLER AIR DUCT

main88578-26060

8857847040PAKING, COOLER AIR DUCT

main88578-47040

8889712240VALVE, COOLER MAGNET

main88897-12240

9009904497

main90099-04497¥280

9009914119

main90099-14119

9009914120

main90099-14120¥0

9009914121

main90099-14121

9009932129

main90099-32129

9011906739

main90119-06739¥100

9017906054

main90179-06054¥100

27 parts on this diagram · 4 diagrams in section
